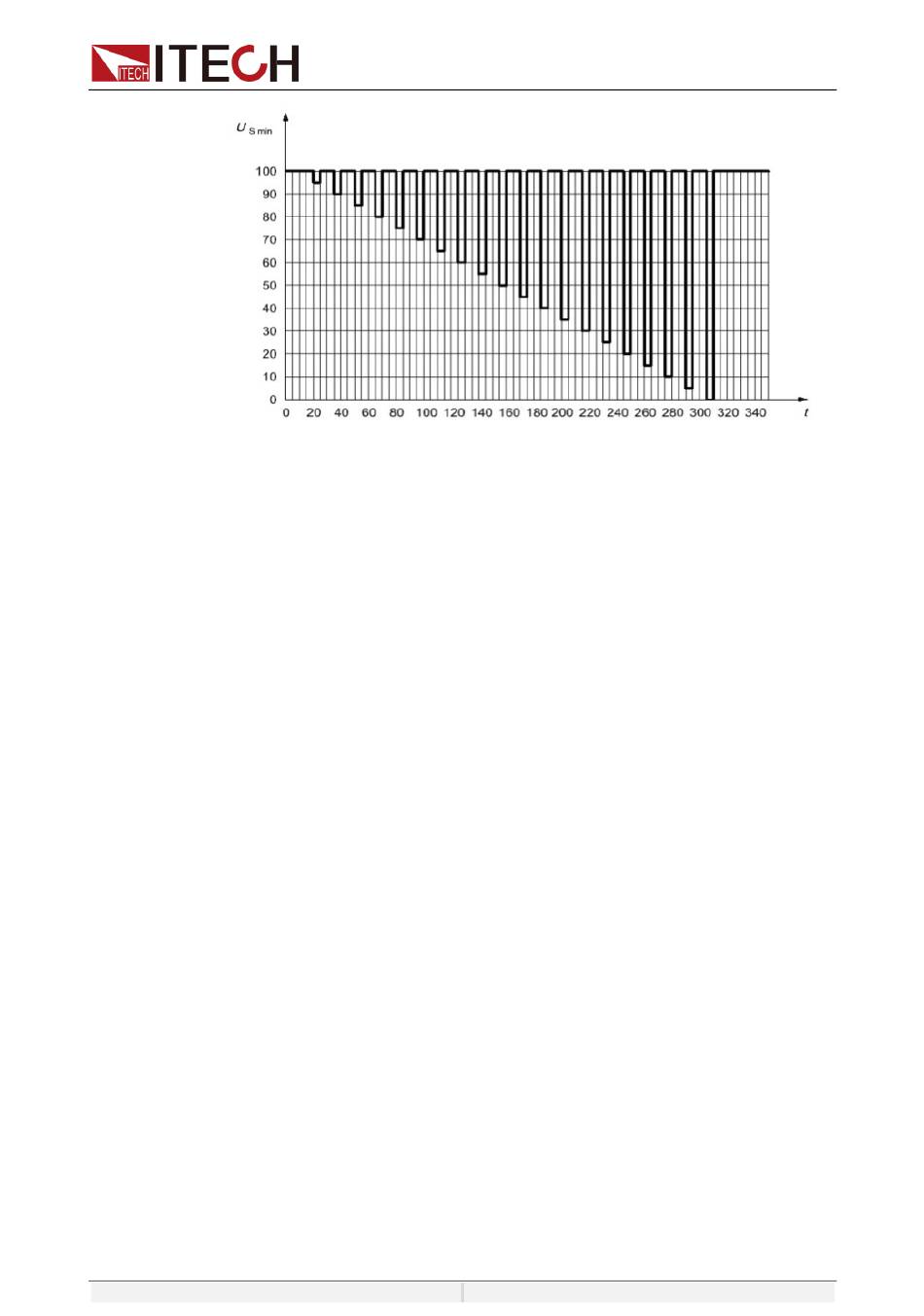

How to recall this waveform from menu is as below:
1.
Click Vehicle on the Menu screen to enter the vehicle test screen.
1) Press the up/down key to move the cursor to the Standards function
2) Press the up/down key to move the cursor to the Mode function setting
3) Press the up/down key to move the cursor to the Usmin function setting
2.
Press [On/Off] on the front panel, turn on the output.
3.
Press [Run] in the Vehicle function interface to output the voltage waveform.
Starting Waveform
Simulates the effects of rippled DC voltage on DC power when the car is started.
From the constant voltage line in the original standard DIN40839 voltage
waveform, the voltage curve in t8 duration is upgraded to a curve containing a
2Hz AC voltage waveform.
setting and press the [Enter] key to confirm. Rotate the knob to select
ISO16750-2 and press the [Enter] key to confirm.
and press the [Enter] key to confirm. Rotate the knob to select Reset-
Test and press the [Enter] key to confirm.
and press the [Enter] key to confirm. Press the numeric keys to set the
startup voltage as V=340V and press [Enter] to confirm.
Copyright ©ITECH Electronic Co., Ltd.
Power Supply Function
65
