Take LV148 E-01a (long-term overvoltage test pulse) as an example to introduce
how to use this function.
1. Click Vehicle on the Menu screen to enter the vehicle test screen.
1) Press the up/down key to move the cursor to the Standards function
2) Press the up/down key to move the cursor to the Testings function
3) Press the up/down key to move the cursor to the Testcase function
2. Press [Run] in the Vehicle function interface.
3. Press [On/Off] on the front panel, turn on the output.
4. According
[Shift]+[5](Trigger) to trigger the output of the waveform.
4.7.8 ISO21780
TEST-01
The purpose of this test is to verify the component functionality in the nominal
voltage range.

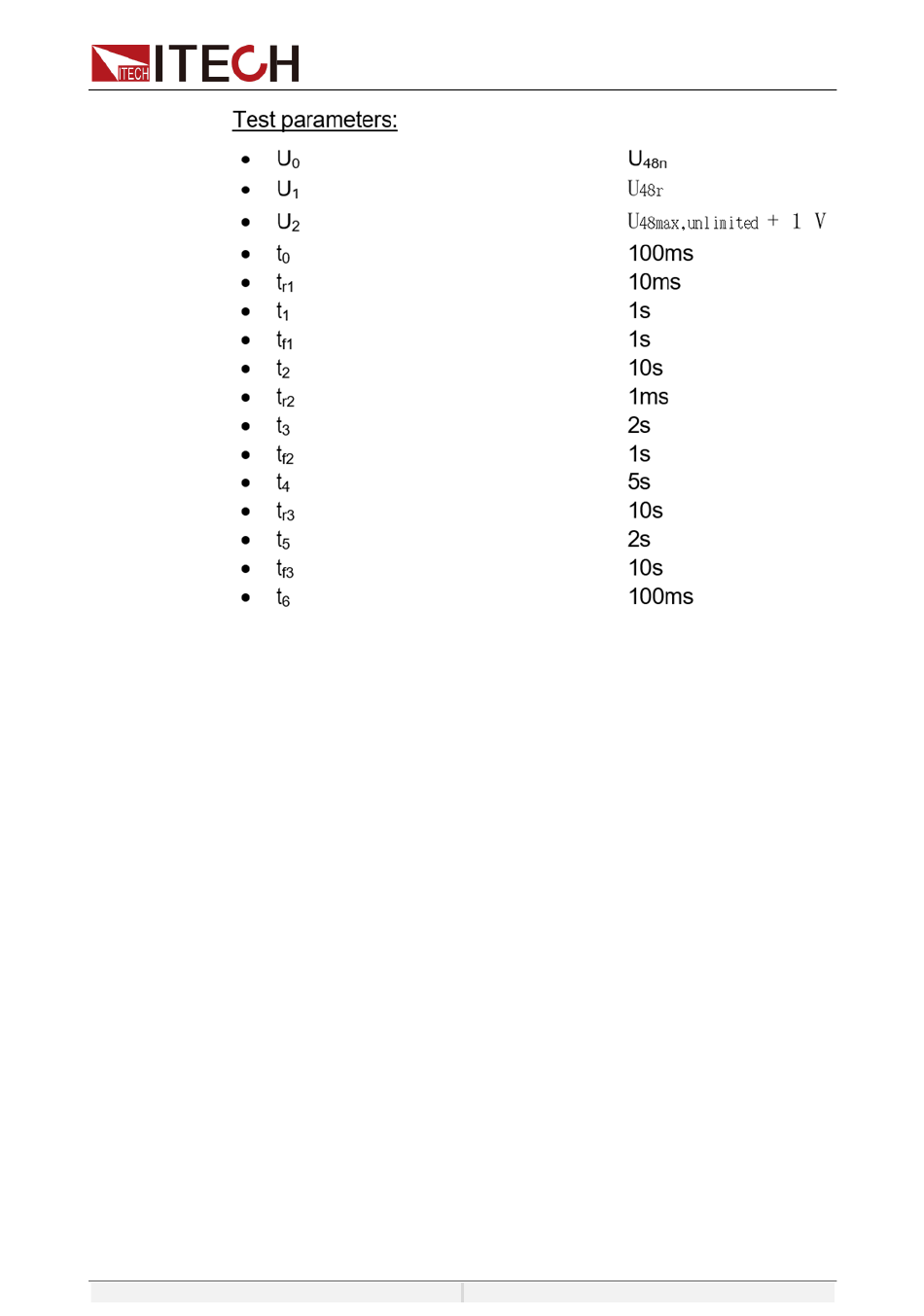

The waveform is as follows:
setting and press the [Enter] key to confirm. Rotate the knob to select
LV148 and press the [Enter] key to confirm.
setting and press the [Enter] key to confirm. Rotate the knob to select
E-01a and press the [Enter] key to confirm.
setting and press the [Enter] key to confirm. Rotate the knob to select
Standard and press the [Enter] key to confirm.
to the selected
