front panel to capture and save the current screen into the USB disk.
When you need the screen capture function, the USB type under the system
menu needs to be set to Host.
5.7 Query the System Log
The IT6600 series power supply provides the system operation Log query
function. On the Menu interface of the front panel of the instrument, click Log or
directly press [Shift]+[1](Log) to enter the Log query interface. You can view
historical system operation records on this screen.
5.8 Multi-units operation
5.8.1 Series Operation(single-unit)
The IT6600 power supply can increase its output voltage and power by
connecting the two channels of a single instrument in series. When connected
in series, the upper limit of the voltage setting range is twice the rated value of
a single channel, and the instrument is used as a single channel power supply
at this time.
Operation steps
1.
Set the two channels of the power supply to Series mode.
a) Press the composite keys [Shift] + [P-set] (System) on the front panel
b) Select the Source tab, then press the up/down key or rotate the knob
c)
2.

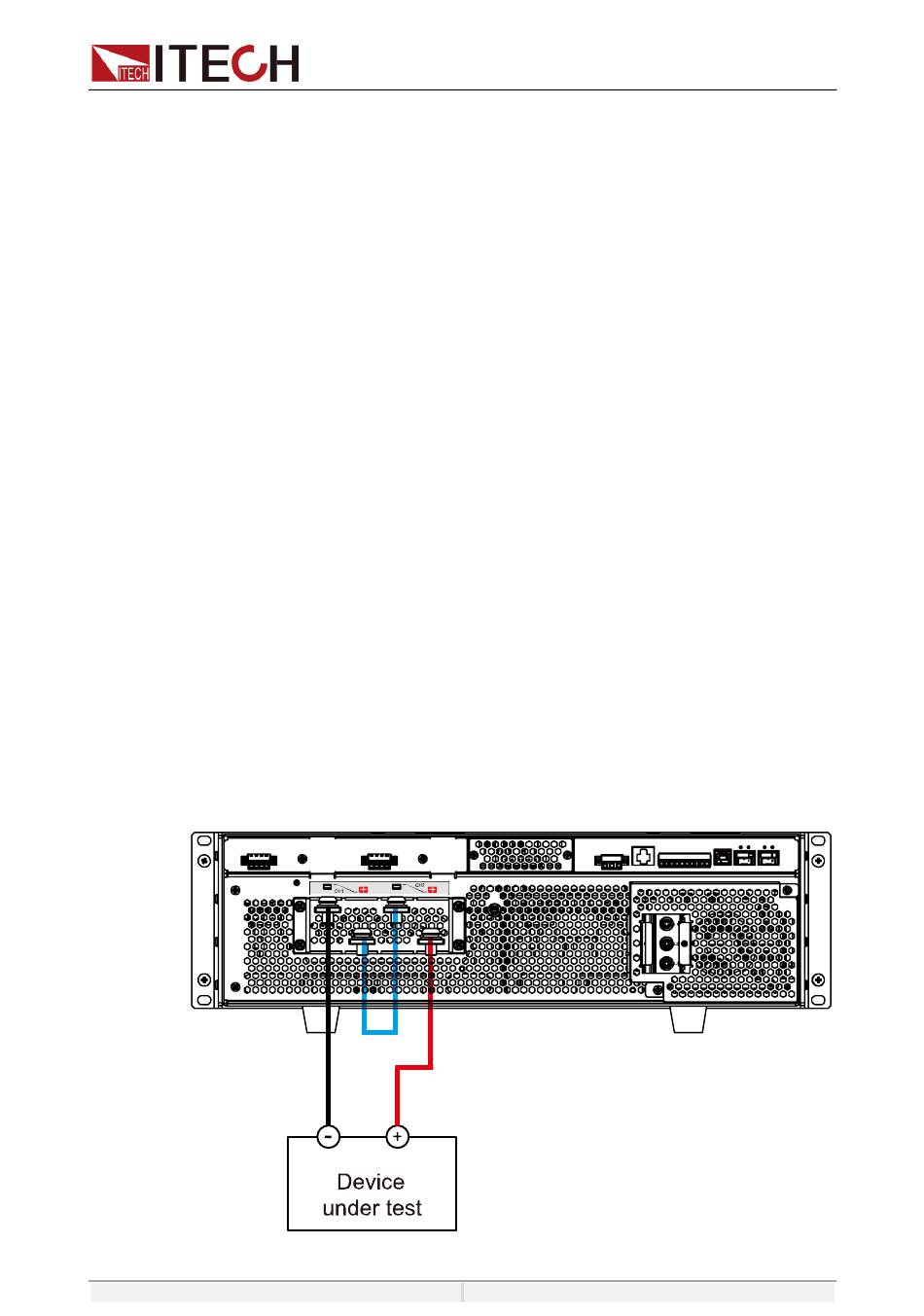

Refer to the figure below to connect the DUT, and live wiring is prohibited.
to enter the system menu.
to find Output Mode menu.
Press the up/down key to move the cursor to the Mode function setting
and press the [Enter] key to confirm. Rotate the knob to set Series
output mode, and press the [Enter] key to confirm.
Local sense
Copyright ©ITECH Electronic Co., Ltd.
System-Related Functions
139
