4) Press the up/down key to move the cursor to the Td function setting
5) Press the up/down key to move the cursor to the U
2. Press [Run] in the Vehicle function interface.
3. Press [On/Off] on the front panel, turn on the output.
4. According
[Shift]+[5](Trigger) to trigger the output of the waveform.
4.7.3 ISO21848
A test wave completely conforming to International Standard ISO21848 is built
inside the device, which can be used for the test of Electrical and electronic
equipment for a supply voltage of 42V - Electrical loads. The user can directly
and quickly recall this function during test.
U test pulse
max,dyn
Detect the function when the DUT is under maximum dynamic Voltage U
and simulate the maximum dynamic Voltage of high-energy pulse raised from
throw load in 42V electrical system, where the upper limit is the protection
voltage of throw load.

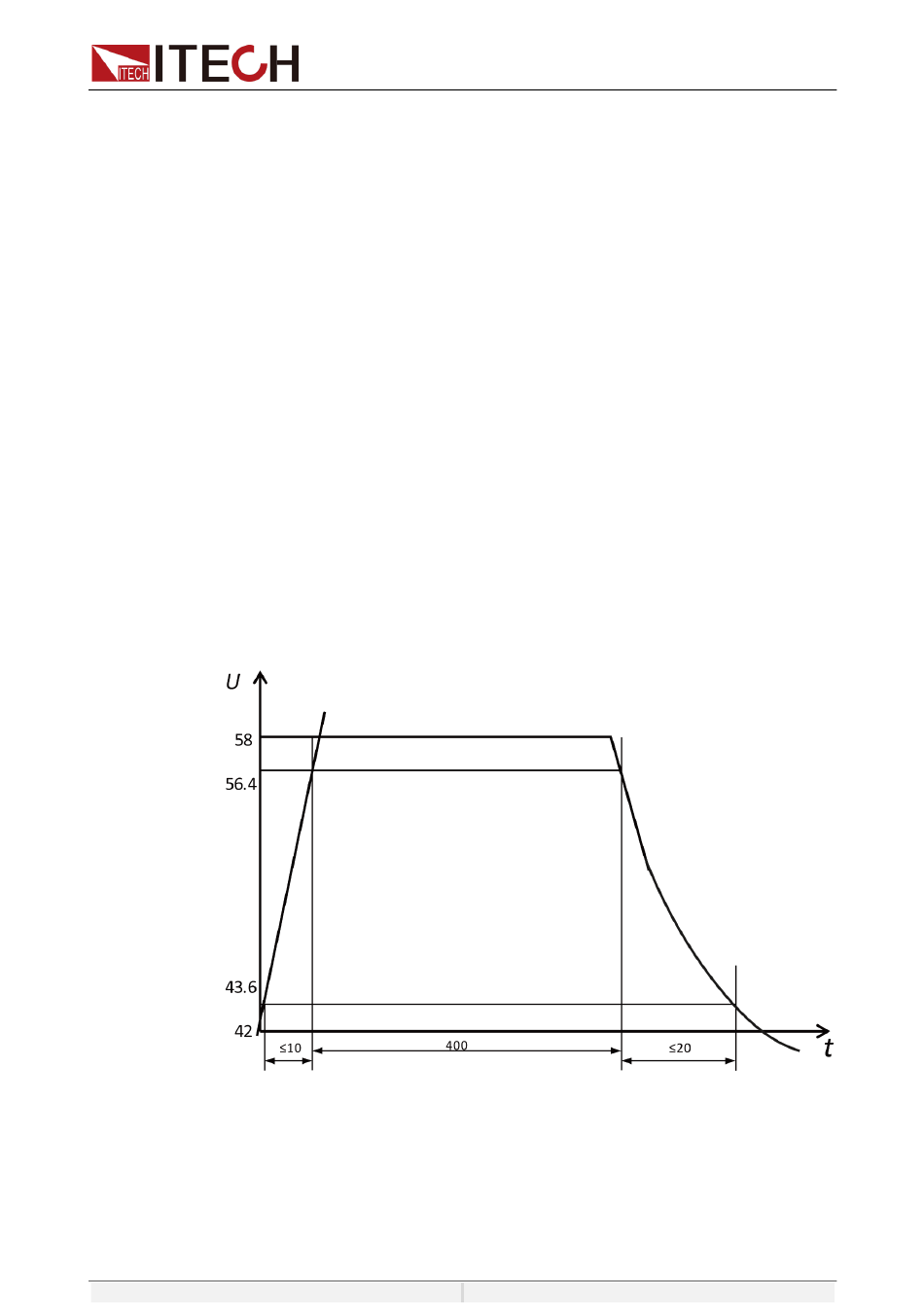

Apply 1 test pulse to the DUT, as shown below:

t: time (in ms)

U: Voltage (in V)
Supply Voltage Transient Drop (Momentary-Drop)
Simulate the affect from short circuit when fuse element of another circuit is melt.
Detect the function status of the DUT at transient drop of Voltage.
keys to set the voltage as V=12V and press [Enter] to confirm.
and press the [Enter] key to confirm. Rotate the knob to set the duration
of pulse and press the [Enter] key to confirm.
press the [Enter] key to confirm. Rotate the knob to set the peak
voltage and press the [Enter] key to confirm.
to the selected
