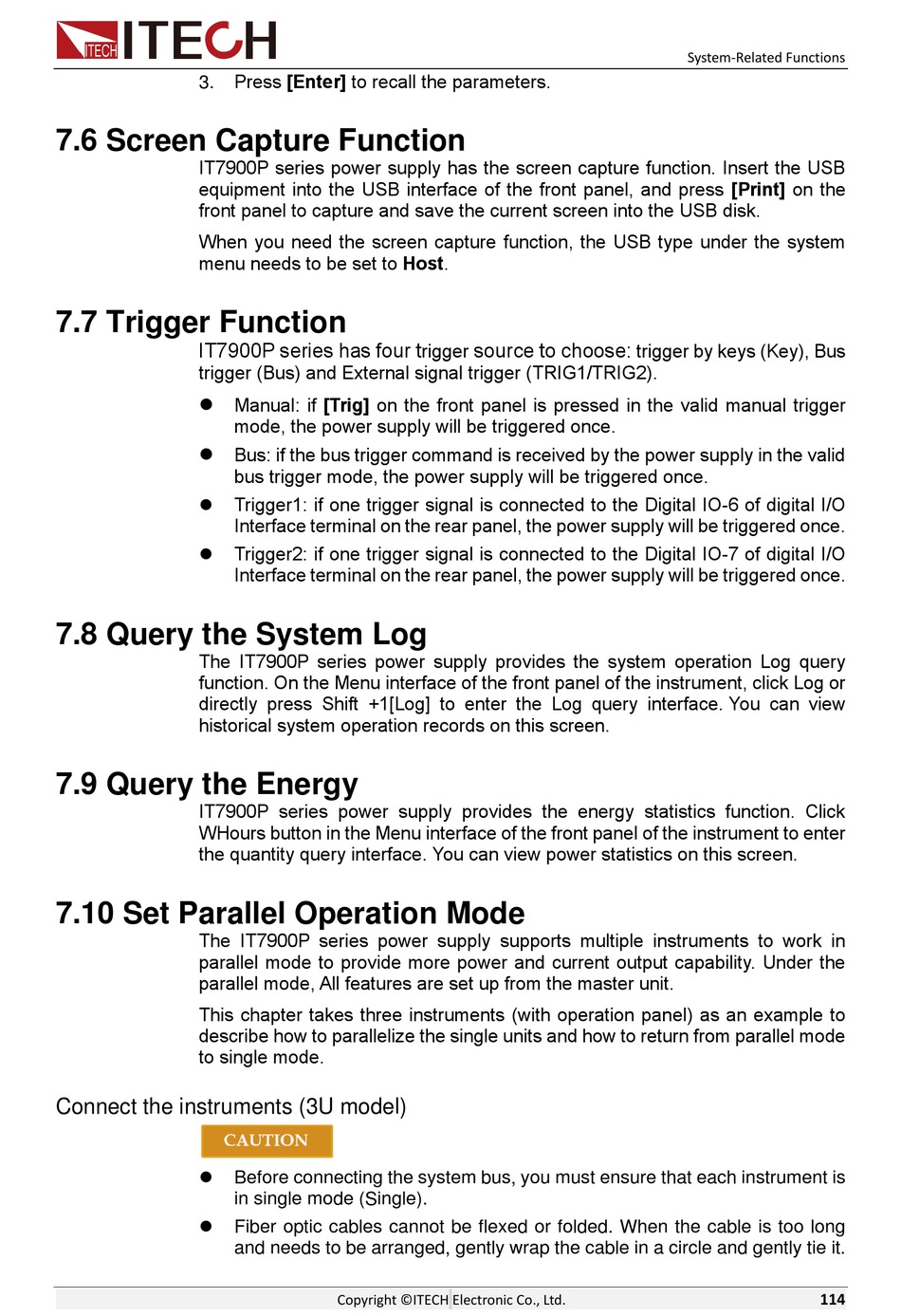

3.

7.6 Screen Capture Function

IT7900P series power supply has the screen capture function. Insert the USB
equipment into the USB interface of the front panel, and press [Print] on the
front panel to capture and save the current screen into the USB disk.
When you need the screen capture function, the USB type under the system
menu needs to be set to Host.

7.7 Trigger Function

IT7900P series has four t
trigger (Bus) and External signal trigger (TRIG1/TRIG2).
⚫
⚫
⚫
⚫

7.8 Query the System Log

The IT7900P series power supply provides the system operation Log query
function. On the Menu interface of the front panel of the instrument, click Log or
directly press Shift +1[Log] to enter the Log query interface. You can view
historical system operation records on this screen.

7.9 Query the Energy

IT7900P series power supply provides the energy statistics function. Click
WHours button in the Menu interface of the front panel of the instrument to enter
the quantity query interface. You can view power statistics on this screen.

7.10 Set Parallel Operation Mode

The IT7900P series power supply supports multiple instruments to work in
parallel mode to provide more power and current output capability. Under the
parallel mode, All features are set up from the master unit.
This chapter takes three instruments (with operation panel) as an example to
describe how to parallelize the single units and how to return from parallel mode
to single mode.
Connect the instruments (3U model)
⚫
⚫
Press [Enter] to recall the parameters.
Manual: if [Trig] on the front panel is pressed in the valid manual trigger
mode, the power supply will be triggered once.
Bus: if the bus trigger command is received by the power supply in the valid
bus trigger mode, the power supply will be triggered once.
Trigger1: if one trigger signal is connected to the Digital IO-6 of digital I/O
Interface terminal on the rear panel, the power supply will be triggered once.
Trigger2: if one trigger signal is connected to the Digital IO-7 of digital I/O
Interface terminal on the rear panel, the power supply will be triggered once.
Before connecting the system bus, you must ensure that each instrument is
in single mode (Single).
Fiber optic cables cannot be flexed or folded. When the cable is too long
and needs to be arranged, gently wrap the cable in a circle and gently tie it.
Copyright ©ITECH Electronic Co., Ltd.
source to choose:
rigger
System-Related Functions
trigger by keys (Key), Bus
