4.3

Electrical connections

4.3.1

Light Source

The light source is supplied with power by the receiver.

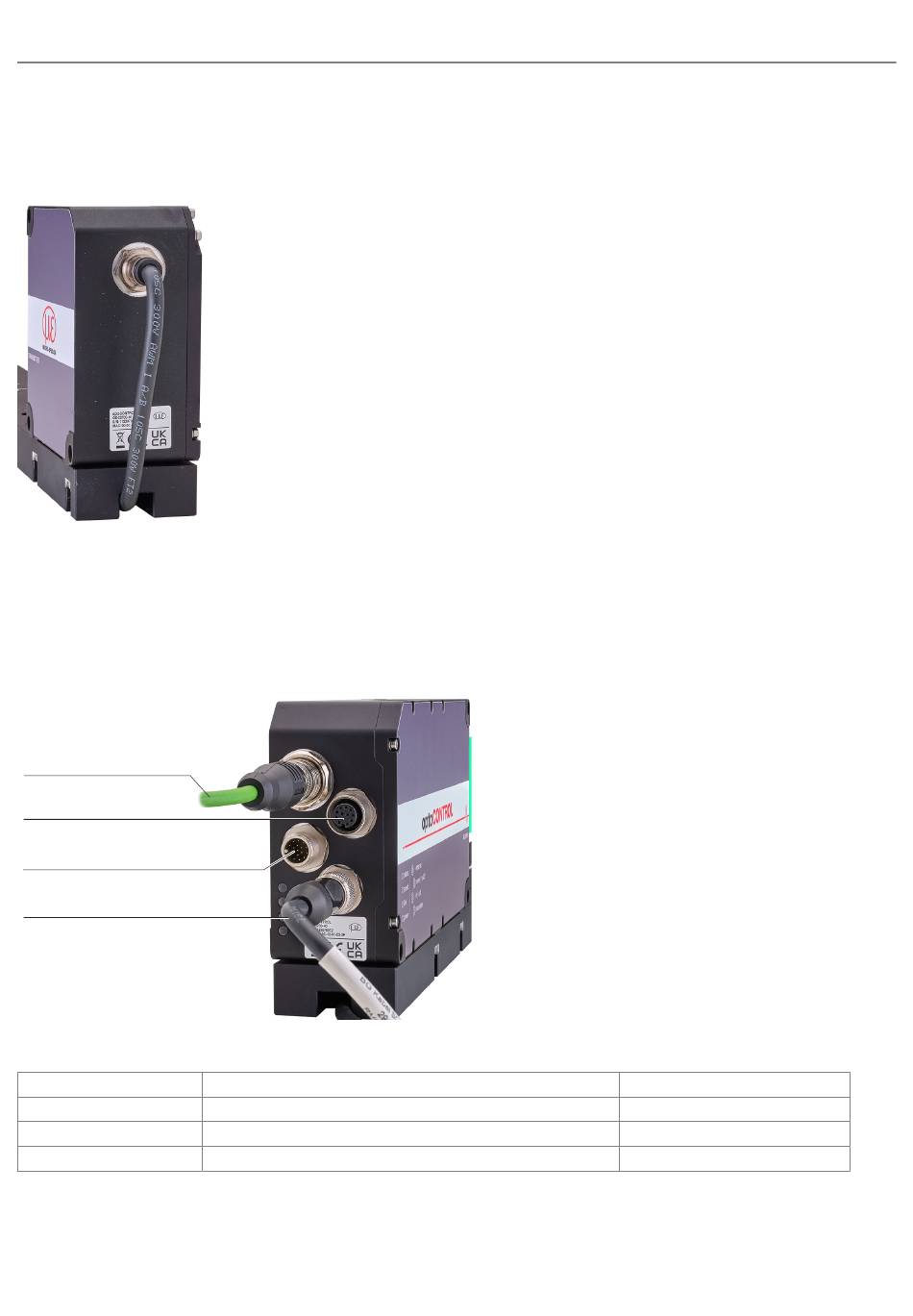

Fig. 4.11: Integrated Power Supply Cable on Light Source
► Connect the integrated cable of the light source to the receiver before switching on the power supply.
4.3.2

Receiver

The connection sockets are labeled on both sides of the receiver housing.
4pol M12 Buchse Ethernet 4pol M12 female connector
Ethernet
12pol M12 female connector 12pol M12 Buchse
Versorgung, RS422, Synchronisation Power supply, RS422, Synchronization
17pol M12 male connenctor 17pol M12 Stecker
Analog output, I/O Analogausgang, I/O (Trigger, Encoder)
Anschluss Lichtquelle Connection light source
Fig. 4.12: Electrical connections of receiver
Housing screen printing
ethernet
power / rs422
in / out
optoCONTROL 2700
Signal(s)
Ethernet
Supply, RS422, Synchronization
Analog output, switching outputs, function inputs
Installation and Assembly
Optional cable
SCD2700-5 M12
PC/SC2700-x
SCA2700-x
