Data Recording

6.3.1

The width of the measuring line can be adapted to the requirements of the measurement task. One pixel corresponds to

approx. 22 µm.

Narrow measuring line: Measurements close to steps

●

Empfänger

Receiver

-5

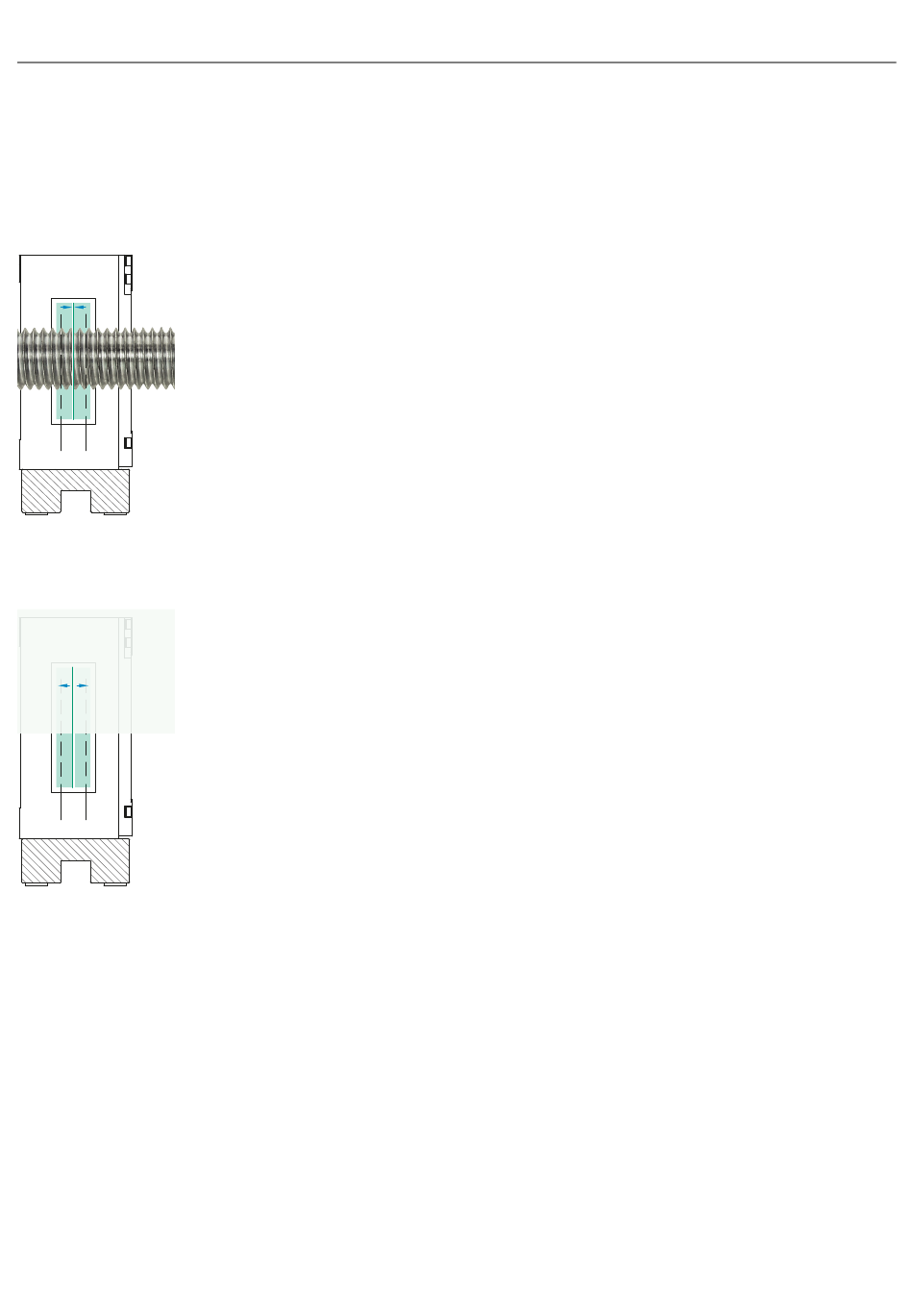

Fig. 6.5: Narrow Measuring Line for Measurements on Steep Edges and Corners, e.g., for Measurements on Threaded

Rods

Wide measuring line: Reduces signal noise

●

Receiver

-5

Fig. 6.6: Wide Measuring Line, e.g., Edge Tracing on a Paper Web

Changing the Width of the Measuring Line

►

Switch to the tab

Settings

measurement task.

optoCONTROL 2700

Data acquisition

Measuring line width

Advanced Settings

and select a suitable width for the

Seite 42
