4

Installation and Assembly

4.1

General

The optoCONTROL sensor is an optical system used to measure in the µm range.
i Ensure careful handling during installation and operation.
Do not touch the optical windows.
> Functionality impaired due to soiling.
No sharp or heavy objects should be allowed to affect the cables. Avoid folding the cables.
> Damage or destruction of the cables, failure of the measuring device.
Observe the minimum bending radii of 60 mm.
Only attach the sensor using the existing holes on a flat surface. Any type of clamping is not permitted.
> Inaccurate or incorrect measurements
The connection cables between the light source and receiver and the Ethernet cable are not drag chain-
compatible.
4.2

Light Source and Receiver

4.2.1

Dimensions

72 (2.83) 72
Light source Lichtquelle
80 (3.15) 80

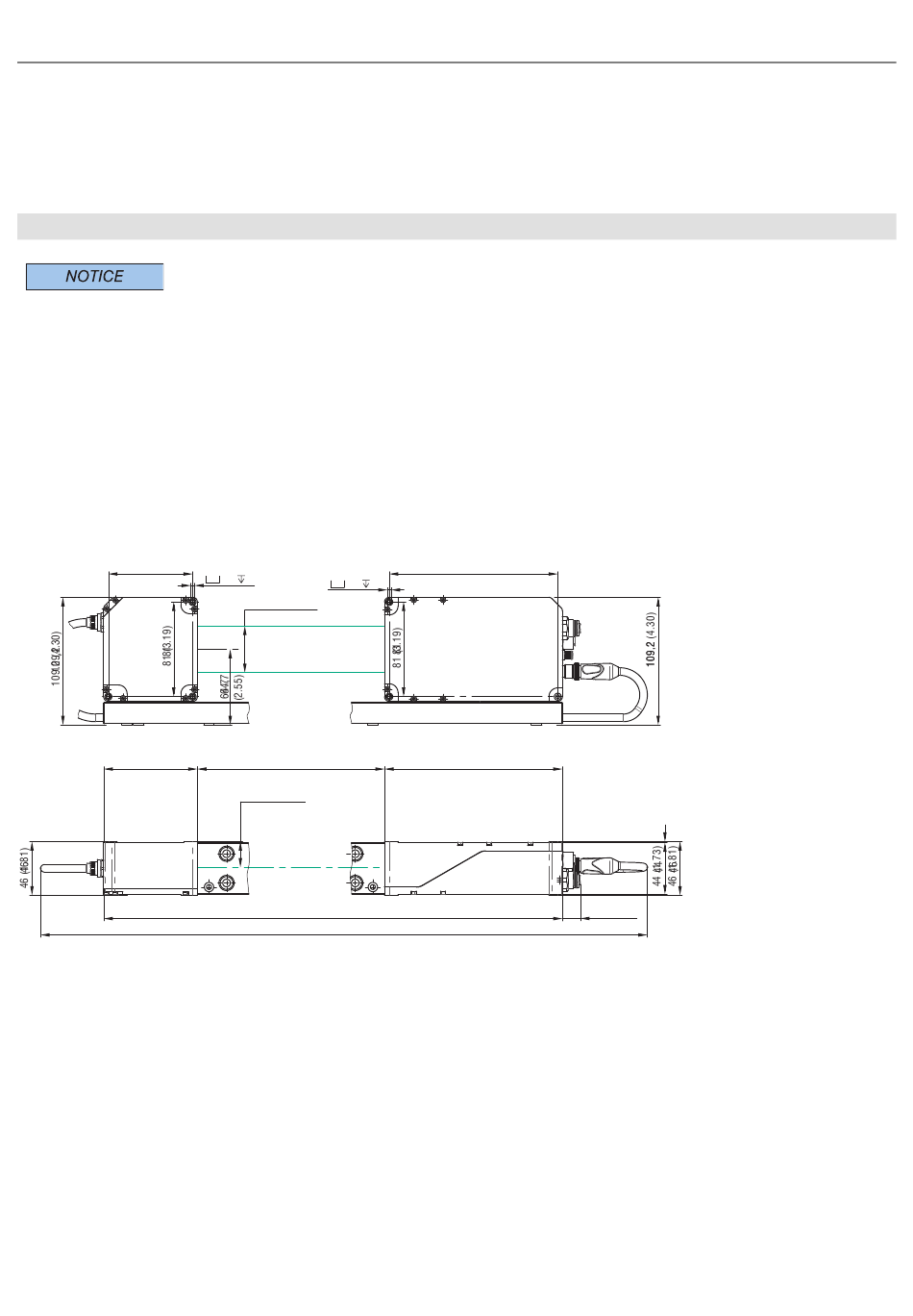

Fig. 4.1: Dimensional Drawing of Light Source and Receiver, Dimensions Stated in mm
optoCONTROL 2700
3x M4
3x M4
ø6 4
ø6 4
Messbereich 40 Measuring
range 40 (1.57)
EMR MBE
Light curtain Lichtvorhang
MBA SMR
300 300 (11.8)
Messebene 22 Measurement
plane 22 (.87)
532 (20.9) 532
(658,5) 658.5 (25.9)
144 (5.67) 144
Receiver Empfänger
152 (5.98) 152
15.3 (.60) 15,3
