Block Diagram - MICRO-EPSILON optoCONTROL 2700 Operating Instructions Manual

Falling edge measuring program: The sensor searches for a light-dark transition.
Light source
Target
Fig. 2.3: Edge Assignment with Falling Edge Measuring Program
Rising edge measuring program: The sensor searches for a dark-light transition
Light source
Target
Fig. 2.4: Edge Assignment with Rising Edge Measuring Program
i The
search direction
ta acquisition) affect the analog and digital outputs by changing the edge assignment.
2.3

Block Diagram

ODC 2700
Light
Light curtain
source

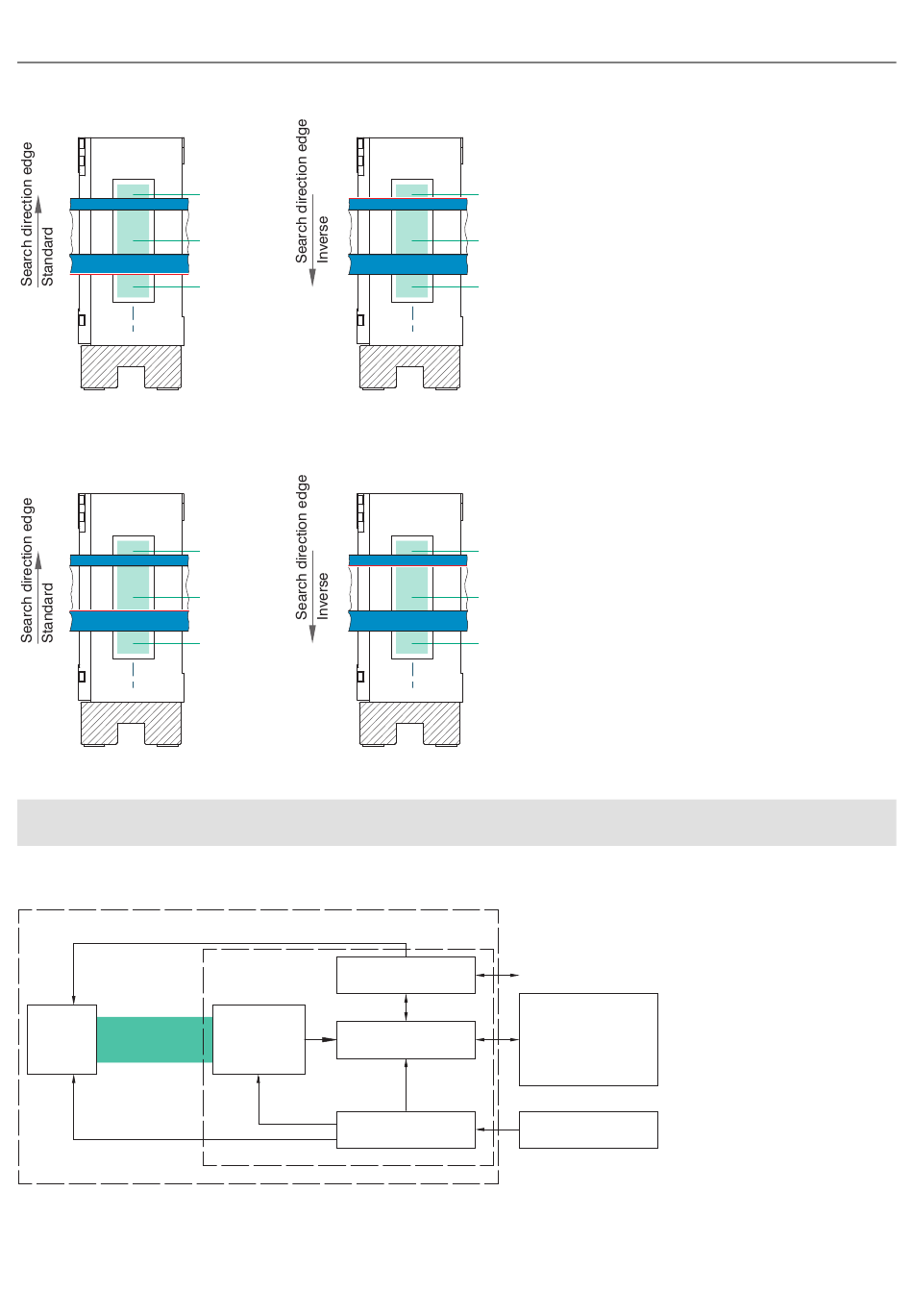

Fig. 2.5: Block Diagram of the ODC2700 Sensor
The integrated controller evaluates the image matrix and outputs the measured values via analog or digital interfaces.
Various parameterization methods are available, including a web interface (Ethernet) and ASCII commands.
optoCONTROL 2700
EMR
MMR
Target
Edge A
SMR
Measurement programm
Falling edge
EMR
MMR
Edge A
Target
SMR
Measurement programm
Rising edge
and
Web interface
Signal processor
matrix
Power supply
Receiver
Light source
EMR
Edge A
MMR
SMR
Light source
EMR
Edge A
MMR
SMR
measurement direction
Switching outputs
Functional Principle, Technical Data
parameters in the measuring program (da­
Input/Output
Digital
Analog
+24 VDC
