MICRO-EPSILON optoCONTROL 2700 Operating Instructions Manual page 45

Measuring program
Gap

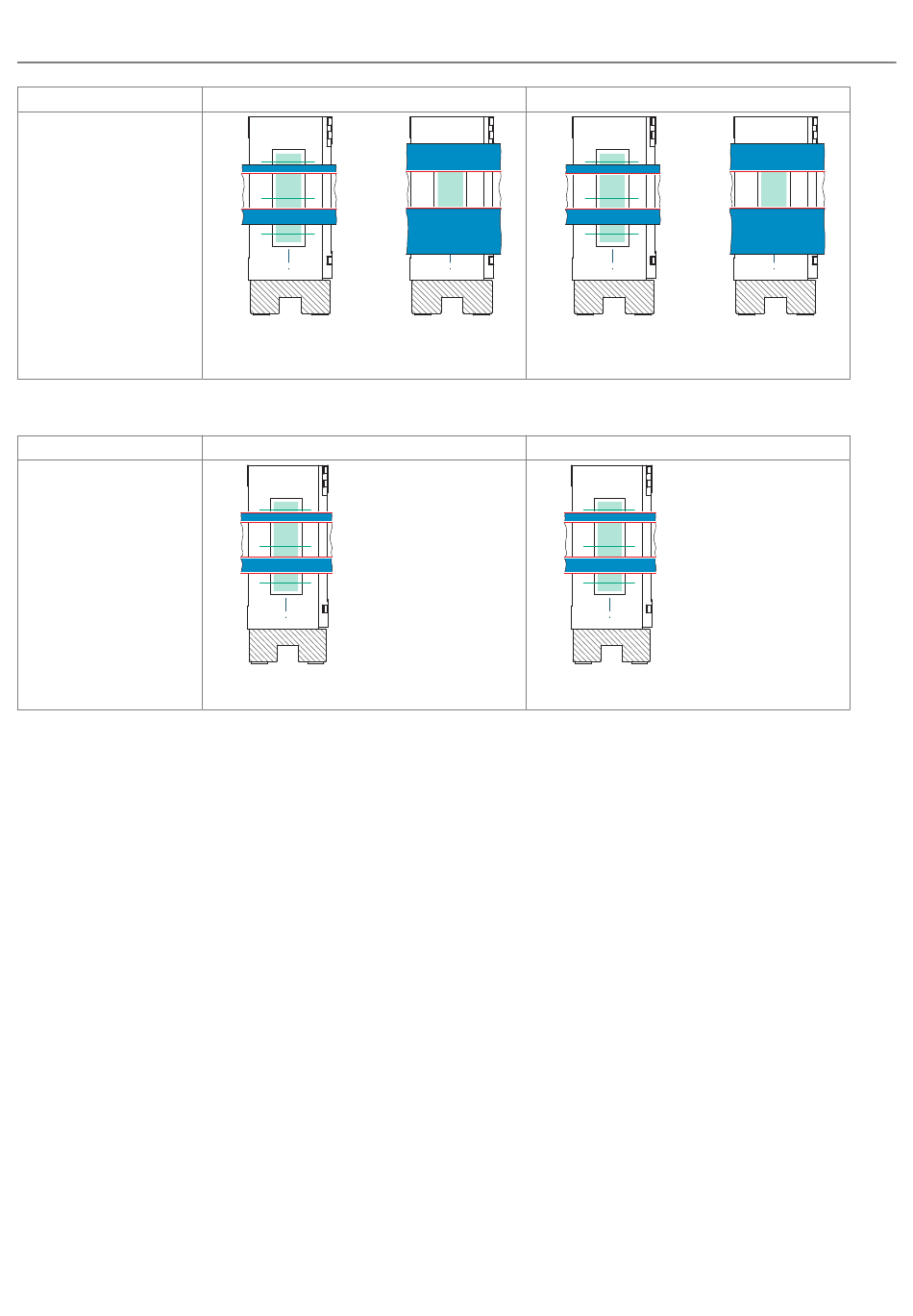

Fig. 6.6: Edge Assignment for Gap Measuring Program, Examples
Measuring program
Segment
Fig. 6.7: Edge Assignment for Segment Measuring Program, Examples
optoCONTROL 2700
Standard search direction
Receiver
EMR
Edge B
MMR
Edge A
Target
SMR
Sensor searches for the first dark-light transi­
tion and the next light-dark transition, start is
SMR
Standard search direction
Receiver
1: Edge A
EMR
1: Edge B
MMR
2: Edge A
Target
2: Edge B
SMR
Sensor searches for all dark-light and light-
dark transitions, start is SMR
Inverse search direction
Receiver
Receiver
EMR
MMR
Target Target
SMR
Sensor searches for the first dark-light transi­
tion and the next light-dark transition, start is
EMR
Inverse search direction
Receiver
EMR
MMR
Target
SMR
Sensor searches for all dark-light and light-
dark transitions, start is EMR
Advanced Settings
Receiver
Edge B
Edge A
Target
1: Edge A
1: Edge B
2: Edge A
2: Edge B
Seite 45
