6.6.3
Analog Output
Only one measured value can be transmitted. The resolution of the analog output is 16 bit.
Data output from
Output signal
analog output
Output range
Scaling
The first value corresponds to the start of the measuring range and the second value to the end of the measuring range. If
the analog range needs to be moved, we recommend using the zeroing or mastering function.
Two-point scaling enables the user to specify separate start and end values (in mm) for the sensor's measuring range.
The available output range of the analog output is then spread between the minimum and maximum measured values.
Empfänger
Receiver
1A

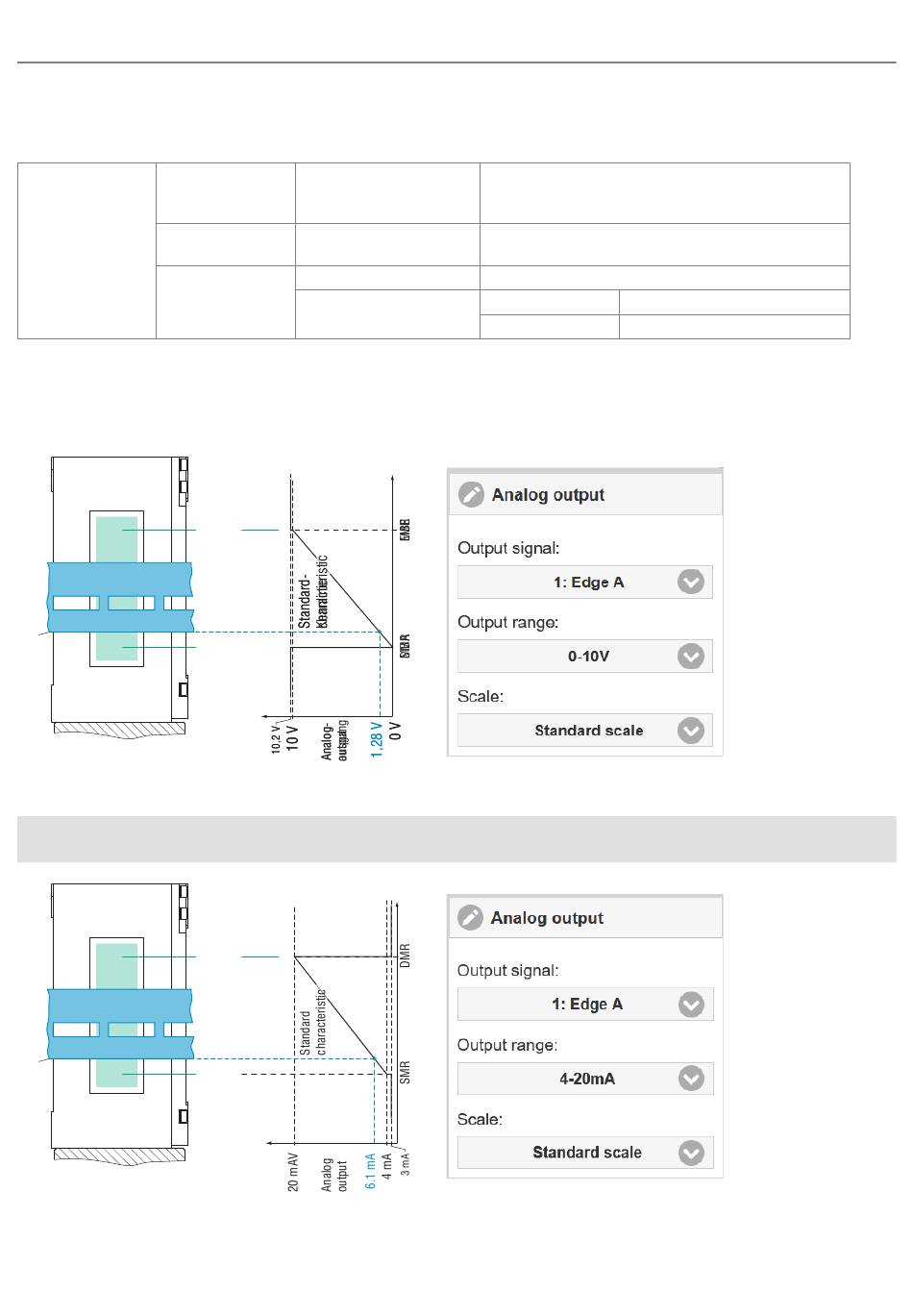

Fig. 6.23: Scaling of Analog Signal 0 ... 10 V, Example of Edge Tracing, Search and Measurement Directions: Standard
i
The
search direction
ta acquisition) affect the analog output.
Receiver
1A
Fig. 6.24: Scaling of Analog Signal 4 ... 20 mA, Example of Edge Tracing, Search and Measurement Directions: Standard
optoCONTROL 2700
Edge A / Edge B / Diame
ter / Center
4 ... 20 mA / 0 ... 5 V /
0 ... 10 V
Standard scaling
Two-point scaling
EMR
MBE
SMR
MBA
and
measurement direction
EMR
SMR
All output signals are internally determined values.
Values calculated using the computing functions can
not serve as signals.
Either the voltage or the current output can be used
on the sensor, but not both.
Scaling to 0 ... Measuring range
Start of range
Value
Value
End of range
parameters in the measuring program (da
Advanced Settings
Seite 66
