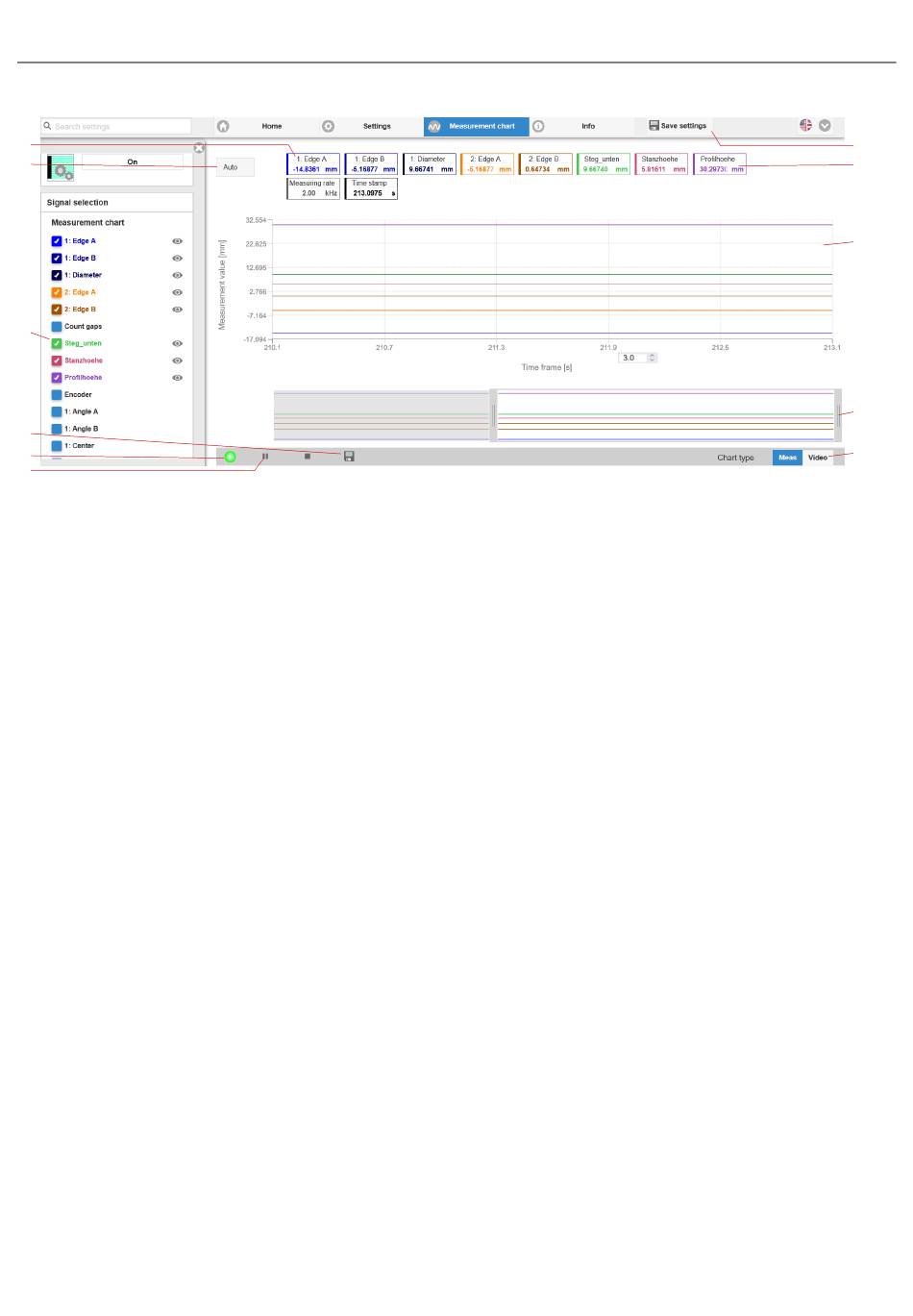

The chart displayed in the large chart area on the right shows the desired measured values as a function of time.
6
5
4
3
2
1
Fig. 5.5:
Measurement
The measurement chart web page contains the following functions:
1 and
Start, Pause,
stops the diagram; you can still continue to use the data selection and zoom functions.
Stop
initiates display of the measured values.
Start
pauses the recording.
Pause
2 Status indicator:
Green: OK, data transmission active
●
Yellow: Chart stopped
●
Red: Faulty sensor connection
●
3 The Save button can be used to save the displayed measurement curves in CSV format (timestamp and measured values).
Pressing it opens the Windows dialog for selecting the file name and save location.
4 The measured values to be displayed can be switched on or off during or after the measurement. Inactive curves are grayed
out.
All changes only become effective when you click on the
5 Scaling of the measured value axis (Y axis) in the graph
= automatic scaling
●
Auto
= manual scaling
●
Manual
6 Segment number
7 All changes only become effective when you click on the
8 The current values, selected measuring rate, and a timestamp are shown in addition in the text boxes above the graph.
9 Mouseover function. When the chart has been stopped and you move the mouse over the graph, points on the curve are
marked with a circle and the associated values are displayed in the text boxes above the graph.
10 X axis scaling: The diagram shown above can be enlarged (zoomed in on) with the two sliders on the right and left in the lower
entire signal. It can also be moved sideways with the mouse in the middle of the zoom window (four-sided arrow).
11 Chart type selection: Measurement or video signal display.
