Multifunction Input

The multifunction inputs support the triggering and encoder functions. The function depends on how the inputs are pro­
grammed and on the input signal time response. The inputs are not electrically separated.
Typ 1 Typ 2 Typ 3
Type 1 Type 2 Type 3
1

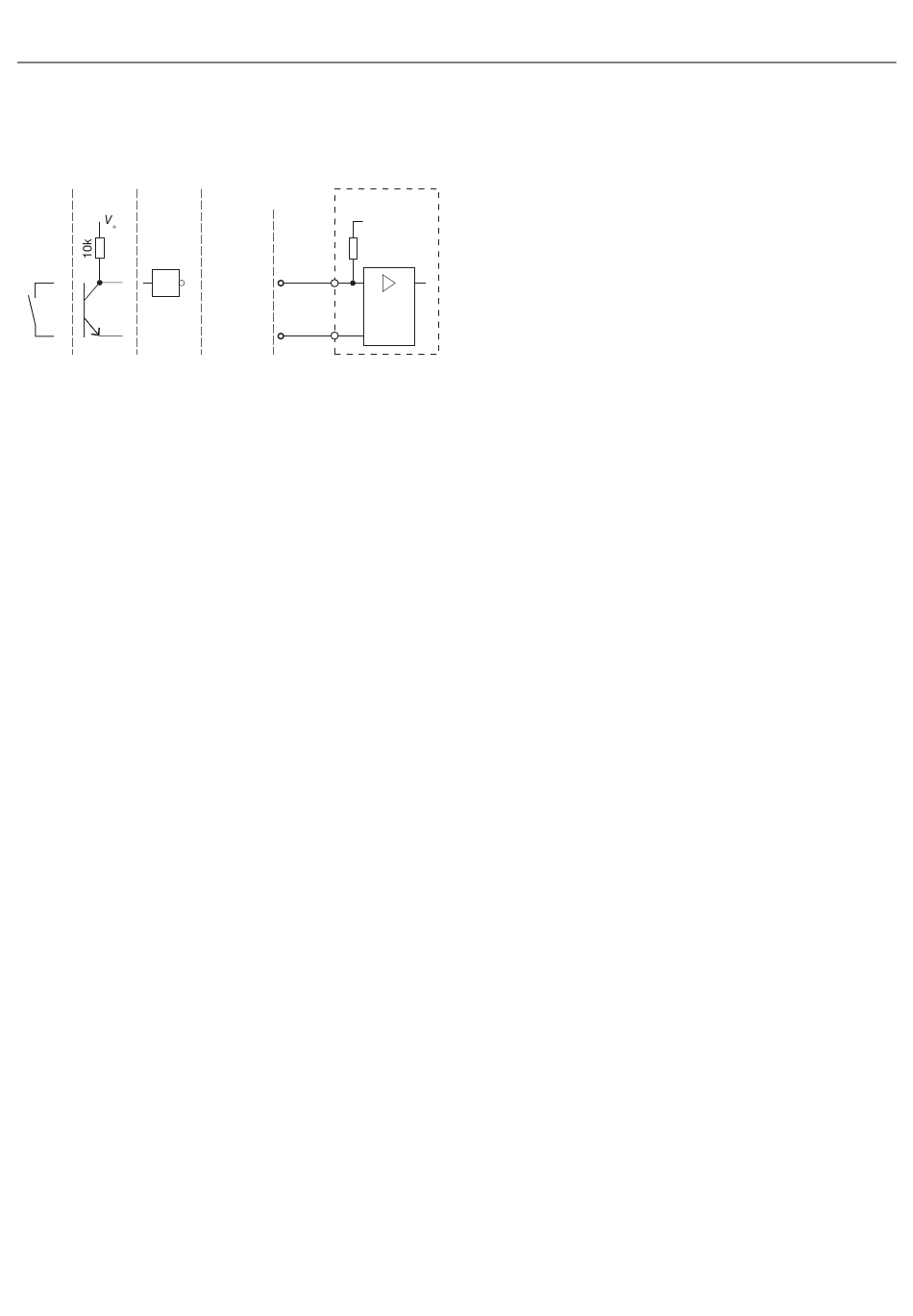

Fig. 4.15: Wiring for Multifunction Inputs
Signal
Multifunction input 1
Multifunction input 2
Multifunction input 3
optoCONTROL 2700
SCA2700-x
SCA2700-x
ODC2700
V
H
Rot/Blau
Red/Blue 12
Rosa
Pink 15
Grau/Rosa
Grey/Pink 17
Grau GND 8
Grey GND 8
Braun 10
Brown 10
Pin
15
12
17
5V logic (TTL): Low ≤ 0.8 V; High ≥ 2 V
24V logic (HTL): Low ≤ 3 V; High ≥ 8 V (max. 30 V)
Internal pull-up resistor, an open input is detected as
High.
Connect the inputs to GND in order to trigger the func­
tion.
