Electrical Connections; General; Supply Voltage (Power) - MICRO-EPSILON surfaceCONTROL 3D SC3200-80 Operating Instructions Manual

Installation and Mounting
5.2

Electrical Connections

5.2.1

General

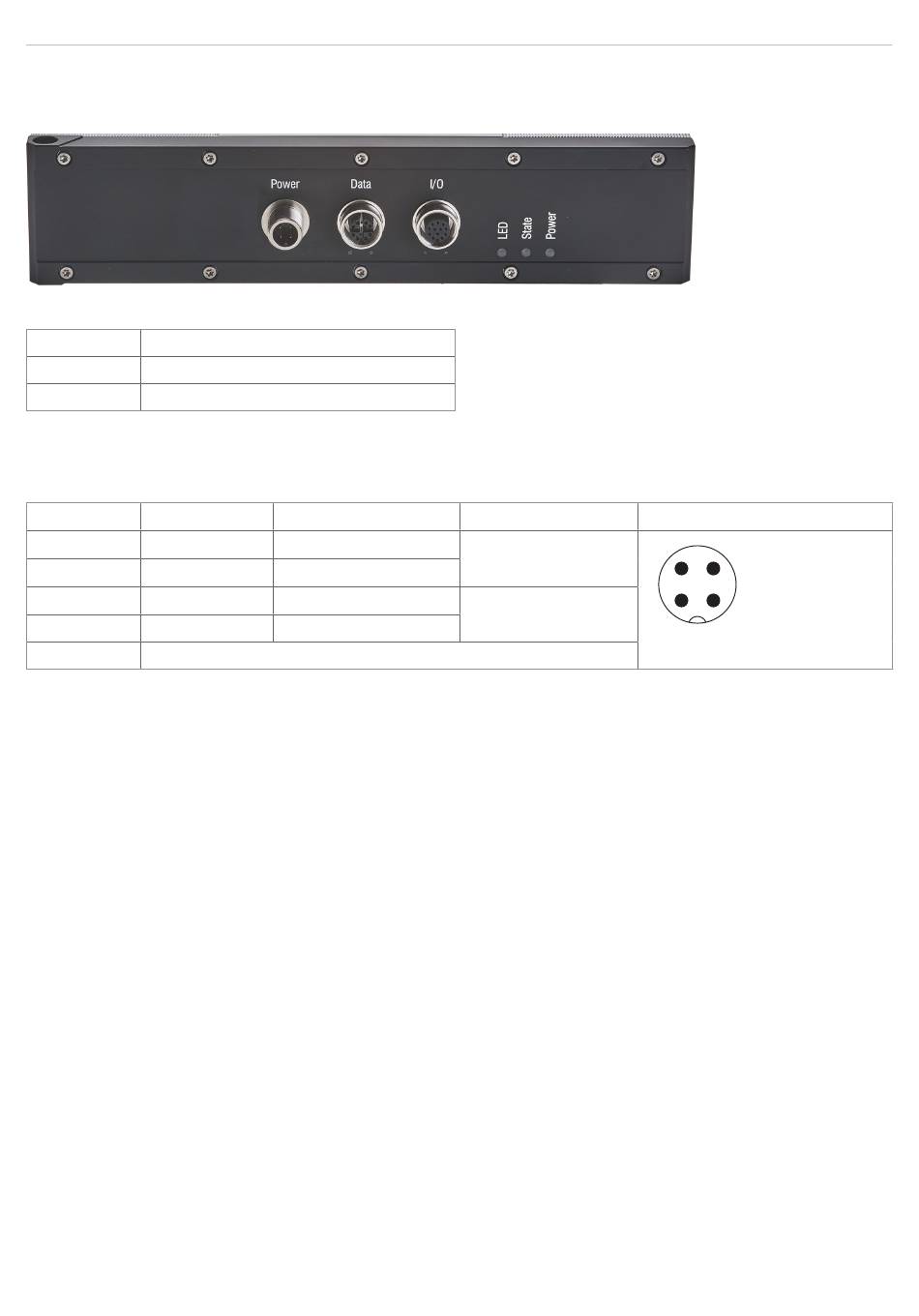

Fig. 10 Arrangement of connections
Power Power supply connection
Data Gigabit Ethernet connection
I/O Multi-function connection
5.2.2

Supply Voltage (Power)

The power supply connection in the form of a 4-pin M12 round connector has a current carrying capacity of up to 2 A per
pin.
Designation Pin no.
1
V
+
2
V
+
GND 3
GND 4
Screen Housing
Fig. 11 Pin assignment of the power supply connection
The operating voltage is protected against polarity reversal. Use only shielded lines or original cables from the accesso-
ries program for the power supply connection or the outputs.
Micro-Epsilon recommends the ECR3000-x shielded supply cable.
surfaceCONTROL 3D SC3200 / SC3210
Cable color ECR3000-x Notes
Brown
White
Blue
Black
19.2 V ... 28.8 V DC
(rated value 24 V)
0 V
Connection view
4 3
1 2
View: Plug on housing side
Page 16
