6.

Electrical Connections

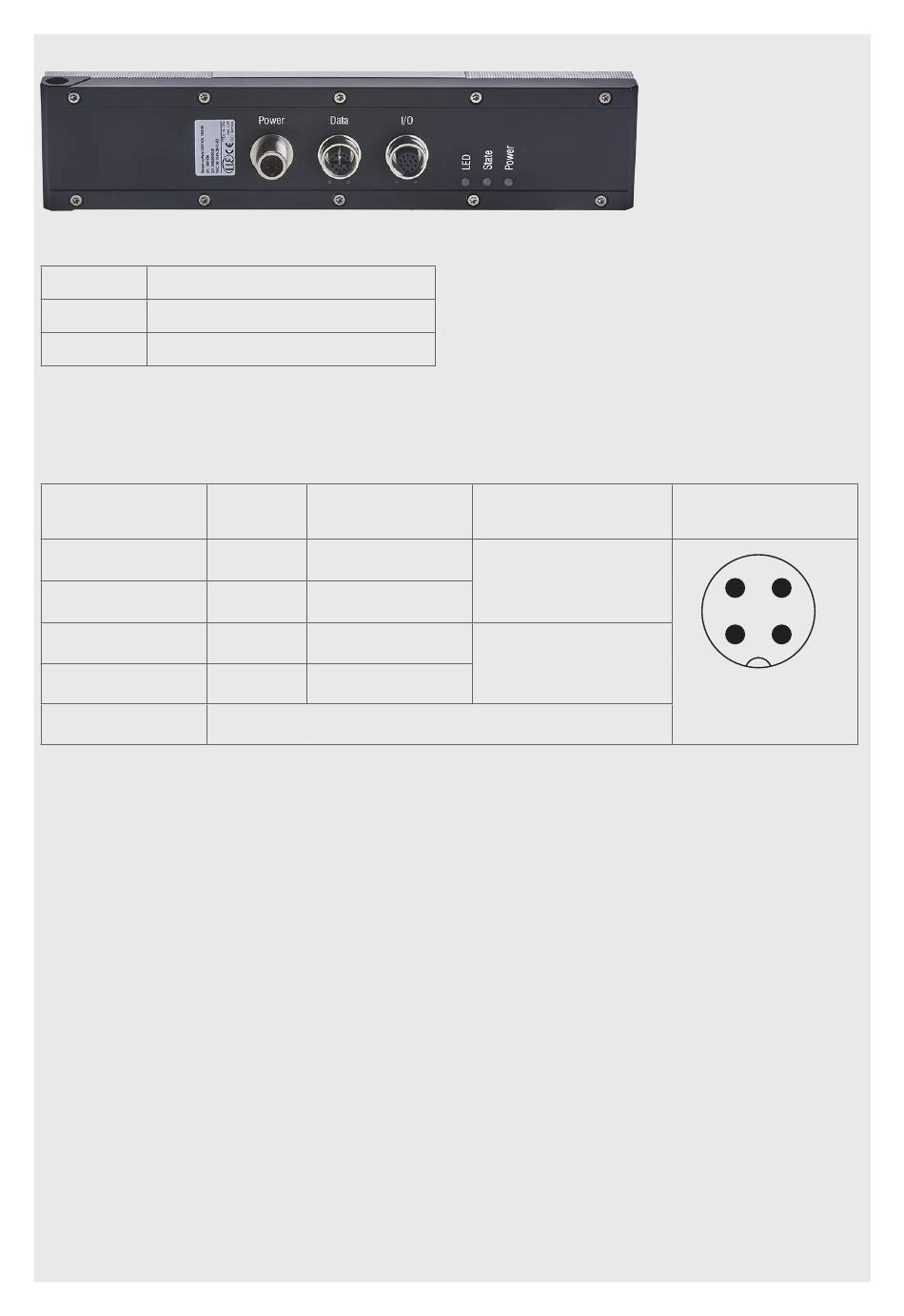

Fig. 2 Arrangement of connections
Power Supply voltage
Data Gigabit Ethernet connection
I/O Multi-function connection
Supply Voltage (Power)
The power supply connection in the form of a 4-pin M12 round connector has a current
carrying capacity of up to 2 A per pin.
Designation
+U
B
+U
B
GND
GND
Screen
Fig. 3 Pin assignment of the power supply connection
The operating voltage is protected against polarity reversal. Use only shielded lines or
original cables from the accessories program for the power supply connection or the
outputs.
Micro-Epsilon recommends the ECR3000-x shielded supply cable.
surfaceCONTROL 3D 32xx
Cable color
Pin no.
ECR3000-x
1 Brown
2 White
3 Blue
4 Black
Housing
Notes
18 V ... 30 V DC
(rated value 24 V)
0 V
Connection view
4 3
1 2
View: Plug on
housing side
