6.4.2

Calculation

6.4.2.1

Data Source, Parameters, Computing Programs

One computing operation can be performed in each calculation block. The computing program, the data sources and the
parameters of the computing program must be set for this.
Median
Moving averaging
Recursive averaging
Thickness
Formula
Calculation
Formula
Duplicate
Fig. 6.9: Available computing programs
Completing the Calculation Function
► Switch to the tab
Settings
Sequence for creating a calculation block:
Select a program (1), e.g., average.
●
Define the parameters (2).
●
Define the data source(s) (3).
●
Enter a block name (4).
●
Click on the
●
Apply calculation

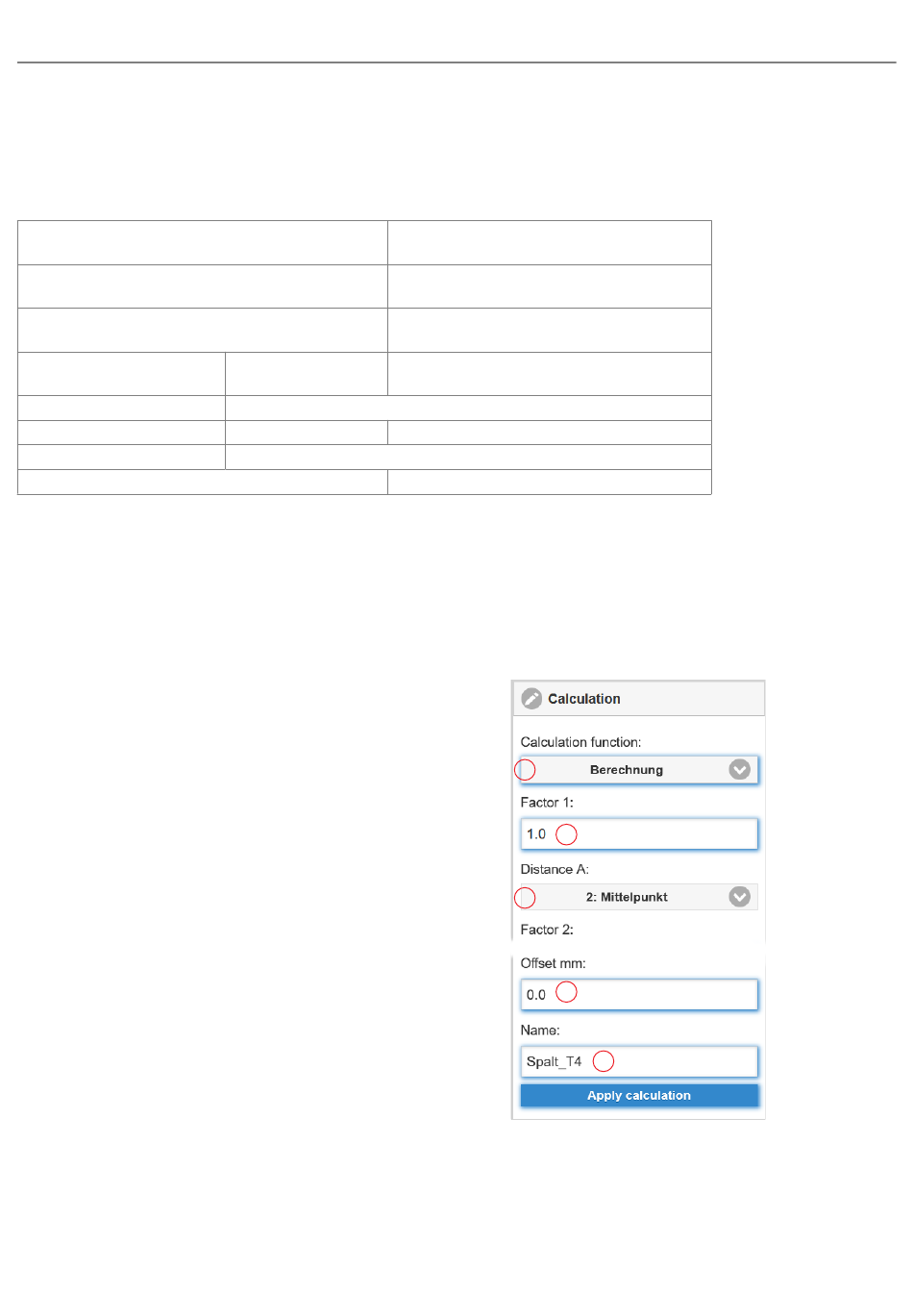

Fig. 6.10: Sequence for Program Selection
optoCONTROL 2700
Signal or result
Number of values
Signal or result
Number of values
Signal or result
Number of values
Calculating the differ­ Signal or result
ence
Signal distance A < signal distance B
Distance B - distance A
Summation Signal or result
Factor 1 * Distance A + Factor 2 * Distance B + Offset
Signal or result
>
Signal processing
button.
> .
Calculation
1
2
3
2
4
Advanced Settings
