► Click the
Open Website
the IP settings according to the settings on your PC (IP address ranges must match).
Interactive web pages for setting the sensor and peripherals are now shown in the web browser.

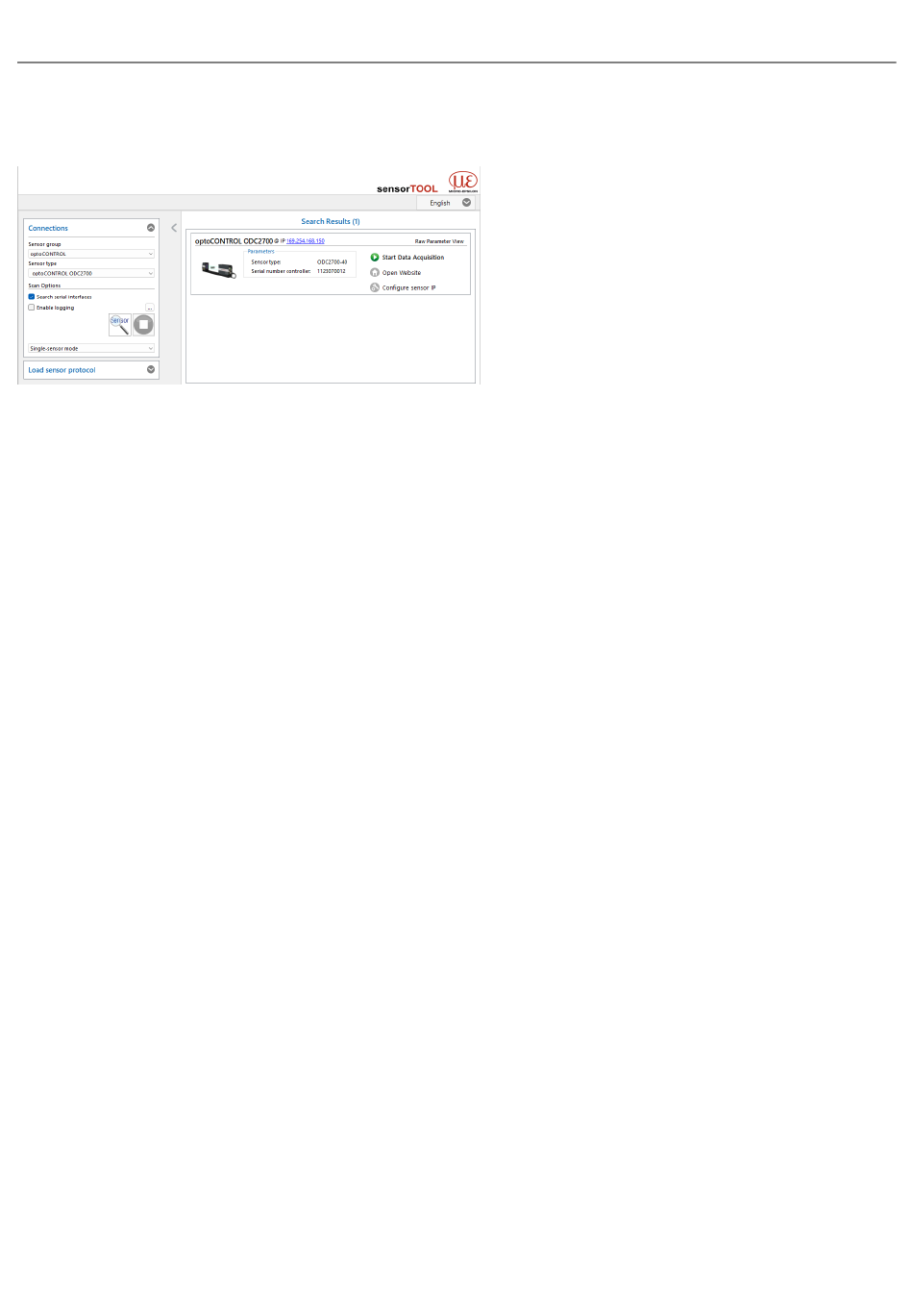

Fig. 5.1: Assistance program
5.2.2.2

PC with DHCP

► Connect the sensor to a PC using a direct Ethernet connection (LAN). To do this, use the SCD2700-5-M12 cable.
Wait until Windows has established a network connection (connection with limited connectivity).
► Start the
sensorTOOL
► Click on the
Sensor
► Now select the desired sensor from the list.
► Click on the
Open webpage
5.2.3

Network

Sensor with dynamic IP, PC with DHCP
► Connect the sensor to a switch using a direct Ethernet connection (LAN). To do this, use the SCD2700-5-M12 cable.
► Enter the sensor in the DHCP/register the sensor with your IT department.
IP address assignment by your DHCP server. You can query this IP address with the
► Start the
sensorTOOL
► Click on the
Sensor
► Now select the desired sensor from the list.
► Click on the
Open webpage
OR: When using DHCP with the DHCP server coupled to the DNS server, access to the sensor is possible using a host
name with the structure "ODC2xxx_SN<Serial number>".
► Start a web browser on your PC. To reach a sensor with serial number "01234567", type "ODC2xxx_SN01234567"
into the address bar of the browser.
optoCONTROL 2700
button to display the website of the sensor in your standard browser. Alternatively, change
for sensor search
sensorTOOL
program.
button.
button to display the web page of the sensor in your default browser.
program.
button.
button to display the web page of the sensor in your default browser.
program.
sensorTOOL
Operation
Seite 30
