Defining segments

This function is possible in conjunction with the Multi-segment preset and setups derived from it.
The detection of four edges is factory-set, see figure.

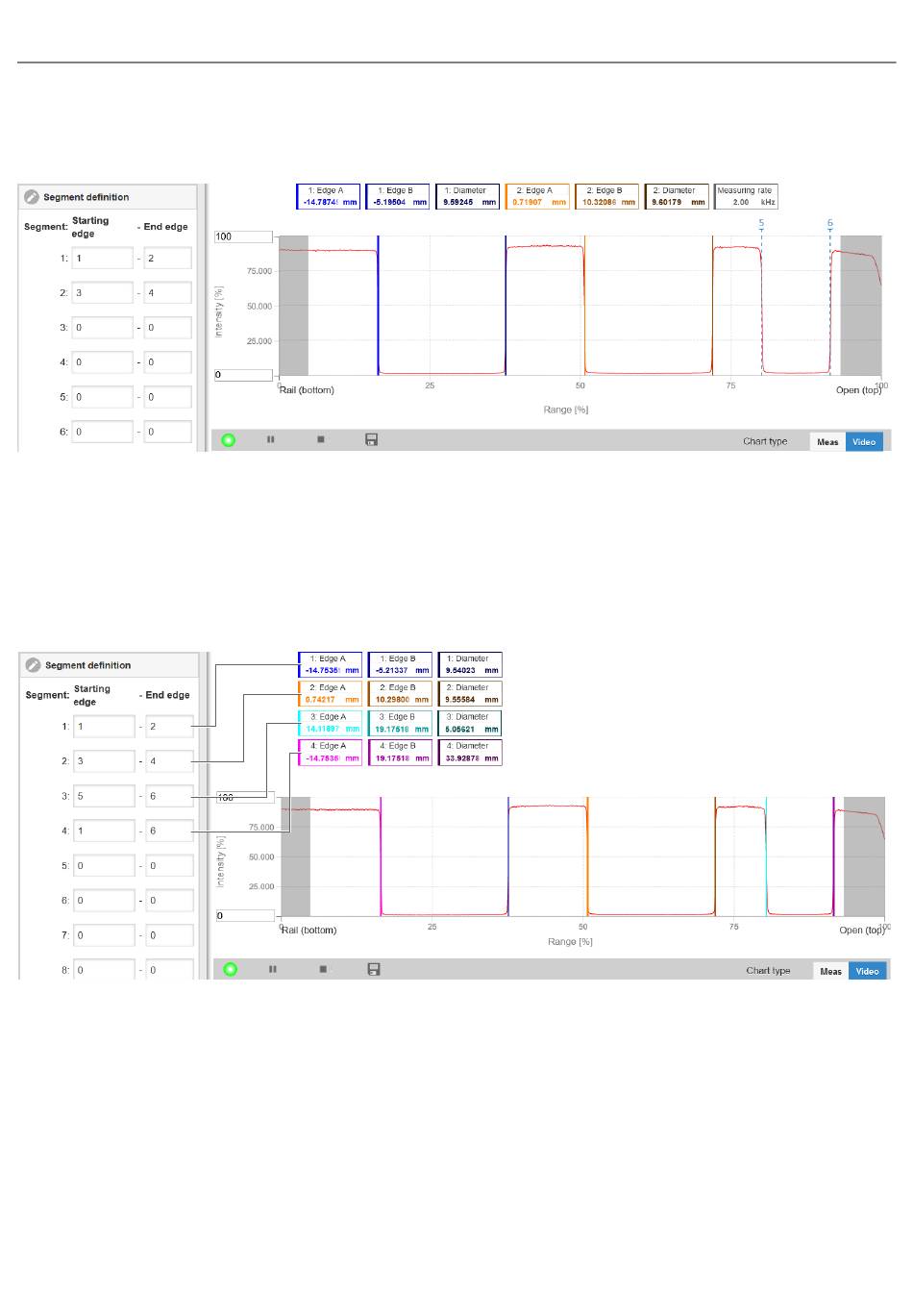

Fig. 6.9: Factory-set segment definition in the multi-segment preset
Measuring object with fewer than four edges: unused text boxes contain "No peak".
Measuring object with more than four edges: additional edges are numbered in the video signal with vertical, blue peak
markers.
A maximum of 8 segments or 16 edges can be defined. Edge 1 is the edge that the sensor finds in the standard search
direction (from the start of the measuring range). Further edges are numbered in ascending order. Edge 0 is the start of
the measuring range. A 0-0 segment is ignored.
Fig. 6.10: Individual segment definition
Segment definition process
Switch to the tab
Settings
Define the edge references to suit your measuring object.
Save the resulting setup under a new name.
