Mounting | confocalDT IFD2410/2415
4.2.3

Electrical Connections, Pin Assignment

Source Cable/power supply
PC2415-x
12-pin male connector
17-pin male connector

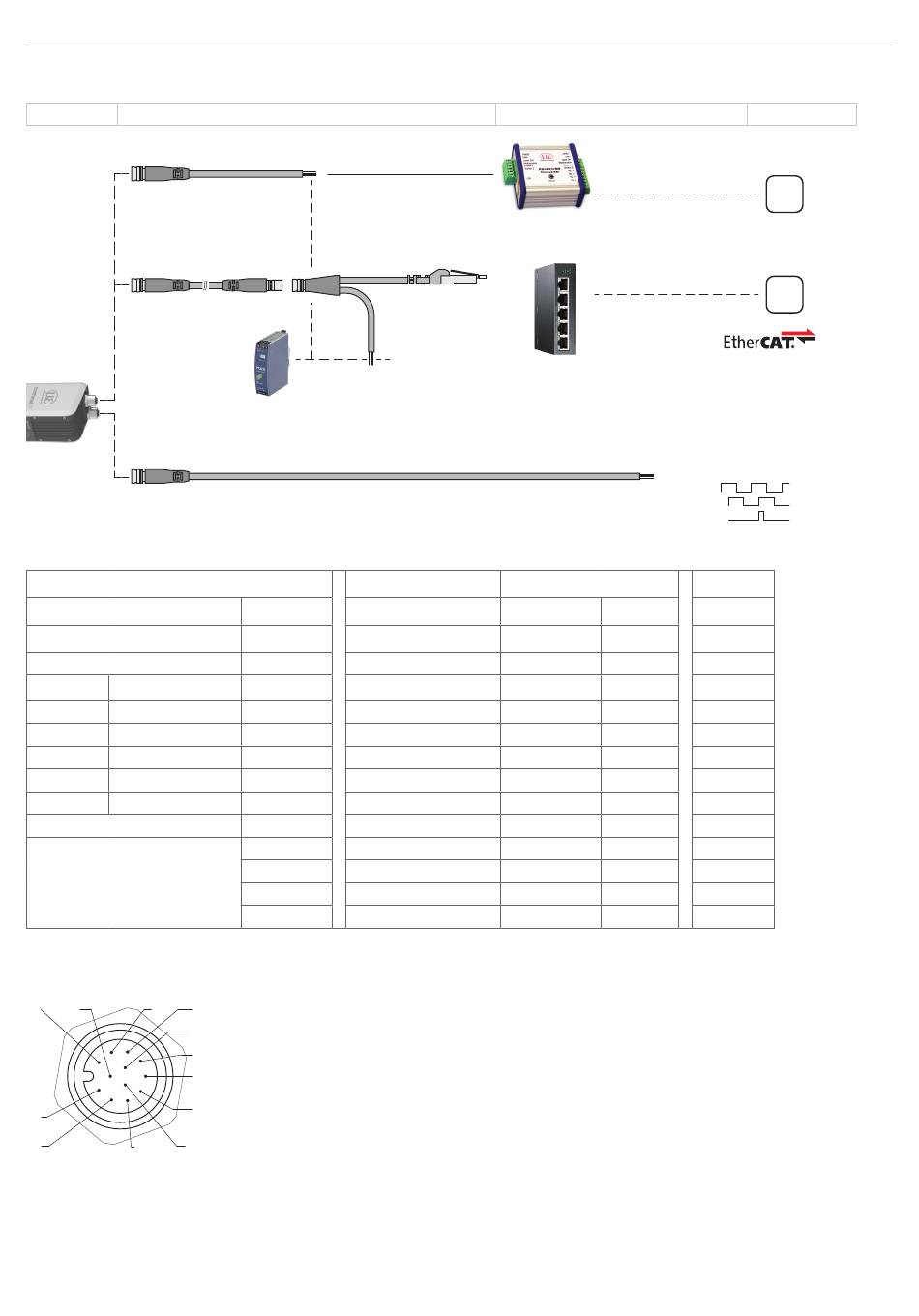

Fig. 6 Connection examples for confocalDT IFD2411/2415
IFD2410/2415, 12-pin connector
Signal
V
+
Supply GND
Data Rx+ Encoder 2A+
Data Rx- Encoder 2A-
Data Tx+ Encoder 2B+
Data Tx- Encoder 2B+
SYNC+ Encoder 2Ref+
SYNC- Encoder 2Ref-
Shield
Industrial Ethernet
Fig. 7 Pin assignment for 12-pin sensor connector
The PC2415-1/Y cable is included in the scope of delivery.
1 10 9 8
12
7
6
5
2
3 4 11
Fig. 8 12-pin sensor connector, pin side
1) The pins can be used for either:
- serial communication (TIA/EIA-422-B) and synchronization or
- encoder signals.
confocalDT 2410/2411/2415
PC2415-x/OE
PC2415-1/Y
PS 2020
Power supply
(optional)
SC2415-x/OE
PC2415-x/OE
Pin Wire color
1 Red
2 Blue
3 Brown
1
4 White
5 Green
6 Yellow
7 Gray
8 Pink
Housing Black
9 White/green
10 Green
11 White/orange
12 Orange
Interface
RS422 / Encoder
Synchronization /
Ref. Encoder
Switch / PC / Ethernet
PC2415-1/Y
Wire color
Red
Blue
Brown
White
Green
Yellow
Gray
Pink
Black
---
---
---
---
Terminal
IF2001/USB
RS422/USB converter
(optional)
USB
Analog output
Digital I/O
Encoder
IF2001
RJ45, pin Signal
--- 24VDC
--- GND
--- Tx+
--- Tx-
--- Rx+
--- Rx-
--- ---
--- ---
--- ---
3 ---
6 ---
1 ---
2 ---
PC
PLC
A, B
