12 The evaluation range (ROI) can be restricted if necessary and is then limited by additional light blue shading on the right and
left. The peaks remaining in the resulting range are used for the evaluation.
13 X axis scaling: The diagram shown above can be enlarged (zoomed in on) with the two sliders on the right and left in the lower
entire signal. It can also be moved sideways with the mouse in the middle of the zoom window (four-sided arrow).
14 Chart type selection: Measurement or video signal display.
The following measurement was performed using the
select specific areas of a target for evaluation. Within this context, one segment can span several edges; the color-coded
highlighting of the edges enables you to identify them rapidly in the video signal.

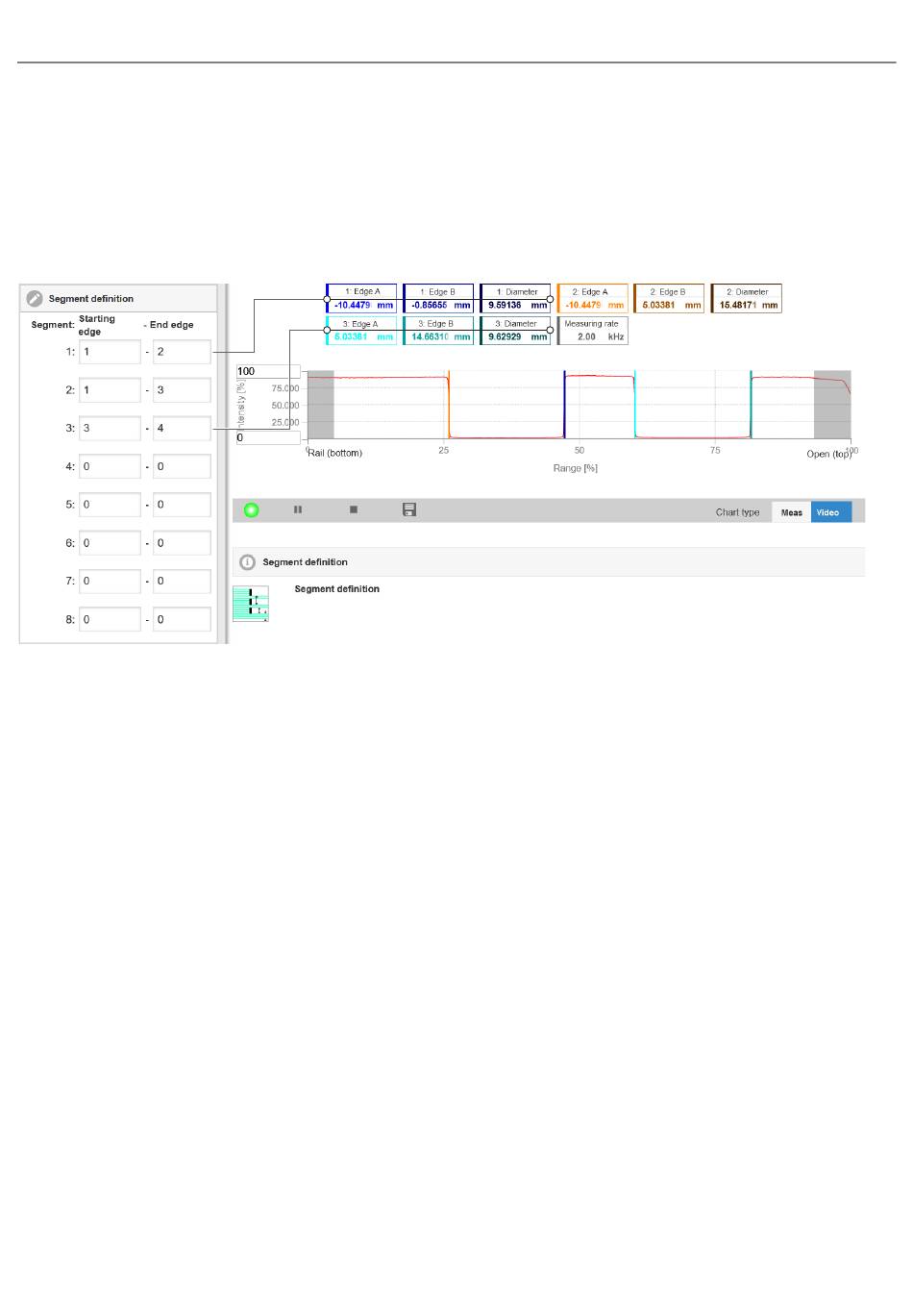

Fig. 5.4: Video Signal with Defined Segments
5.4

Presets, Setups, Measurement Configuration Selection

Definition
Preset: Manufacturer-specific program containing settings for common measuring tasks that cannot be overwritten
●
Setup: User-specific program containing the relevant settings for a measuring task
●
Initial setup on booting (sensor startup): A favorite setting can be selected from the setups for automatic activation on
●
sensor startup. If no favorite has been identified from the setups, the sensor starts with the most recently saved set­
tings/setup or the sensor activates the web edge preset.
Upon delivery of the sensor from the factory:
the web edge, wire measurement, diameter, contour measurement, multi-segment, and gap measurement presets can
●
be used,
but no setups are available.
●
