The programs calculation and thickness have two data sources. Averaging programs each have one data source.
Calculation / Thickness
Moving averaging / Recursive averaging / Median
Duplicate

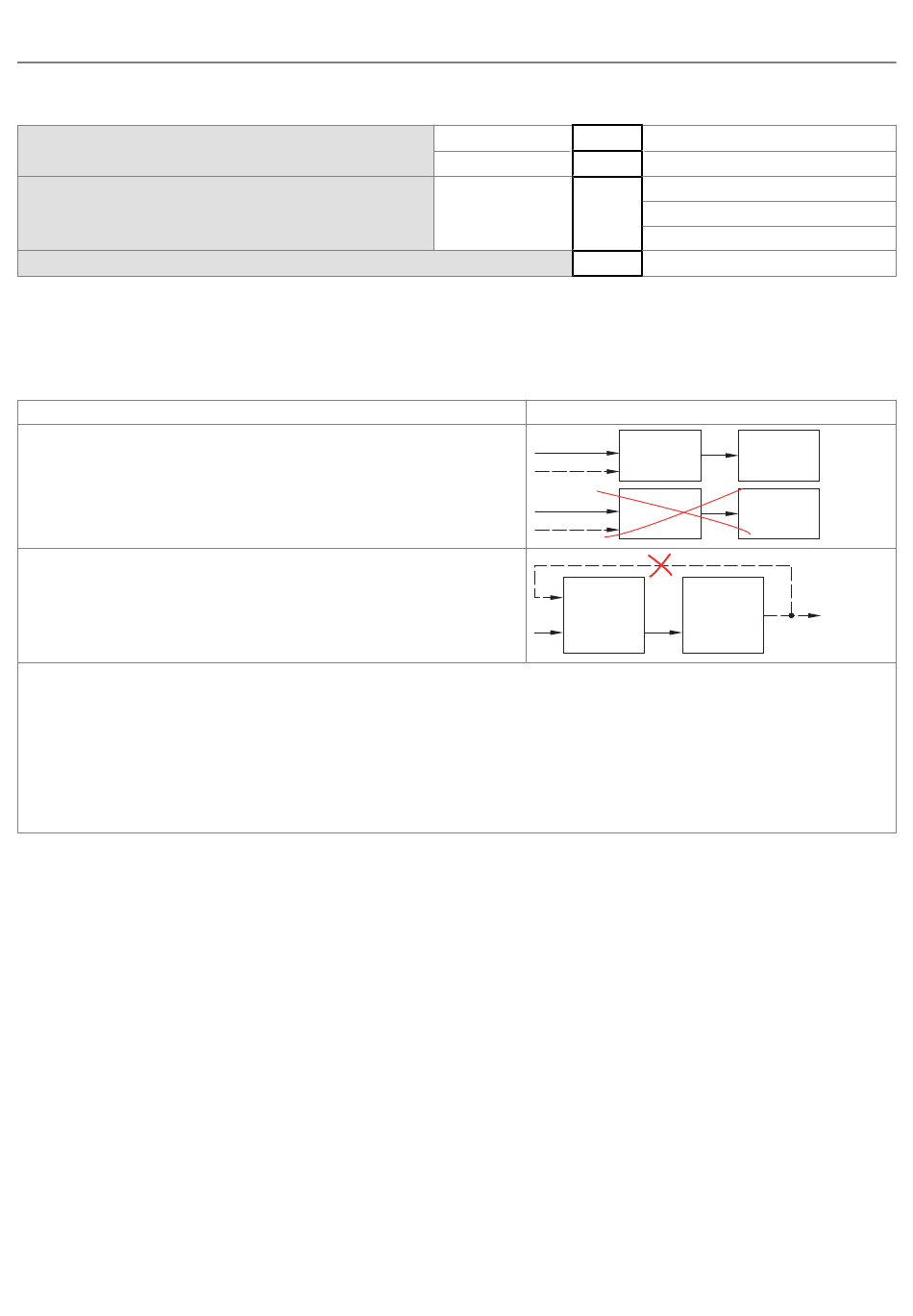

Fig. 6.11: Value Range of Computing Program Parameters
6.4.2.2

Definitions

Observe the following points when using the computing functions.
Signal(s)
Max. 10 calculation blocks per channel/sensor. The calculation blocks are
processed sequentially.
Feedback couplings (algebraic loops) over one or several blocks are not
possible. Only the signals or the computed results from the previous calcu­
lation blocks can be used as data sources.
Processing sequence:
1.
Determination of edges
2.
Calculation of differences (diameter, gap, segments) and center axes
3.
Error handling in the case of no valid measured value
4.
Spike correction of measured values
5.
Calculation functions (blocks)
6.
Statistics
optoCONTROL 2700
Factor 1 / 2 Value
Value
Offset
Value
Number of values
Value
n edge A / n edge B / ...
Signal n
Signal n
Block 1
Calculation
Advanced Settings
-32768.0 ... 32767.0
-2147.0 mm ... 2147.0 mm
Moving: 2 / 4 / 8 / ... / 4096
Recursive: 2 ... 32767
Median: 3/5/7/9
Name of the duplicated signal
Block 1 Block 2
Block 2 Block 1
Block 2
Calculation
