2.7 Configuring Inputs/Outputs

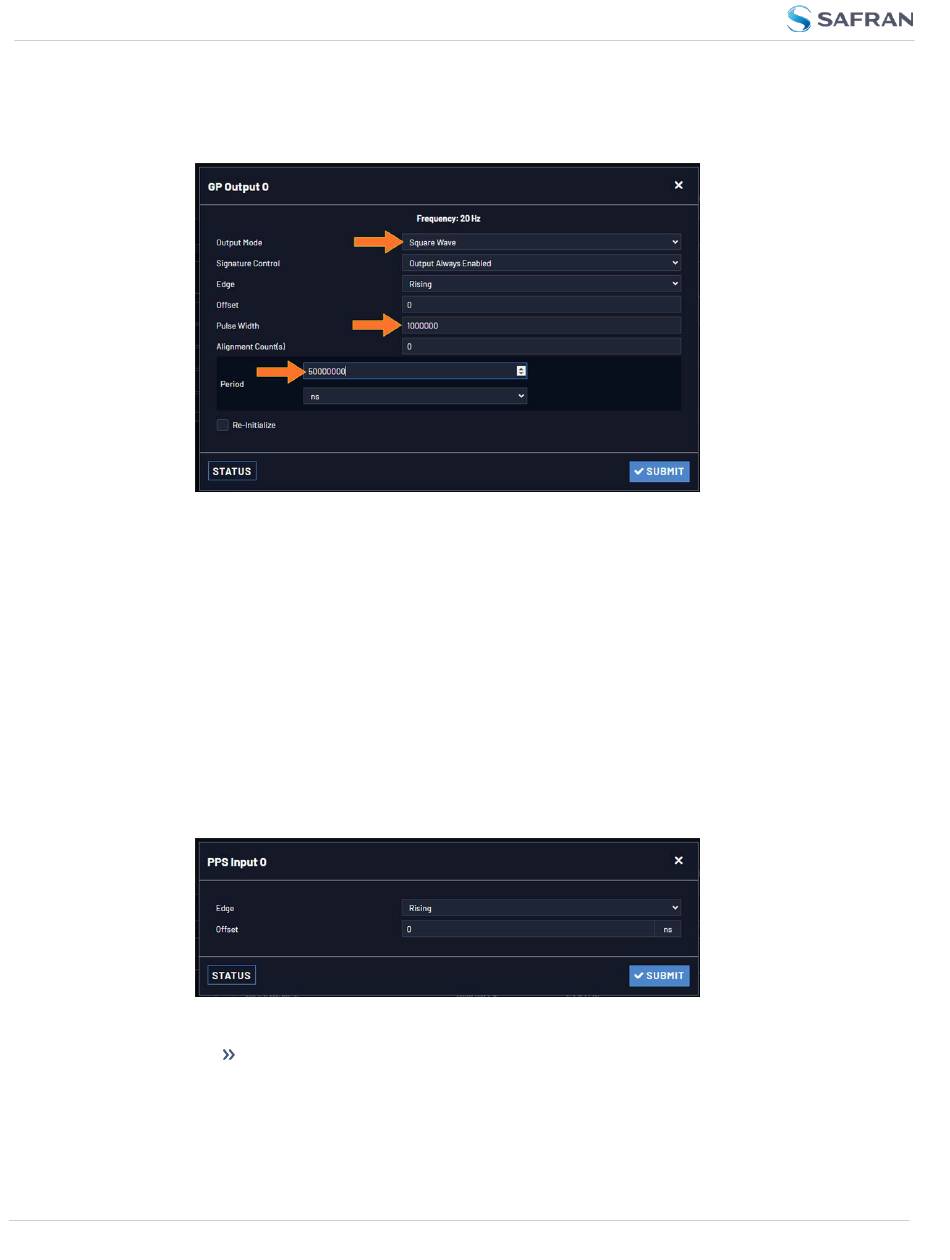

12. To configure e.g., a 20 PPS signal, set the
13. Click Submit.
2.7.4

Configurable I/Os

2.7.4.1

Configuring a 1PPS Input

To configure a 1PPS Input:
1. Navigate to
2. The PPS Input 0 Status window displays. Click Edit to open the con-
3. Apply your settings for:
52
the Period to 50 000 000 ns:
INTERFACES > REFERENCES: PPS Input 0
OPTION CARDS: PPS Input
figuration window:
Edge: [Rising, Falling] The on-time point of the 1PPS input can be con-
figured to be either the rising or falling edge of the 1PPS signal (by
default, the rising edge is the on-time point).
Pulse Width
0).
CHAPTER
to 1 000 000 ns, and
(or: INTERFACES >
•
2 VersaSync User Manual Rev. 12
