2.7 Configuring Inputs/Outputs
2.7.1

Assigning I/O Pins

VersaSync's I/O connector is software configurable, i.e. the pin interfaces and the
signal modulations can be configured by the user via the VersaSync Web UI.
The software-configurable 26-pin I/O connector comprises 9 user-configurable
Channels, plus one fixed USB interface. Channels can be used for the following
input or output interfaces:

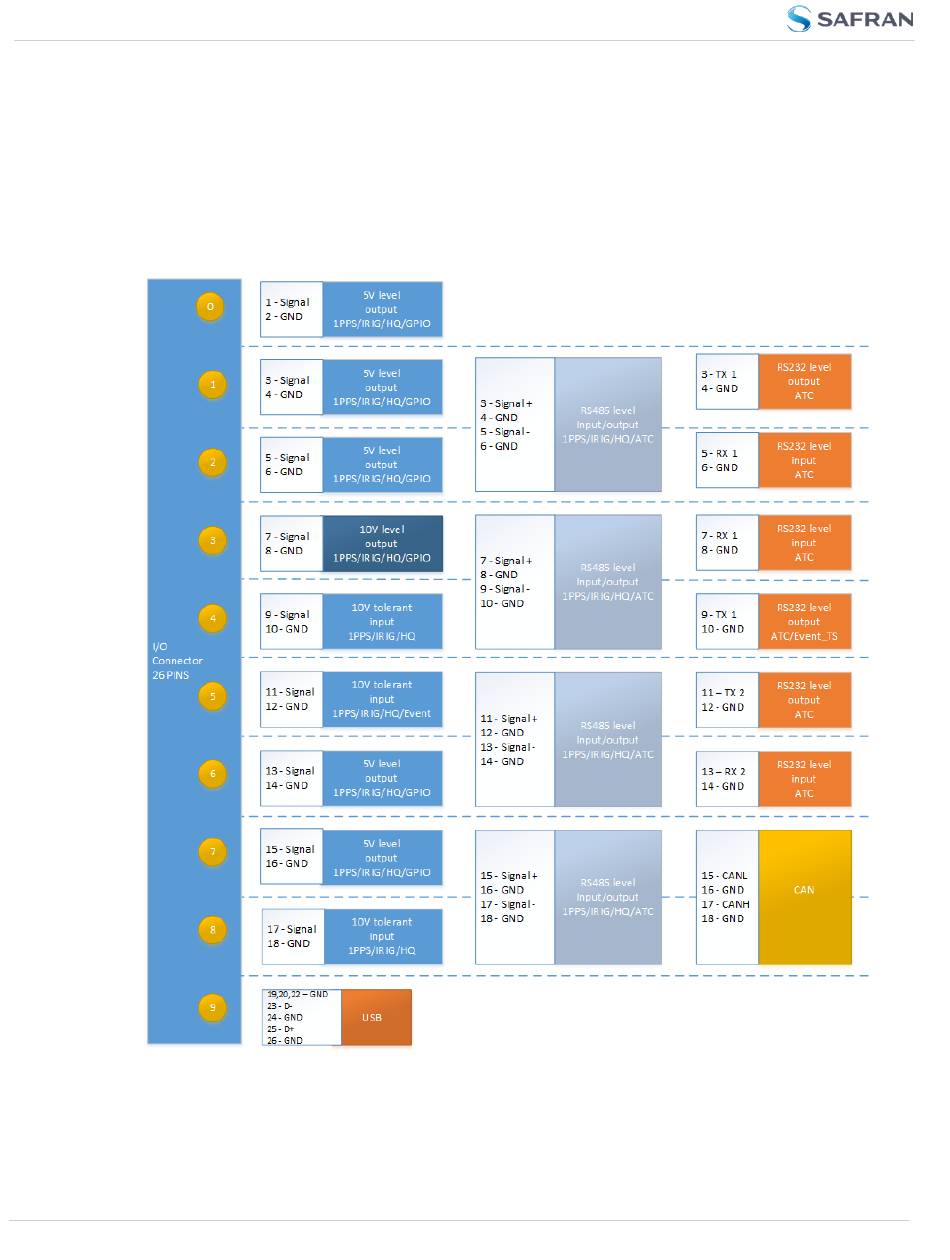

Figure 2-3: I/O configuration options
CHAPTER •
44
