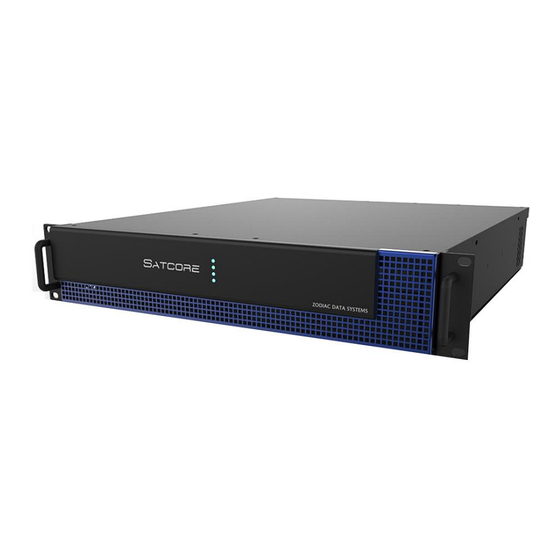

Safran SATCORE Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

SATCORE Series
User's Manual
D102751
1.0
Ref.
Is.Rev
11/07/2019
Date:

Advertisement

Table of Contents
loading

Related Manuals for Safran SATCORE Series

Summary of Contents for Safran SATCORE Series

  • Page 1 SATCORE Series User's Manual D102751 Ref. Is.Rev 11/07/2019 Date:...
  • Page 2 EVOLUTIONS Is. Rev. Date Description December 1, 2016 Document created February 1, 2017 First version for external diffusion November 12, 2018 Satcore Rear Panel Descriptions Updated July 11, 2019 Unlimited tokens for every Satcore unit. Addition of compatibility description with Cortex MCS Software COPYRIGHT THIS DOCUMENT IS THE PROPERTY OF ZODIAC DATA SYSTEMS UNDER THE COPYRIGHT LAWS, IT MUST NOT BE REPRODUCED OR TRANSMITTED IN ANY...

  • Page 3: Table Of Contents

    PC-compatible Workstation ........................31 ........................32 NPUT UTPUT ESCRIPTION 2.2.1 Satcore Series Front Panel description ...................... 32 2.2.2 Satcore Direct Rear Panel description ....................... 33 2.2.2.1 Description ............................... 33 2.2.2.2 Time & Reference ............................35 2.2.3 Satcore RX / RX-light Rear Panel description .................... 37 2.2.3.1 Description ...............................
  • Page 4 SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 SATCORE W ........................51 EB INTERFACE 3.3.1 Satcore GUI description ..........................51 3.3.1.1 Overview ................................51 3.3.1.2 Navigation bar ..............................52 3.3.1.3 My Tasks page ..............................53 3.3.1.4 Task creation page ............................
  • Page 5 SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 LIST OF FIGURES 1: S ............................. 15 IGURE ATCORE AIN ASSETS 2: S ..........................15 IGURE ATCORE IRECT RINCIPLE 3: S ..........................16...
  • Page 6 SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 ACRONYMS & ABBREVIATIONS SYMBOLS Percent  Plus or minus  Greater than or equal  Less than or equal   Approximately...
  • Page 7 SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 ABBREVIATIONS: Applicable Document Automatic Gain Control Assembly Integration and Test APSK Amplitude and Phase Shift Keying AQPSK Asynchronous Quadrature Phase Shift Keying...
  • Page 8 SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 ECSS European Cooperation for Space Standardization Electro Magnetic Compatibility Finite Impulse Response Fast Fourrier Transform Frequency Modulation FPGA Field Programmable Gate Array...
  • Page 9 SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 Personal Computer Phase Locked Loop Phase Modulation Peak to peak Power Supply Phase Shift Keying QPSK Quadrature Phase Shift Keying RAID Redundant Array of Independent Disks...
  • Page 10 SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 CAUTION CAUTION RISK OF ELECTRICAL SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
  • Page 11 SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 IMPORTANT SAFETY INSTRUCTIONS This product is designed and manufactured to meet strict quality and safety standards (conformity to “EN 60950:2002 standard: Safety of information technology equipment.
  • Page 12 SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 Opening of the product chassis To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside ; the product chassis should only be opened by qualified personnel for maintenance purpose ( except for opposite instructions in the user’s manual ).
  • Page 13 SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 Lifting the unit If this apparatus weighs over 20kgs, so take extreme care when lifting or moving this unit. We recommend that two people are available to lift this unit.
  • Page 14 SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 CE MARKING Markings are placed at the rear of the unit, regarding the power ratings and compliance. symbol on the PC chassis indicates that it is in compliance with the Electromagnetic Compatibility directive (2006/95/EC) and the low Voltage directive (IEC60950-1/A1:200973/23/CEE) .

  • Page 15: Satcore Overview

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 1. SATCORE OVERVIEW Page 13 ZODIAC DATA SYSTEMS PROPRIETARY...

  • Page 16: Scope

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 1.1 SCOPE This manual contains the information necessary to install, configure, operate and maintain the ZDS PC-based SATCORE equipment. The document is divided into four main sections: ...

  • Page 17: Satcore Series

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 SATCORE SERIES 1.2.1 Product Line With a growing number of Earth Observation satellites & constellations, ground segments are expected to be innovative, flexible and cost optimized. The Satcore product line provides a new solution for simplifying customer’s experience.

  • Page 18: Figure 3: Satcore Productl

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 Four versions are proposed to meet all types of demand and budgets. SATCORE available versions Functions Direct Rx-light Modem Wideband Rx-HD (1200Mbps)

  • Page 19: Concept

    Low-Earth Orbit satellite inflight operations, from small satellite market to Direct Tasking applications. Merging state-of the art technologies inside a lean architecture, the Satcore Series propose a scalable and flexible design. This enables an easy software maintenance and a simple improved algorithms implementation leading to the continuous expansion of the Satcore supported missions list.

  • Page 20: Workstation

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 1.2.2.2 Workstation The Satcore workstation is a 2U rack-mounted chassis, where all elements were selected carefully to meet long- term lifetime and optimized availability.

  • Page 21: Connexion To The Outside World

    Date : July 11, 2019 1.2.2.3 Connexion to the outside world The Satcore Series can be operated directly through the Cortex Series TCP/IP Ethernet interface, but also thanks to a Web service, named Common User Interface eXperience (CUIX). The Web-oriented architecture is based on Apache / PHP Server, has been designed and tested for browsers: ...

  • Page 22: Capacities

    Cortex Series, the Satcore Series aim for customers who look for a simple and effective solution. The following table gives a glance of the list of satellites that can be supported by Satcore Series. This list will be updated during Satcore Series lifetime.

  • Page 23: Satcore Main Features

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 1.2.3.2 Satcore Main Features 1.2.3.2.1 P AYLOAD ECEIVER Satcore RX-light Satcore RX Satcore Direct Satcore Modem Payload Receiver IF Reception Input port number...
  • Page 24 SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 1.2.3.2.2 TT&C M ODEM 1.2.3.2.2.1 T ELECOMMAND Satcore RX-light Satcore RX Satcore Direct Satcore Modem TT&C Modem Telecommand IF Processing Output port...
  • Page 25 SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 1.2.3.2.2.2 N ARROWBAND ELEMETRY Satcore RX-light Satcore RX Satcore Direct Satcore Modem TT&C Modem Narrowband Telemetry IF Reception Input port number Input frequency...
  • Page 26 SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 1.2.3.2.3 S YSTEM Satcore RX-light Satcore RX Satcore Direct Satcore Modem System Chassis Dimensions 19" x 2U x 500mm Weight < 20kg...

  • Page 27: References

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 1.2.3.3 References All signal processing components, such as coders and decoders, modulators and demodulators, frame processors, are following the CCSDS and ECSS standards and recommendations. For in-depth knowledge of the...

  • Page 28: Functional Block Diagrams

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 1.2.4 Functional Block Diagrams 1.2.4.1 Satcore Direct Signal Processing IF Demodulation Frame Synchronization Analog Processing BPSK, QPSK…64APSK Transport Layer - A/D Conversion...

  • Page 29: Satcore Rx / Rx-Light Signal Processing

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 1.2.4.2 Satcore RX / RX-light Signal Processing Demodulation Frame Synchronization Analog Processing BPSK, QPSK…64APSK Transport Layer - A/D Conversion inputs Static / Auto Filtering...

  • Page 30: Satcore Modem Signal Processing

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 1.2.4.3 Satcore Modem Signal Processing PCM Demodulation Frame Synchronization Analog Processing PCM/PM, BPSK, QPSK, RS Decoding, - A/D Conversion inputs SQPSK, GMSK...

  • Page 31: Hardware Description

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 2. HARDWARE DESCRIPTION Page 29 ZODIAC DATA SYSTEMS PROPRIETARY...

  • Page 32: System Overview

    Ana5 Option EFC Module All these electronic boards are shared by the two Zodiac Data Systems product lines, Satcore Series and Cortex Series, in order to provide to any customer, whatever mission or budget targeted, the best performances and reliability.

  • Page 33: Pc-Compatible Workstation

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 2.1.2 PC-compatible Workstation The PC-compatible workstation cabling and rack-mounting are described in [RD4]. Slide rails are recommended for an optimal integration into racks. It allows easy maintenance and enables to mount Satcore units without free space.

  • Page 34: Input / Output Description

    2.2.1 Satcore Series Front Panel description Satcore Series chassis front panel enables to access to basic monitoring functionalities through a mini-LCD display and four LED indicators. All hard drives, system and storage, are also accessible for monitoring and extraction on front panel. Two USB connectors are available.

  • Page 35: Satcore Direct Rear Panel Description

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 2.2.2 Satcore Direct Rear Panel description 2.2.2.1 Description All the connections to the user system, such as RF signals, LAN ports, VGA, USB, are directly performed on the chassis rear panel.
  • Page 36 SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 1-PPS input LVTTL/TTL high imp. Frequency reference input 10 MHz 0.2 to 5 Vpp DC  4 V 50  Downlink IF1...

  • Page 37: Time & Reference

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 Reserved Reserved Reserved Reserved Reserved Reserved Table 3: IS00452 I/O Connectors for Satcore Direct 2.2.2.2 Time & Reference The Satcore Direct embeds two separate hardware components to support payload reception and TT&C modem.
  • Page 38 SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 2.2.2.2.2 TT&C M & ODEM TIME REFERENCE CHARACTERISTICS External Reference  Input port 1 port  Frequency 5 or 10 MHz sine or square 50 ...

  • Page 39: Satcore Rx / Rx-Light Rear Panel Description

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 2.2.3 Satcore RX / RX-light Rear Panel description 2.2.3.1 Description All the connections to the user system, such as RF signals, LAN ports, VGA, USB, are directly performed on the chassis rear panel.
  • Page 40 SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 Downlink – IF Nominal 2 720MHz +/- 190MHz or 1.2GHz +/- 290MHz -10 to -50 dBm Downlink – IF Alternate 2 720MHz +/- 190MHz or 1.2GHz +/- 290MHz...

  • Page 41: Satcore Modem Rear Panel Description

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 2.2.4 Satcore Modem Rear Panel description All the connections to the user system, such as RF signals, LAN ports, VGA, USB, are directly performed on the chassis rear panel.
  • Page 42 SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 0.2 to 5 Vpp DC  4 V 50  Downlink IF1 70 MHz or 950 MHZ to 2400 MHz Bandwidth : 40MHz ...

  • Page 43: Operating Manual

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3. OPERATING MANUAL Page 41 ZODIAC DATA SYSTEMS PROPRIETARY...

  • Page 44: Quick Start

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 QUICK START 3.1.1 Start the Satcore unit 3.1.1.1 Starting the PC Workstation 1. Verify that the SATCORE has not been damaged during transportation. If needed, open the top cover and verify that the electronic sub-assemblies are in good condition.

  • Page 45: Software Exit & Shutdown

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.1.2 Software Exit & Shutdown 3.1.2.1 Exiting the Signal Processing Software To exit the Signal Processing Software (SPS), click on the SPS icon at the lower right part of the screen and select Exit.

  • Page 46: Inheritage From Cortex Series

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 INHERITAGE FROM CORTEX SERIES 3.2.1 Signal processing The Satcore product line is based on a light hardware version of the Cortex CRT and a light hardware version of the Cortex HDR.

  • Page 47: Tcp/Ip Interface For Satcore Direct Configuration

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.2.2.1 TCP/IP interface for Satcore Direct configuration The Satcore Direct is the only available equipment that embeds in the same box a Payload receiver and a TT&C modem.

  • Page 48: Figure 12: Monitoring & C

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.2.2.1.1 M & C ONITORING ONTROL PORTS As Cortex Series, Monitoring & Control data are exchanged between the Signal Processing Software (SPS) and remote M&C clients over Ethernet ports 3000 / 3001 / 3002 / 3003.

  • Page 49: Figure 13: Data Ports

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.2.2.1.2 D ATA PORTS The Satcore TCP/IP interface is fully compliant with standard STI 100013 for payload telemetry, TT&C telemetry, telecommand and simulation.
  • Page 50 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.2.2.1.4 D ATA PORT VERVIEW Next figure summarizes all data flows between Satcore Series and the outside world. New port mapping are highlighted in orange color. UMBER AXIMUM UMBER SATCORE SATCORE...

  • Page 51: Cortex Mcs Software

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.2.3 Cortex MCS Software The Cortex MCS software is the legacy monitoring & control interface for Cortex Series. It is a separate software application that communicates with Cortex product through the Cortex TCP/IP interface.

  • Page 52: Cortex Scheduling Functionality

    3.2.4 Cortex Scheduling functionality The Satcore Series embeds a scheduler functionality that provides, through a simple interface, the possibility to program in advance one or several satellite passes. According to the pass plan, the Satcore Scheduler is in charge of monitoring the system time, setting the Satcore with the appropriate satellite configuration, launching data and log recording.

  • Page 53: Satcore Web Interface

    Satcore GUI description 3.3.1.1 Overview The Satcore Series are proposed with a user-friendly web application which relies on the Satcore scheduling functionality. It allows the user to plan in advance a task with a defined satellite configuration, a start date and a stop date.

  • Page 54: Navigation Bar

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.3.1.2 Navigation bar On the top of the Satcore web application, the navigation bar allows to navigate along all the pages of the Satcore web application, including a link to a notification page.

  • Page 55: My Tasks Page

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.3.1.3 My Tasks page The “My Tasks” page allows monitoring and managing all the tasks included in the scheduler pass plan. The user has the possibility to create, edit, delete, import and download output data file directly from this page.

  • Page 56: Task Creation Page

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.3.1.3.2 M Y TASKS LIST This part lists all the tasks created or imported within the Satcore scheduling functionality. Each task is represented by a task header and a body.

  • Page 57: Live Page

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.3.1.5 Live page The Live page allows monitoring the real-time state of the Satcore. Main signal processing parameters and status are displayed and distributed in main function boxes.

  • Page 58: Figure 22: Expanded High -L

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019  TTC Uplink Channel (only for Satcore Direct and Modem) : including carrier on, sweeping, modulation on These boxes can be expanded by clicking on the triangle at the left corner. Clicking on push buttons at right corner enables to access to information corresponding to the selected system, channel or demodulator.

  • Page 59: Figure 24: Not Available Graph Example

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 Note that when a channel is disabled, the graphs are also disabled. Figure 24: Not available graph example Page 57 ZODIAC DATA SYSTEMS PROPRIETARY...

  • Page 60: Preset Page

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.3.1.6 Preset page This page allows managing pre-loaded satellite configurations. A satellite configuration is composed of static parameters which cannot be modified and some dynamic extra parameters which can be saved for next operations.

  • Page 61: System Settings Page

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 These extra-parameters can be modified, loaded and saved in the current SAT File thanks to the “Save” button. A “Save as” button is also available for creating a new SAT File from the current one. A new window opens and invites the user to enter the new label.

  • Page 62: My Data Page

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.3.1.1 My Data page The My Data page allows to manage all data files saved during the task execution. This page is divided into two categories: the Payload category and the TM category.

  • Page 63: Notification Page

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.3.1.2 Notification page The notification page allows to manage all Satcore web application notifications. With this page, the user will be able to see and delete the last Satcore notifications.

  • Page 64: Satcore Gui Operations

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.3.2 Satcore GUI operations 3.3.2.1 Starting the Satcore Web application Once the Signal Processing software is running, the Monitoring & Control web service is automatically started.

  • Page 65: Create A Task

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.3.2.3 Create a task 3.3.2.3.1 C REATE A TASK Once all settings saved, the user is able to create a new task. To achieve this, the user needs to go to the My Task page and click on the Add Task option in the Mission menu.

  • Page 66: Figure 35: As Soon As Possible Button

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 Note that the user can also use the “As soon as possible” button to define the starting and ending date for the next available time slot.

  • Page 67: Task Life Cycle

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.3.2.4 Task life cycle When a task is created, the Satcore web application automatically performs each step of the task life cycle.

  • Page 68: Figure 42: In-Progress Task Example

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.3.2.4.3 T ASK RUNNING Once a task starts, the status of this task change to “In progress” and others information are displayed for each channel (cf.
  • Page 69 SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.3.2.4.4 T ASK INFORMATION Each tasks are composed of Payload, Telemetry and Telecommand channels. These channels contain several status according to the channel.
  • Page 70 SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.3.2.4.4.2 T ELEMETRY CHANNEL DESCRIPTION  IF In: IF carrier level. Expressed in dBm. In FM mode, gives the signal level measured in the 1-MHz IF bandwidth.

  • Page 71: Delete A Task

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 Figure 44: Corrupted task example 3.3.2.5 Delete a task Once the data file saved, the user have the possibility to delete the task from the task list. To do this, he needs to click on the delete button.

  • Page 72: Figure 47: M Ydata Page - D

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 To delete the data file definitively, the user needs to use the delete button. Be careful, this action is not reversible and cannot be undone.

  • Page 73: Front Panel Display

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 FRONT PANEL DISPLAY 3.4.1 Overview The front panel is composed of:  A 16*2 display LCD screen  An integrated LED backlit 6-button translucent silicon keypad Figure 49 : Front Panel display At start-up, the screen displays the “Main”...

  • Page 74: Capabilities

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.4.2 Capabilities The front panel display allows the modification of  Machine Name  Network settings (IP address, Mode, Gateway address and Subnet Mask) ...

  • Page 75: Menu Description

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.4.3 Menu description Main Enter System Modem Shutdown Enter Enter Hostname Temperatures Network Status LAN0 + Connection Time & Frequency LAN1 + Connection...

  • Page 76: Functional Description

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.4.4 Functional Description 3.4.4.1 Shutdown system This feature allows to perform a “Shutdown” or a “Restart” of the workstation. From Main menu, press successively the “Enter” button, the “Right” button and the “Enter” button.

  • Page 77: Rename Workstation

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.4.4.2.2 C HANGE ADDRESS ASK OR ATEWAY DDRESS IN TATIC MODE This feature allows to change the IP Address, the Subnet Mask and the Gateway Address in “Static” mode. Refer to previous chapter for setting the LAN mode in Static.

  • Page 78: Reset Factory

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.4.4.4 Reset Factory This feature allows to install the Satcore application that was provided at unit delivery. All software components are automatically shut down before installation.

  • Page 79: Configure Additional Status

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 3.4.4.8 Configure additional status The front panel display allows the user to add up to 20 status in the MISC submenu. To select the additional status, the user shall update the file “ipc_ihm.ini” that can be found in the folder...
  • Page 80 SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 For a “List” option, all values from 0 to the maximum value shall have a transcription, as detailed below . Example: Status 46 in TT&C IF Receiver table:...

  • Page 81: Maintenance Procedures

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 4. MAINTENANCE PROCEDURES Page 79 ZODIAC DATA SYSTEMS PROPRIETARY...

  • Page 82: Preventive Maintenance

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 PREVENTIVE MAINTENANCE 4.1.1 Important Caution & Safety Instructions Refer to important safety instructions provided in Chassis User’s manual in [RD4] of this document.

  • Page 83: Cpu Load Considerations

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 4.1.2.4 CPU Load Considerations ZODIAC DATA SYSTEMS DOES NOT WARRANTY SATCORE PERFORMANCES IF ADDITIONAL SOFWARE ARE LOADED / EXECUTED ON THE MACHINE.

  • Page 84: Hardware Monitoring & Repair

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 HARDWARE MONITORING & REPAIR 4.2.1 PC Workstation 4.2.1.1 System monitoring The chassis front panel gives some system monitoring information through several indicators : ...

  • Page 85: Led Indicators

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 4.2.2 LED Indicators 4.2.2.1 Ana5 board (Satcore Direct & Modem) The Ana5 board is the newest analog board constituting the Main Signal Processing board. It covers all capabilities of Analog uplink board, Analog downlink board and Video board.

  • Page 86: Temperature Alarm

    SATCORE SERIES D102751 ZDS Ref : Issue : 1 Rev.: 0 USER’s MANUAL Date : July 11, 2019 4.2.3 Temperature Alarm 4.2.3.1 What to do in case of Temperature Alarm In case of temperature alarm :  Immediately shutdown and switch off the chassis to avoid any damage to the hardware.

  • Page 87: Software Upgrade & Installation

     Windows Operating System : to re-install the operating system after a disk failure, use ZODIAC DATA SYSTEMS DVD-ROM Windows 10 IoT for CORTEX and SATCORE Series.  Signal Processing software. The CD ROM contains the Signal Processing Software (SPS), Web application, Electronic board software (disk-resident part only) and the user documentation.
