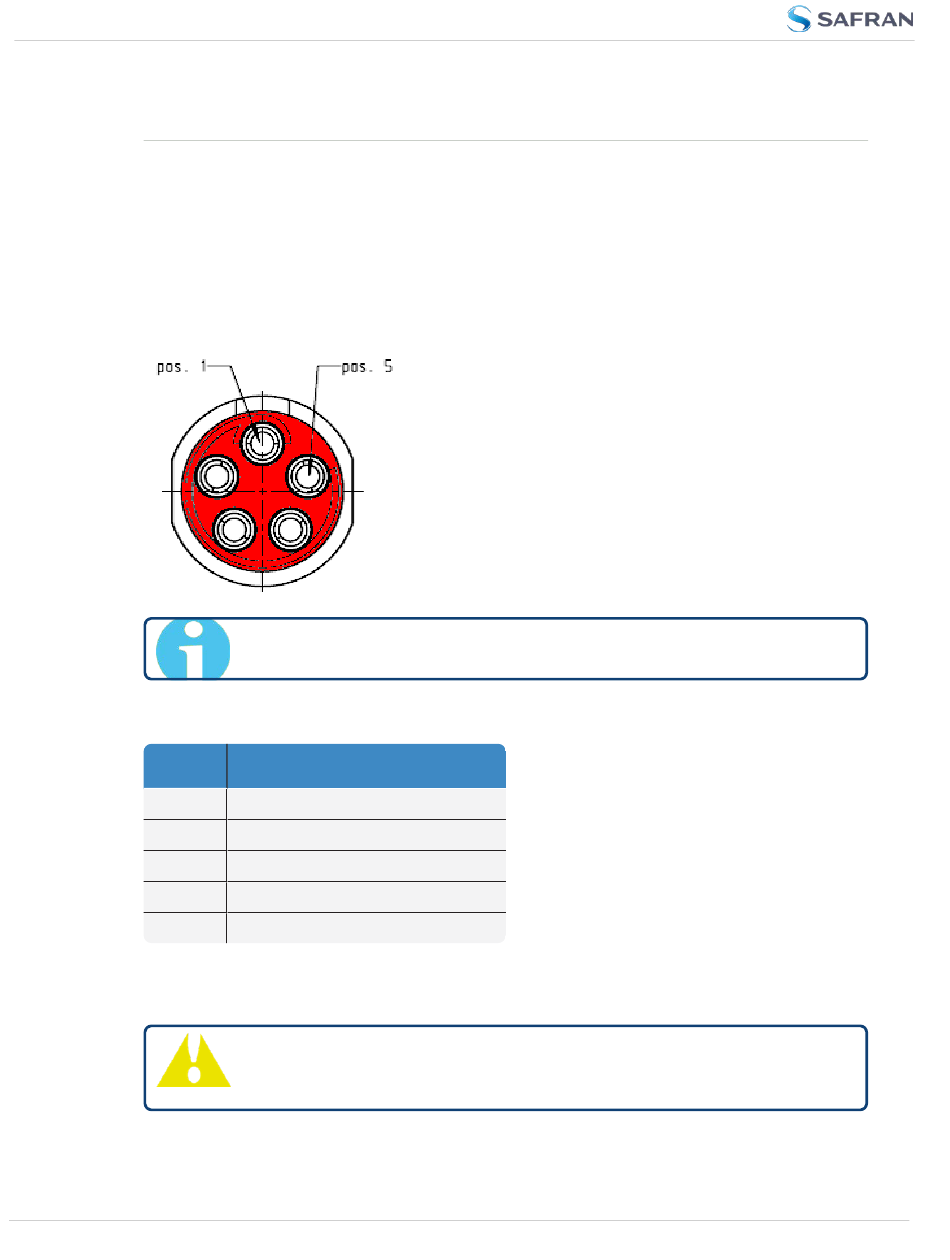

1.5  Connectors and their Pinouts
1.5

Connectors and their Pinouts

All of VersaSync's connectors are provided at the front panel of the unit, below
the Status LEDs. The Advanced Military Connectors are keyed for foolproof con-
nectivity and offer a push- pull locking mechanism. Since the connectors are
keyed, you should not need to force connectivity. Inspect all connectors and
cables for damage prior to connection.
1.5.1

Power Connector

Table 1-5:
Pin
1
2
3
4
5
This product is designed to handle a maximum voltage of up to 32 V
supplies with higher voltage or transient/ cranking power will require a power
conditioner or surge blocker.
10
Note:
View in mating direction from front.
Power connector pinout
Signal
V
(10 to 32 V)
Main
-not used-
V
(10 to 32 V)
Standby
GND (to Standby)
GND (to Main)
Caution:
Reversed polarity can blow an internal fuse that protects
the product from damage. Use care when building power cables.
