CHAPTER 1 GENERAL INFORMATION
Mounting Conditions of Circuit Card
(3) Mounting Line/Trunk Cards in PIM 0 for Backup CPU System
Use slots LT00 to LT10 to mount line/trunk cards in PIM 0.
LT10 slot (FP10 slot) on PIM 0 is not available for a line/trunk card if the system is configured
with three or more PIMs, as this slot is used to mount the FP card for that configuration.

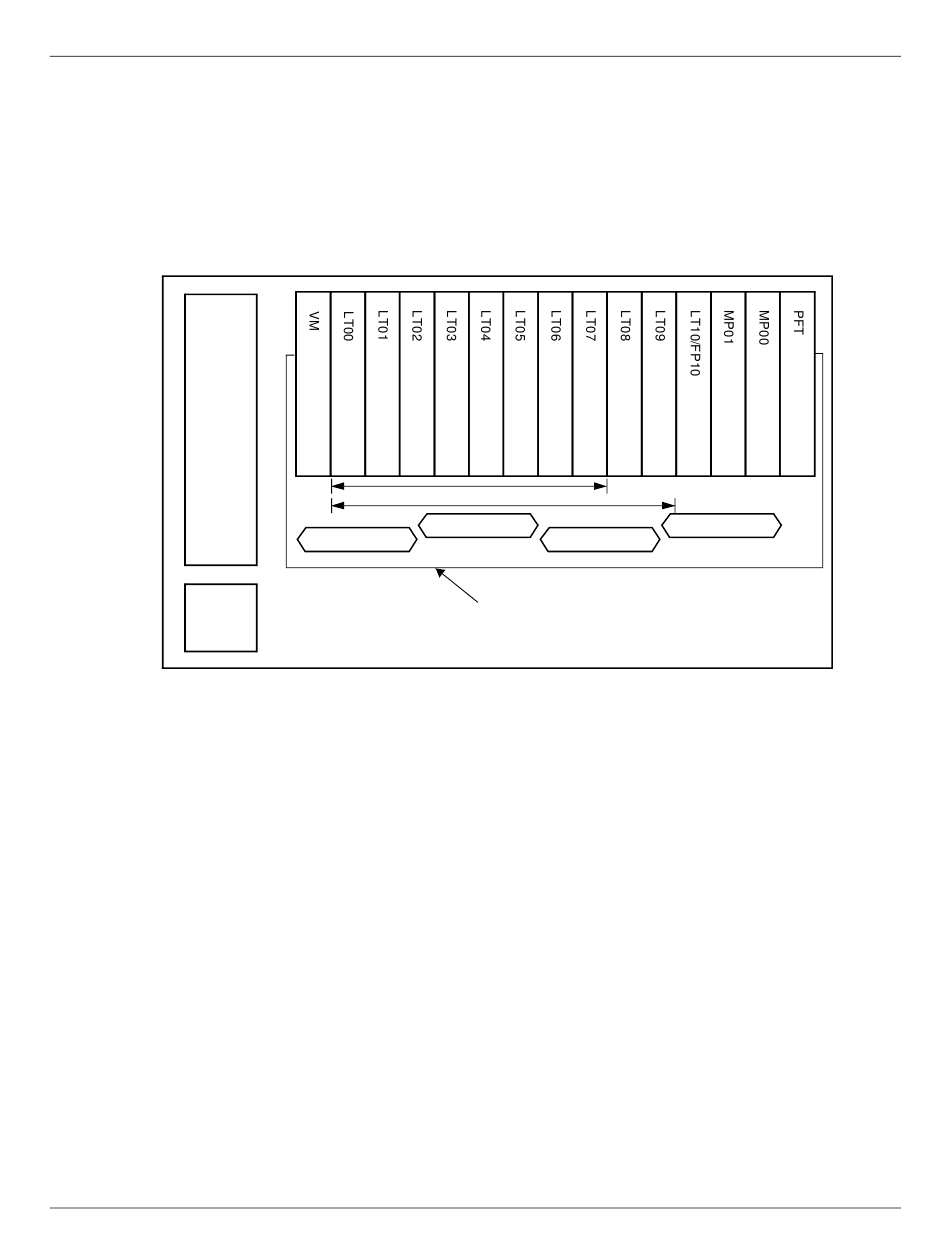

Figure 1-15 Line/Trunk Card Mounting Slots (Backup CPU)

AC/DC
PIM 0
PWR
(For
Backup
CPU)
DC/DC
PWR
*1 8-port Line/Trunk cards can be mounted i n LT00 to LT07 slots.
*2 4-port Line/Trunk cards can be mounted i n LT00 to LT09 slots.
*3 LT10 slot is available for a 4-port line/trunk card only when the system is configured with
two or less PIMs.
Page 42
*
LTC1
LTC0
BWB
FRONT
*
3
1
*
2
LTC2
NEAX2000 IVS
LTC3
2
Installation Procedure Manual
ND-70928 (E), Issue 3.0
