CHAPTER 2 INSTALLATION
Digital Trunk Interface (DTI)
STEP 2: Connect the LT connector on the PZ-M542/PZ-M557 card to the LTC connector on
BWB in PIM.
NOTE:
Two PZ-M542/PZ-M557 cards cannot be mounted on the adjoining LTC connectors.
LTC0 and LTC2 or LTC0 and LTC3 or LTC1 and LTC3 are mountable.

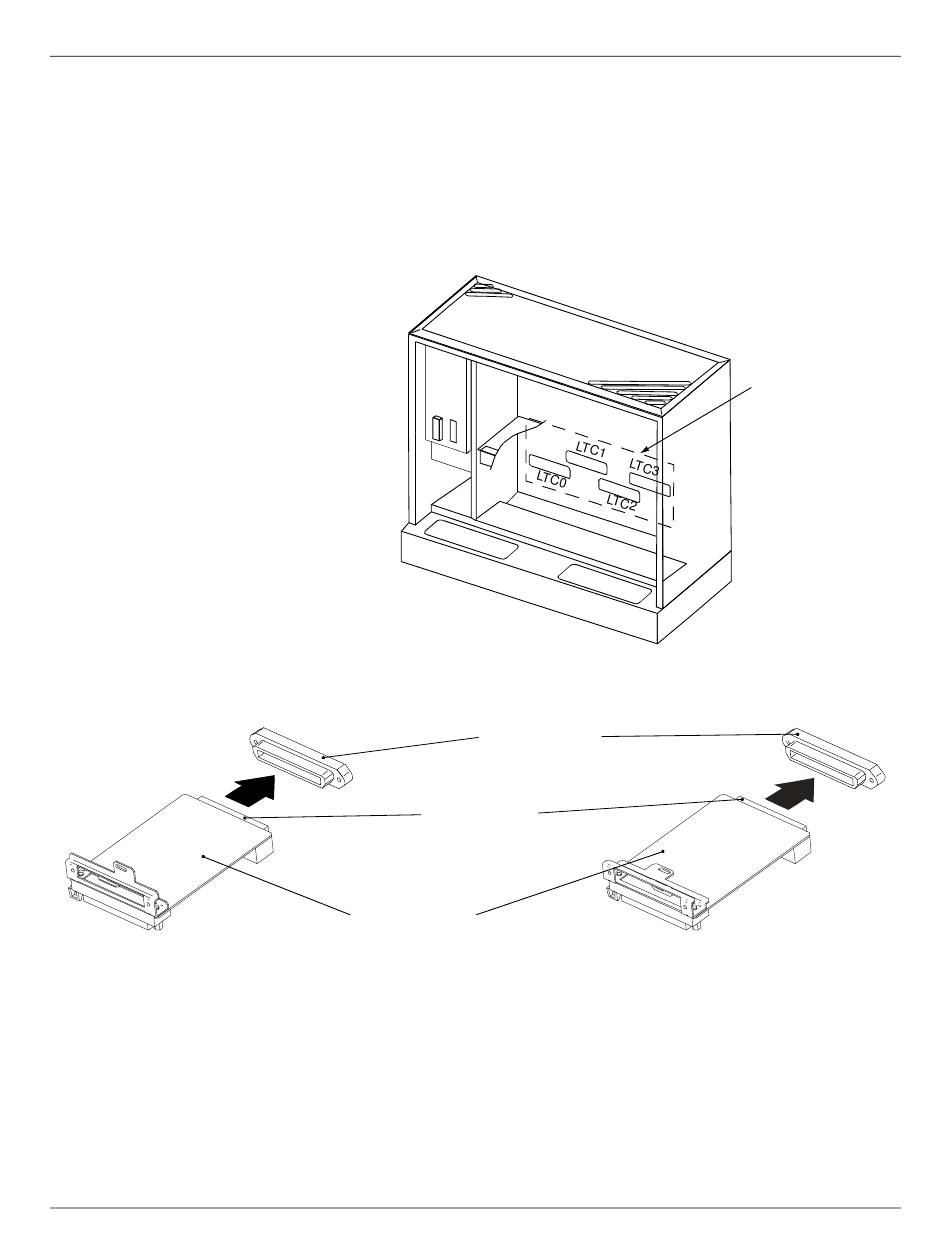

Figure 2-59 Mounting of PZ-M542/PZ-M557 Card (1 of 2)
When connecting to LTC1 or LTC3
Page 152
PIM
LTC CONNECTOR
LT CONNECTOR
PZ-M542/PZ-M557
LTC CONNECTOR
When connecting to LTC0 or LTC2
2
NEAX2000 IVS
Installation Procedure Manual
ND-70928 (E), Issue 3.0
