CHAPTER 2 INSTALLATION
SN610/708/709/712/741 ATTCON (DLC)
STEP 3: Plug the line cord into the modular jack located at the bottom of the console.
For the MDF cross connection refer to the following;
• SN610 ATTCON
• SN610/708/709/712/741 ATTCON (DLC)

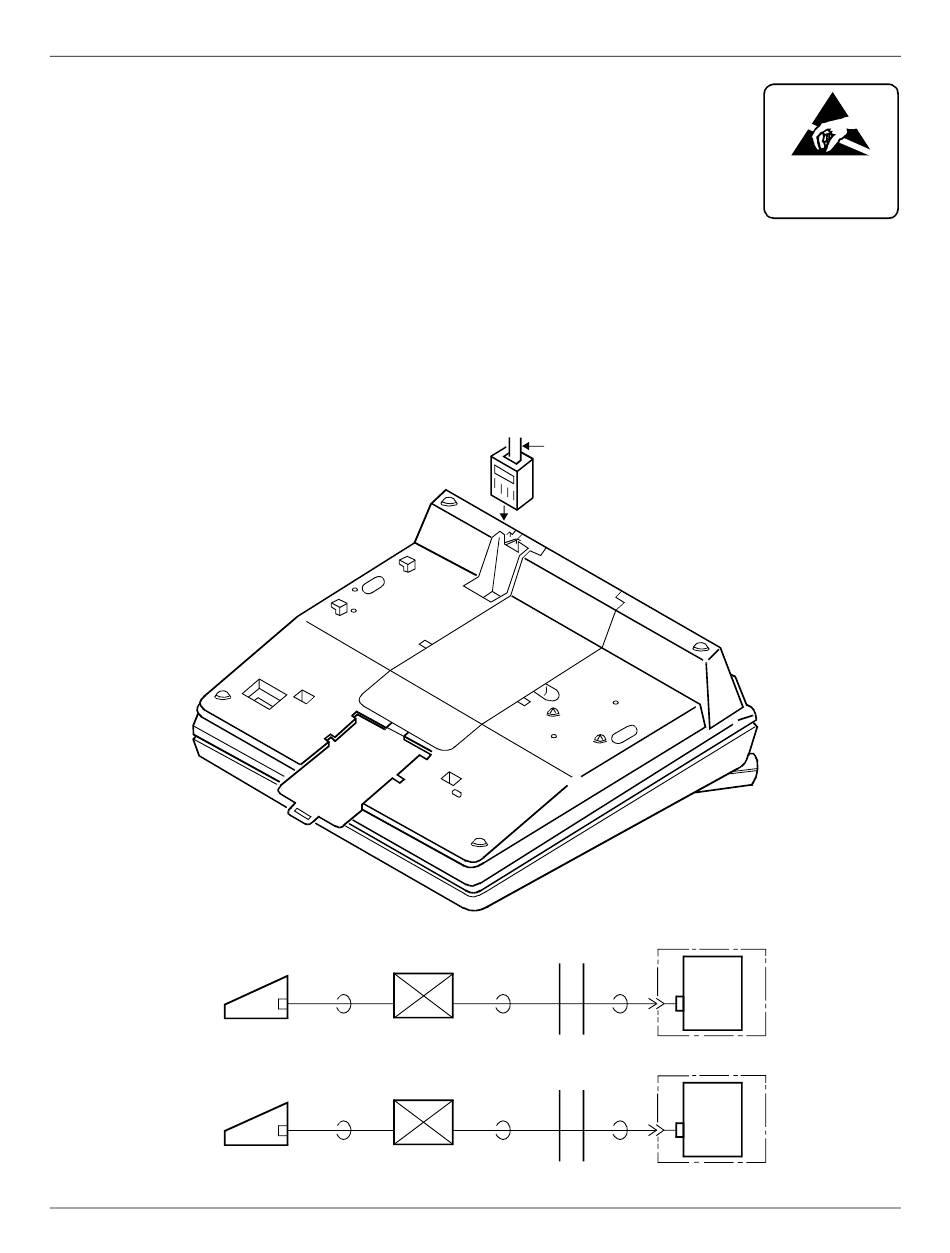

Figure 2-81 Cable Connection to SN610/708/709/712/741 ATTCON

SN708/709/712/741 ATTCON
SN610 ATTCON
Page 182
MODULAR
TERMINAL
1P 1P
MODULAR
TERMINAL
2P 2P
LINE CORD
PBX
MDF
1P
DLC
PBX
MDF
2P
2DLCC/
4DLCF
2
NEAX2000 IVS Installation Procedure Manual
ATTENTION
Contents
Static Sensitive
Handling
Precautions Required
ND-70928 (E), Issue 3.0
