CHAPTER 2 INSTALLATION
SMDR/PMS/MCI/CIS Printer/Hotel Printer (AP00)
• Connection via MODEM
When the cable length between the PBX and the terminal is more than 15 m (49.2 ft),
MODEMs are required. Use RS RORM-4(S) CA-A as shown below. See also

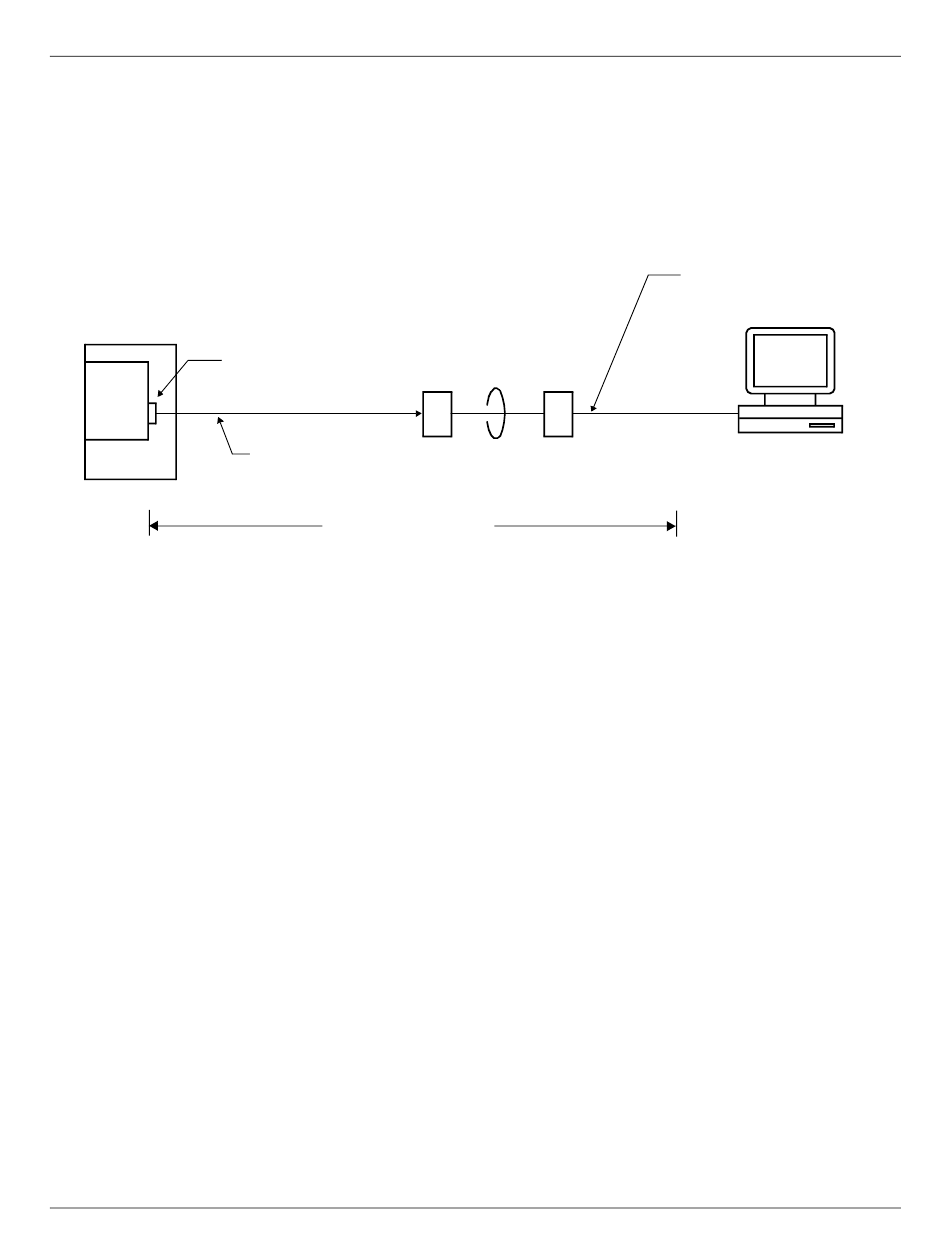

Figure 2-107 SMDR/PMS/MCI Terminal Connection via MODEMs

PBX
(PIM 0 - PIM 7)
RS0 - RS3
PN-
AP00-B
Page 212
RS NORM-4 CA-A/
MODEM
RS NORM-4S CA-A:
4m (13.1 ft.)
MORE THAN 15 m (49.2 ft.)
2P
TO S-10 PORT
MODEM
MODEM: FULL DUPLEX (4W)
NEAX2000 IVS
Figure
2-105.
INTERFACE CABLE
(FOR STRAIGHT
CONNECTION)
SMDR0/SMDR1/
PMS/MCI (VMS)
1200 bps (LEASED TYPE)
2
Installation Procedure Manual
ND-70928 (E), Issue 3.0
