SMDR/PMS/MCI/CIS Printer/Hotel Printer (AP00)

The PN-AP00-B card provides four S-10 interface ports for SMDR, PMS, MCI, CIS Printer, Hotel
Printer.
(1) SMDR/PMS/MCI (VMS)
• Direct Connection
Connect the terminal to the RS0-RS3 port of the PN-AP00-B card using the RS RVS-15 (S)
CA-A/RS RVS-4 (S) CA-A/RS RVS-4 (S) CA-C as shown below .See also

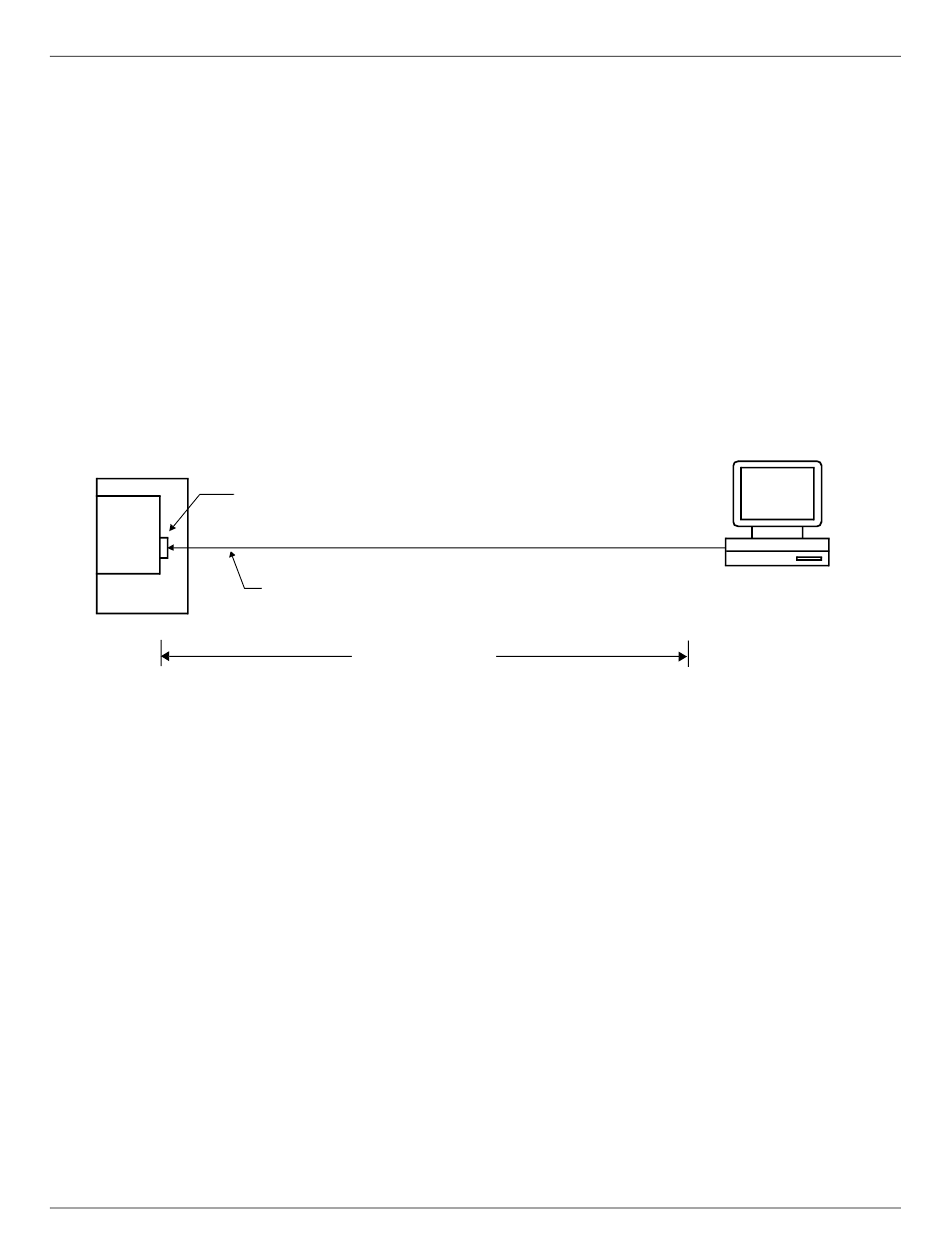

Figure 2-106 SMDR/PMS/MCI Terminal Direct Connection

PBX
(PIM 0 - PIM 7)
PN-
AP00-B
2
NEAX2000 IVS Installation Procedure Manual
ND-70928 (E), Issue 3.0
RS0 - RS3
RS RVS-15 (S) CA-A : 15 m (49.2 ft.)
RS RVS-4 (S) CA-A/RS R VS-4 (S) CA-C: 4 m (13.1 ft.)
15 m (49.2 ft.) MAX.
CHAPTER 2 INSTALLATION
SMDR/PMS/MCI/CIS Printer/Hotel Printer (AP00)
TO S-10 PORT
SMDR0/SMDR1/
PMS/MCI (VMS)
Figure 2-104.
