CHAPTER 3 LAMP INDICATIONS AND SWITCH SETTINGS
PZ-M557 (CONN)

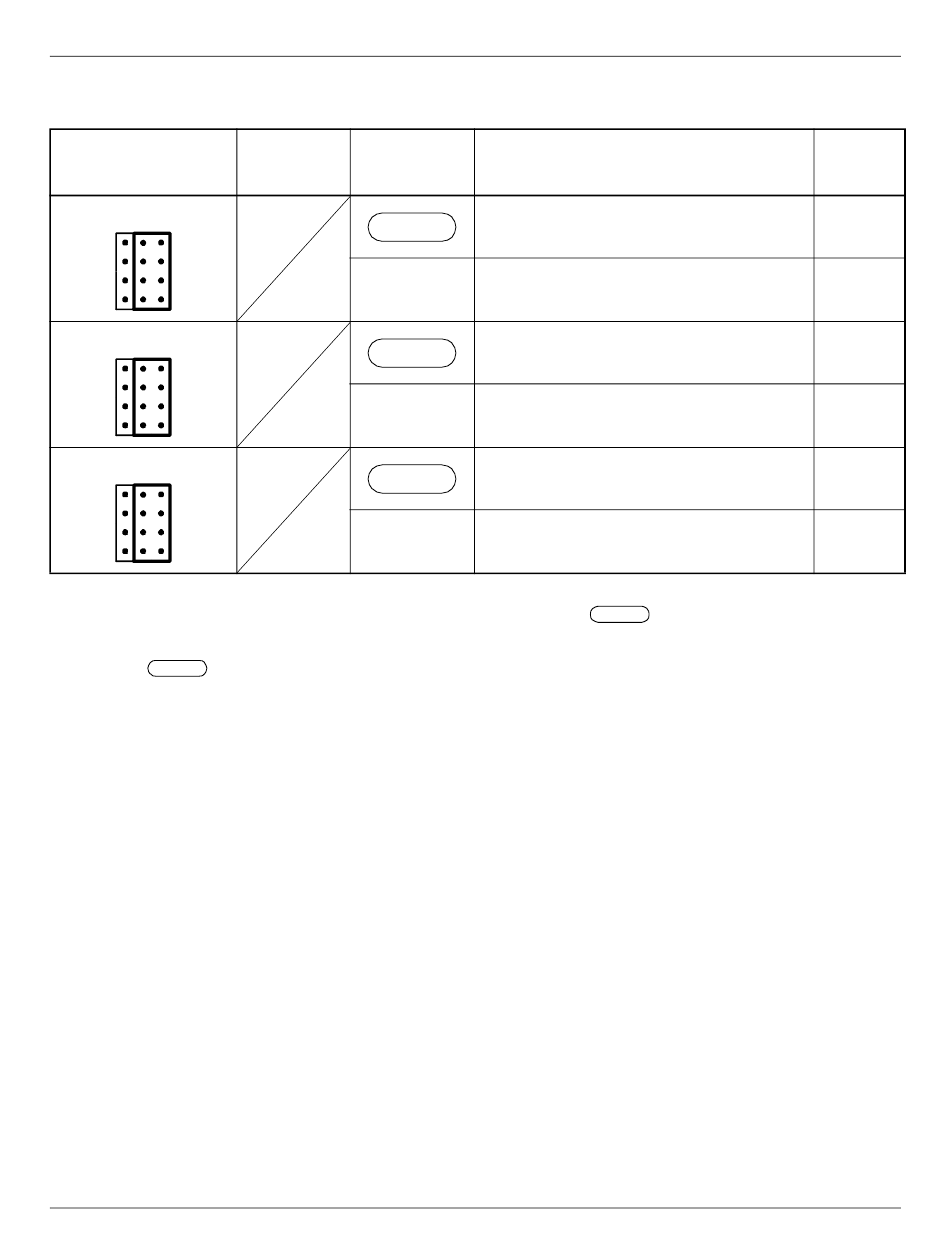

Switch Settings
SWITCH NAME
JP0
JP1
JP2
The figure in the SWITCH NAME column and the position in
column indicate the standard setting of the switch. When the switch is not set as shown by the
figure and
, the setting of the switch varies with the system concerned.
Page 398
SWITCH
SETTING
NUMBER
POSITION
RIGHT
LEFT
RIGHT
LEFT
RIGHT
LEFT
FUNCTION
For coaxial connectors
(No. 0 circuit)
For champ connector
(LT connector) (No. 0 circuit)
For coaxial connectors
(No. 1 circuit)
For champ connector
(LT connector) (No. 1 circuit)
For coaxial connectors
(No. 2 circuit)
For champ connector
(LT connector) (No. 2 circuit)
in the SETTING POSITION
NEAX2000 IVS
CHECK
2
Installation Procedure Manual
ND-70928 (E), Issue 3.0
