(3) Connect the champ connector of each MDF cable to the LTC connector located on the PIM
using the screws provided, as shown below.
(4) Secure the MDF cables to the PIM using tie wraps.

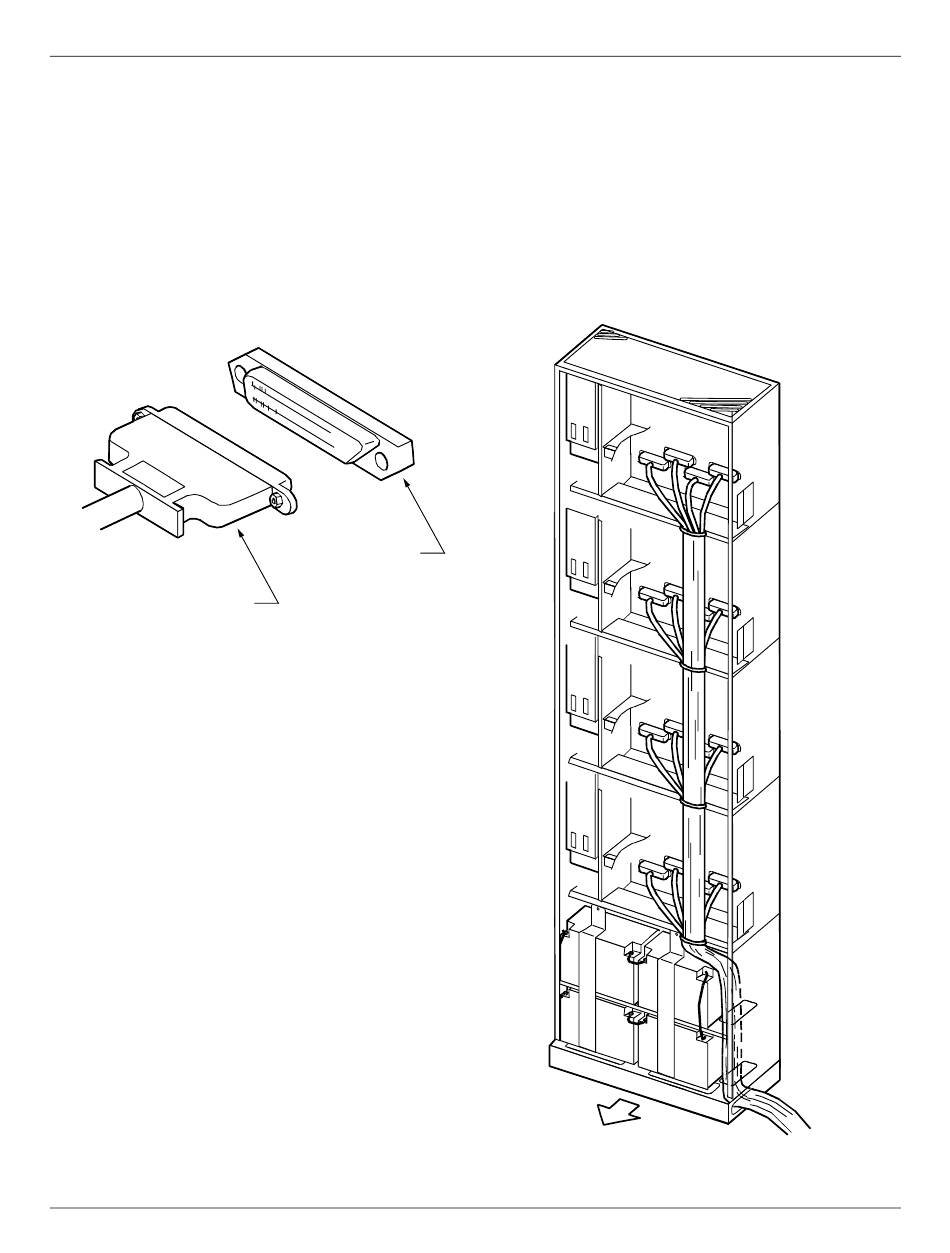

Figure 2-46 Cable Running to the External MDF (1 of 2)
(a) Using cable hole of BASE
CHAMP CONNECTOR
2
NEAX2000 IVS
Installation Procedure Manual
ND-70928 (E), Issue 3.0
LTC CONNECTOR
CHAPTER 2 INSTALLATION
PIM 3
PIM 2
PIM 1
PIM 0
BATTM
FRONT
Cable Running to MDF
TO MDF
Page 117
