Application Processor Card Mounting Conditions

(1) System Capacity for Application Processor Card
Maximum 24 cards per system
Maximum 256 ports per system
(2) Mounting Application Processor Cards in Regular PIM 0
Use slots AP00 to AP11 to mount application processor cards in PIM 0.
AP11 Slot (FP11 slot) of PIM 0 is not available for application processor if the system is
configured with three or more PIMs, as this slot is used to mount the FP card for that
configuration.

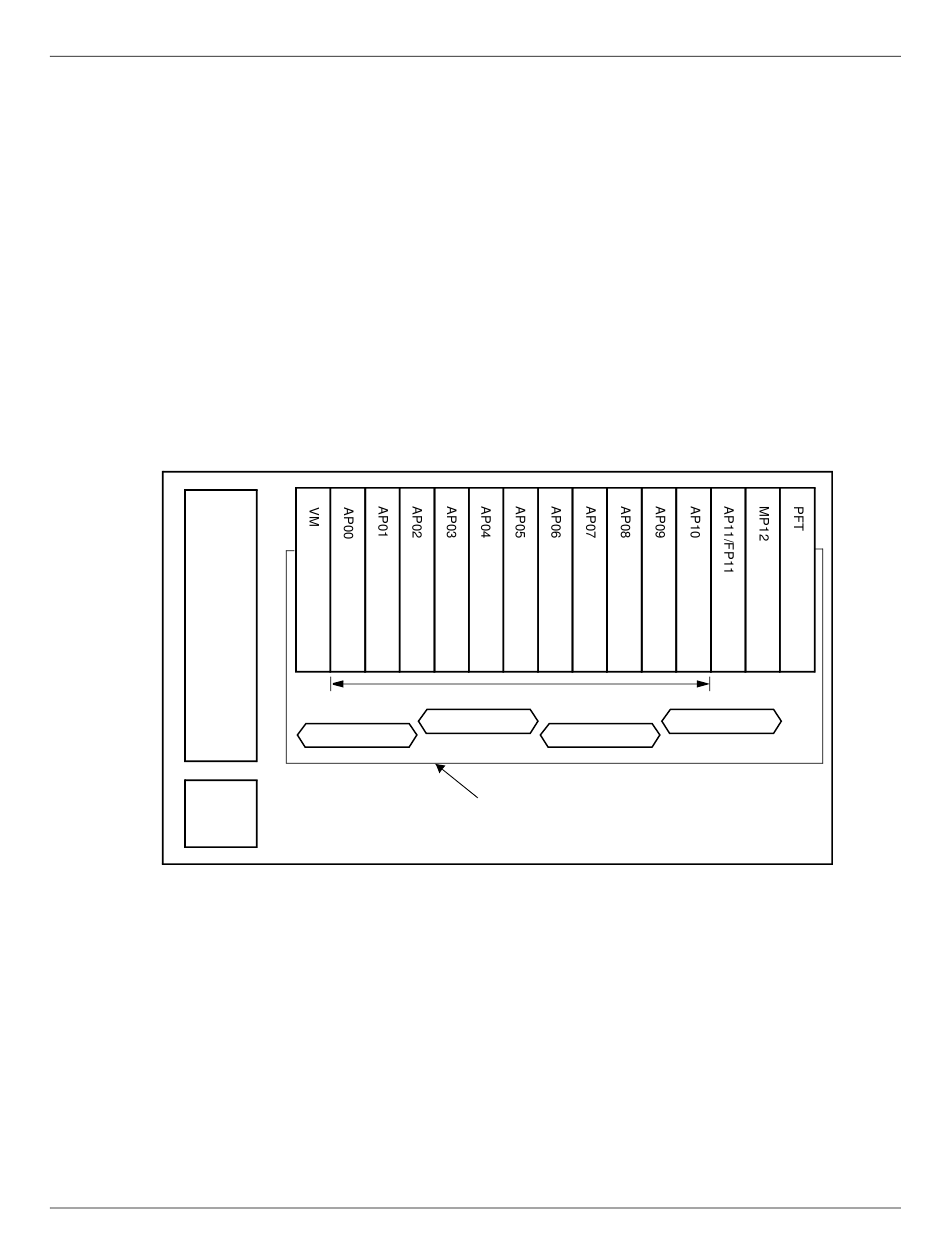

Figure 1-11 Application Processor Card Mounting Slots (PIM0)

AC/DC
PWR
PIM 0
DC/DC
PWR
*1 Application processor cards can be mounted in AP00 to AP10 slots.
*2 AP11 slot is available for application processor cards only when the system is configured
with two or less PIMs.
2
NEAX2000 IVS Installation Procedure Manual
ND-70928 (E), Issue 3.0
*
LTC1
LTC0
BWB
FRONT
CHAPTER 1 GENERAL INFORMATION
Mounting Conditions of Circuit Card
1
LTC2
*
2
LTC3
