Built-in SMDR (MP)

Built-in SMDR (MP)
The MP card provides a S-10 interface port for SMDR/MCI.
No.0/No. 1 Port : Async.: 1200/2400/4800/9600/19200 bps
• Direct connection
Connect the SMDR terminal and/or the VMS to the RS 0-RS 1port of the PN-CP14/
PN-CP20 card using the RS RVS-15 (S) CA-A/RS RVS-4 (S) CA-A/RS RVS-4 (S) CA-C as
shown below.

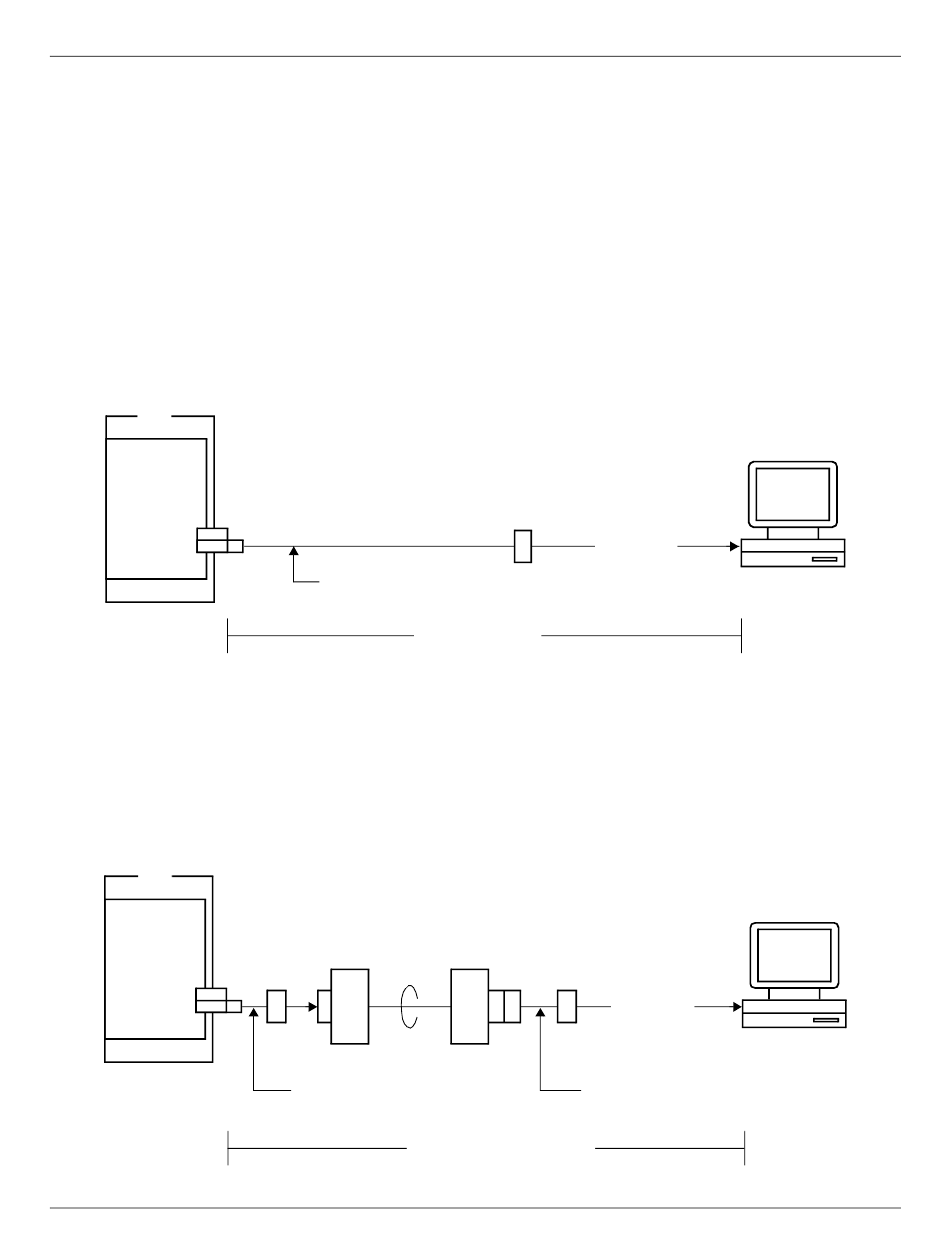

Figure 2-102 SMDR/MCI Terminal Direct Connection

PBX
PN-CP14
PN-CP20
RS 1
RS 0
• Connection via MODEM
When the cable length between the PBX and the terminal is more than 15 m (49.2 ft.),
connect the SMDR terminal to the RS0 Port of the PN-CP14 card through the MODEMs
using the RS NORM-4 (S) CA-A as shown below.

Figure 2-103 SMDR Terminal Connection via MODEMs

PBX
PN-CP14
PN-CP20
RS 1
RS 0
Page 208
RS RVS-15 (S) CA-A: 15 m (49.2 ft.)
RS RVS-4 (S) CA-A/RS RVS-4 (S) CA-C: 4 m (13.1 ft.)
15 m (49.2 ft.) MAX.
MODEM
MODEM
2P
RS NORM-4 CA-A/
RS NORM-4S CA-A: 4 m (13.1 ft.)
MORE THAN 15 m (49.2 ft.)
TO S-10
PORT
SMDR0/SMDR1/
MCI (VMS)
TO S-10
PORT
SMDR0/SMDR1/
MCI (VMS)
MODEM INTERFACE
CABLE (STRAIGHT)
2
