(2) CIS Printer/Hotel Printer

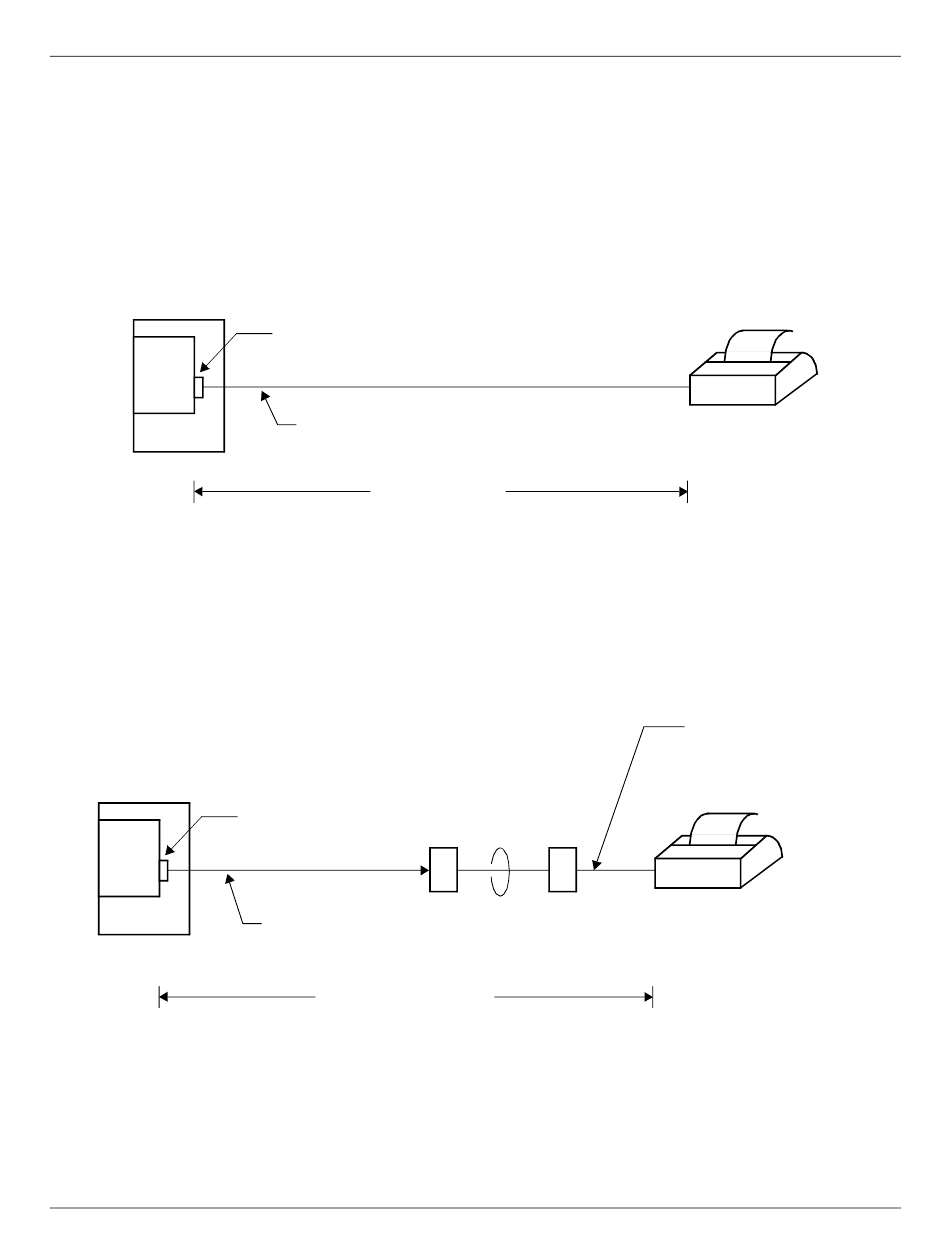

• Direct Connection
Connect a maximum of two printers to the PN-AP00-B using the RS PRT-15(S) CA-A as
shown below.
PBX
PN-
AP00-B
• Connection via MODEM
When the cable length between the printer and the PBX is more than 15 m (49.2 ft.),
MODEMs are required.
PBX
PN-
AP00-B
2
NEAX2000 IVS Installation Procedure Manual
ND-70928 (E), Issue 3.0

Figure 2-108 Printer Direct Connection

RS0-RS3
CONNECTOR
RS PRT-15 CA-A/
RS PRT-15S CA-A : 15 m (49.2 ft.)
MAX. 15 m (49.2 ft.)

Figure 2-109 Printer Connection via MODEMs

RS0-RS3
CONNECTOR
RS NORM-4 CA-A/
RS NORM-4S CA-A : 4 m (13.1 ft.)
MORE THAN 15 m (49.2 ft.)
SMDR/PMS/MCI/CIS Printer/Hotel Printer (AP00)
2P
MODEM MODEM
CHAPTER 2 INSTALLATION
PRINTER0/PRINTER1
INTERFACE CABLE
(FOR STRAIGHT
CONNECTION)
PRINTER0/PRINTER1
MODEM: FULL DUPLEX (4W)
1200 bps (LEASED TYPE)
Page 213
