Pn-4Vcti (Vct) - NEC NEAX2000 IVS2 Installation Manual

CHAPTER 3 LAMP INDICATIONS AND SWITCH SETTINGS

PN-4VCTI (VCT)

PN-4VCTI (VCT)

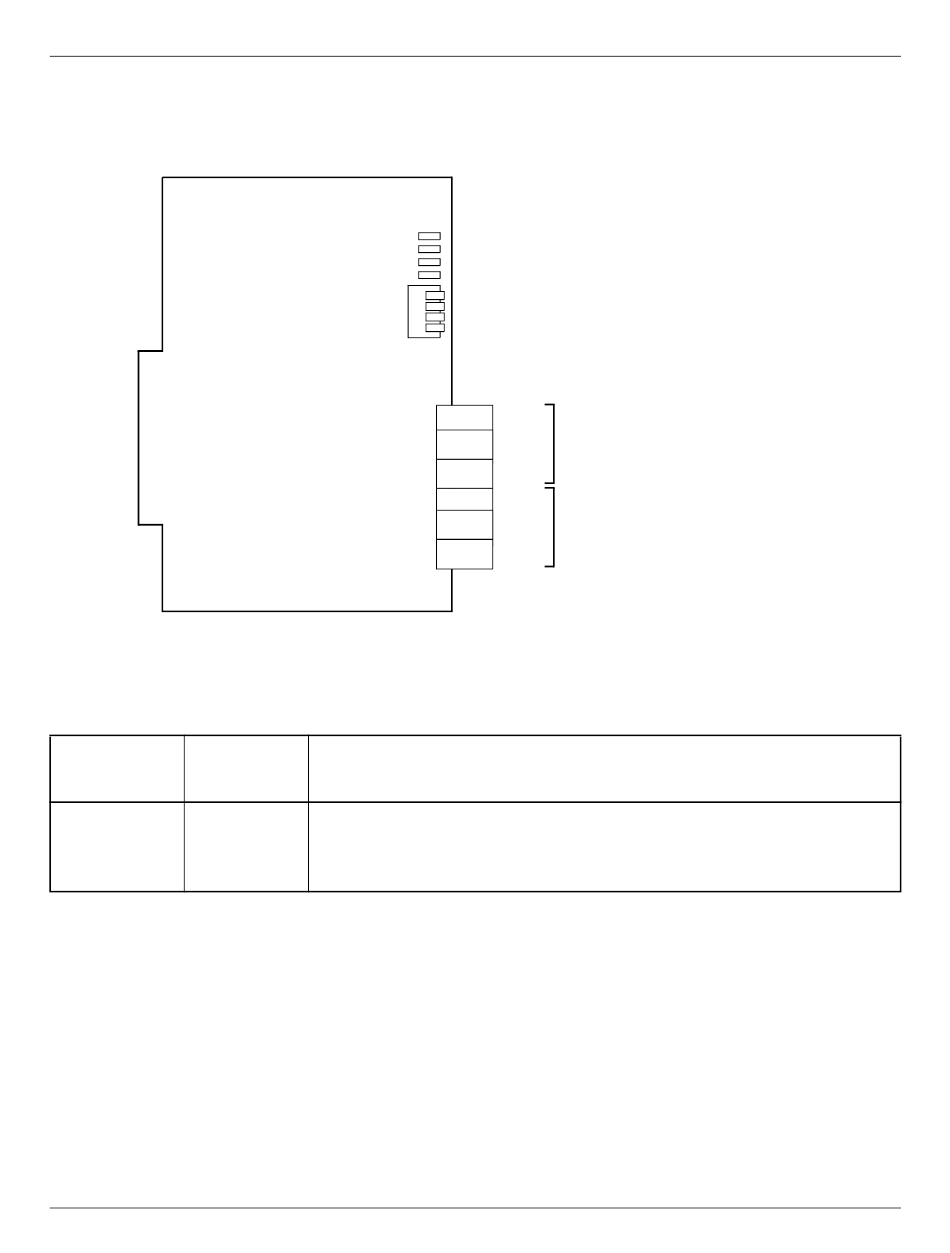

Locations of Lamps, Switches, and Connectors
Lamp Indications
LAMP
COLOR
NAME
BL0-3 Red
Page 474
BL3
BL2
BL1
BL0
SW1
• Remains lit when the corresponding circuit is in use.
• Flashes at 60 IPM when the corresponding circuit is in
make-busy state or system data for this card is not assigned.
IPTA/IPT:
IPTA
TO PN-IPTB VCTA/VCT CONNECTOR
OR
TO OTHER PN-4VCTI CARD EXPA/EXP
IPT
CONNECTOR
EXPA
EXPA/EXP:
TO IPTA/IPT CONNECTOR OF
EXP
OTHER PN-4VCTI CARD
FUNCTION
NEAX2000 IVS
2
Installation Procedure Manual
ND-70928 (E), Issue 3.0
