NEC NEAX2000 IVS2 Installation Manual page 282

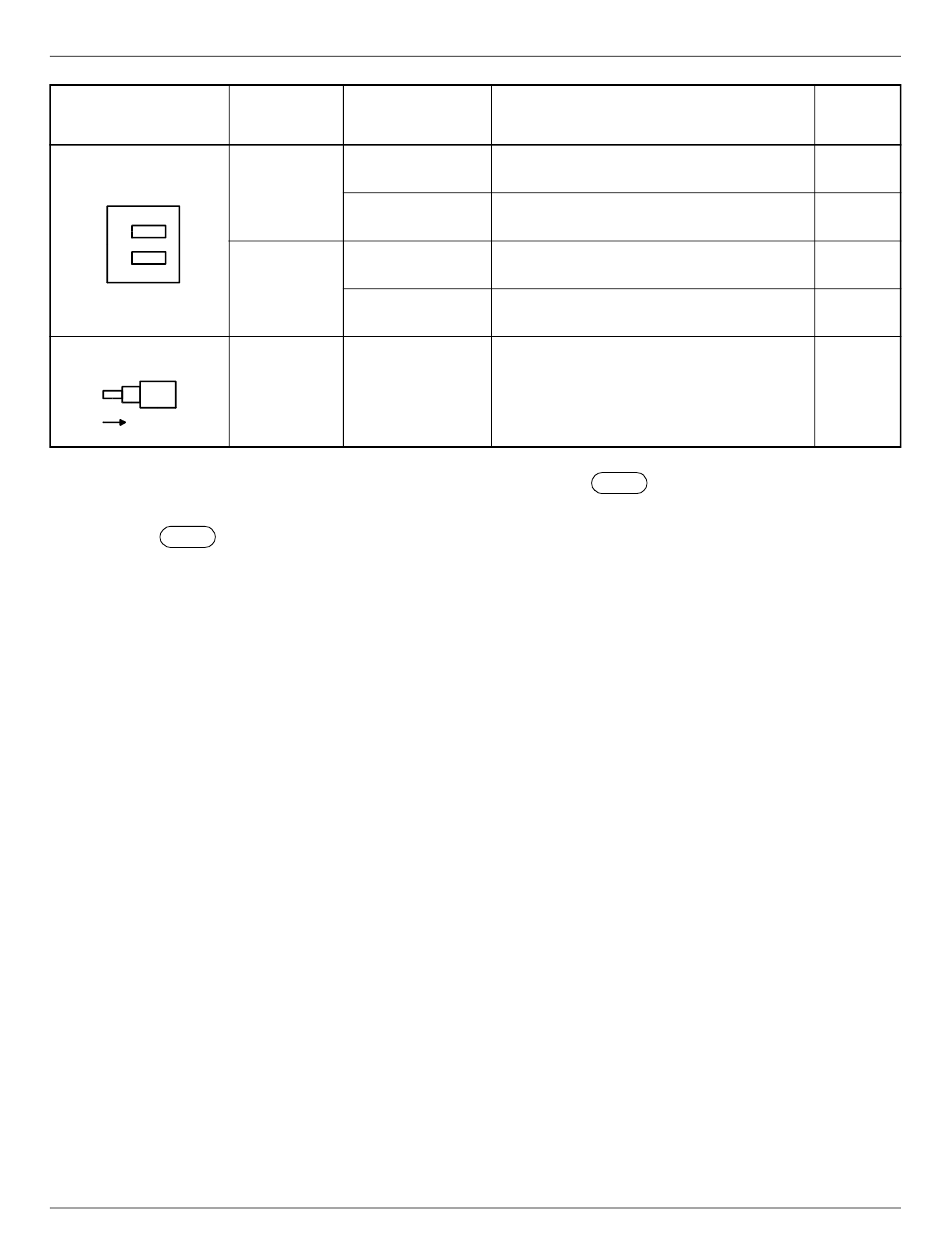

SWITCH NAME
SW301 (DIP SW)
90 V 75 V
1
OFF ON
2
25 Hz 20 Hz
SW102
The figure in the SWITCH NAME column and the position in
column indicate the standard setting of the switch. When the switch is not set as shown by the
figure and , the setting of the switch varies with the system concerned.
2
NEAX2000 IVS Installation Procedure Manual
ND-70928 (E), Issue 3.0
CHAPTER 3 LAMP INDICATIONS AND SWITCH SETTINGS
SWITCH SETTING
NUMBER POSITION
ON
1
OFF
ON
2
OFF
PRESS
MOMENTARILY
FUNCTION
CR Voltage: 75 Vrms
CR Voltage: 90 Vrms
Frequency: 20 Hz
Frequency: 25 Hz
To start each PIM on battery
power when AC power is not
provided
in the SETTING POSITION
PZ-PW126 (AC/DC PWR)
CHECK
