CHAPTER 2 INSTALLATION
Power Cable Connection

Connection of AC CORD-B

(1) Connect the AC CORD-B to the CN1 connector on the PZ-PW121/PZ-PW126 card.
(2) Screw the ground cable of the AC CORD-B to the frame ground terminal on the PIM.
PZ-PW121/PZ-PW126
AC CORD-B
Page 94

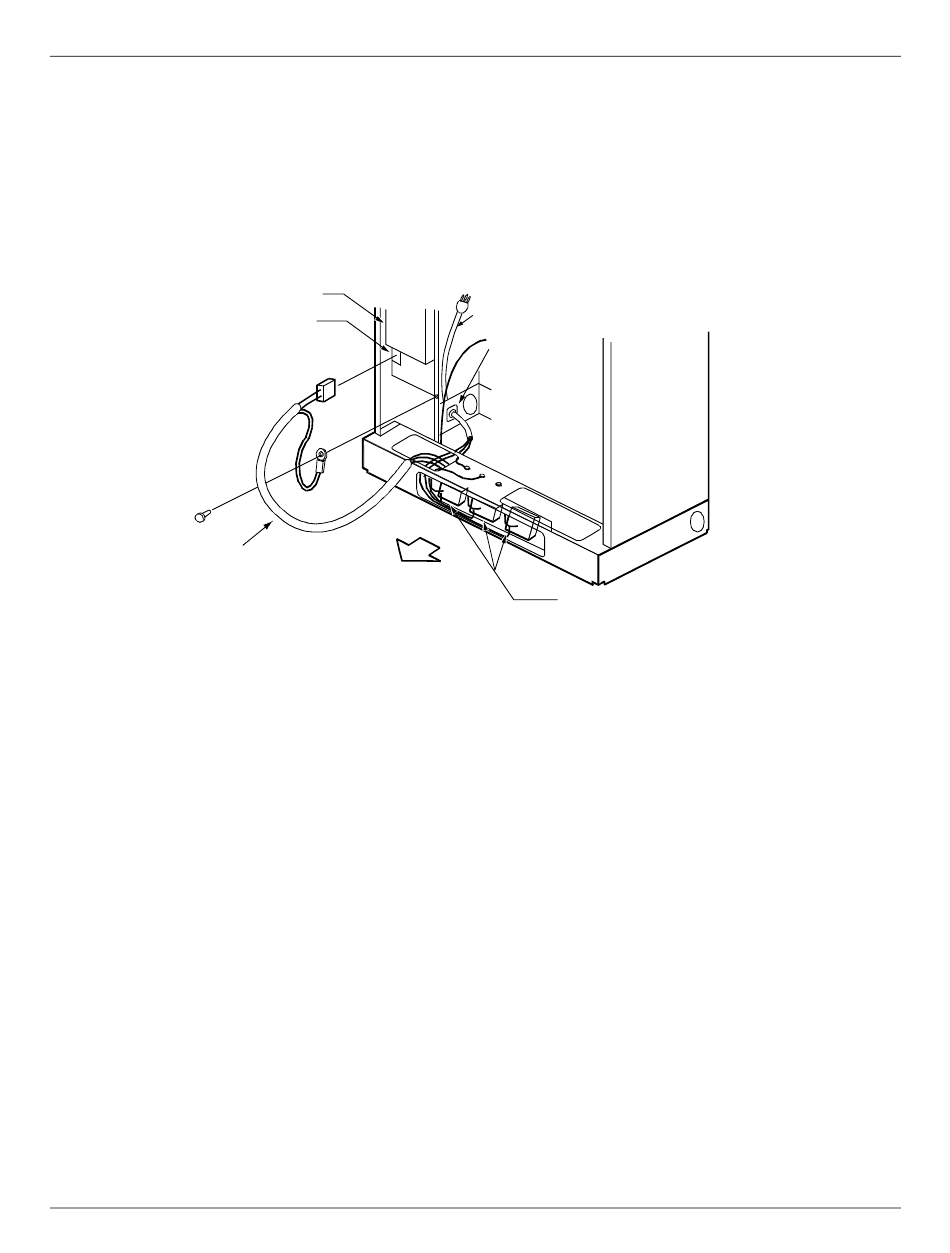

Figure 2-29 Connection of AC CORD-B

CN1
FRONT
TO 120V/240V AC POWER SOURCE
AC CORD-D
CORD BUSH
TERMINAL BLOCKS
NEAX2000 IVS
BASE
2
Installation Procedure Manual
ND-70928 (E), Issue 3.0
