CHAPTER 2 INSTALLATION

Power Cable Connection

(3) When you need a –48V DC power supply installed for a Cell Station (Zone Transceiver) in

WCS system or when PN-4LDT, PN-4LLC, PN-6DLC card is installed, perform the following

procedure. If not, skip this procedure and go to Item (4).

STEP 1: Attach four screws preliminary to the PZ-PW122 card.

STEP 2: Mount the PZ-PW122 card into the PIM which accommodates the CSI, 4LDT, 4LLC,

6DLC cards and fasten the screws.

Screws are attached to the PZ-PW122 card.

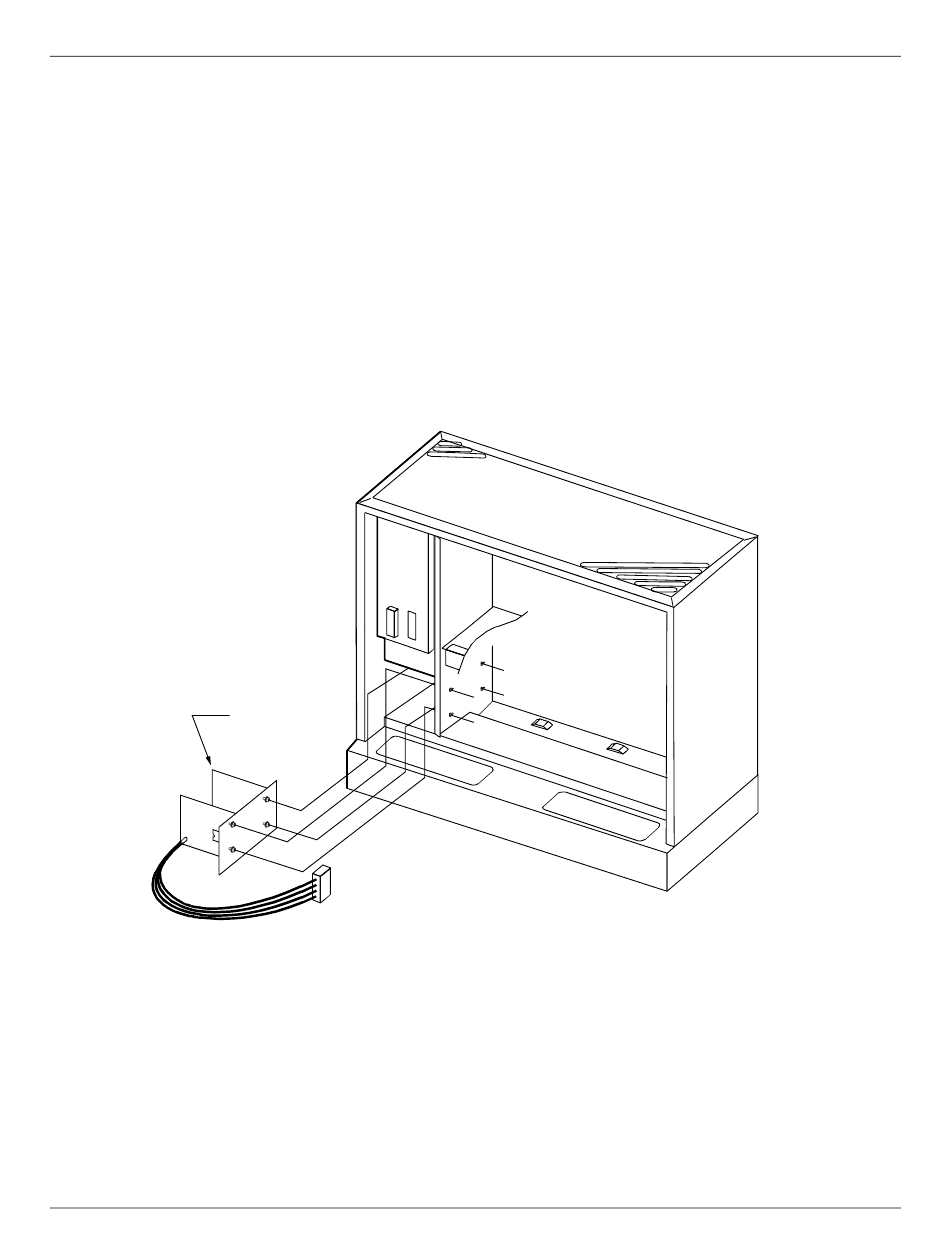

Figure 2-32 Mounting PZ-PW122 into PIM

NEAX2000 IVS

Installation Procedure Manual

ND-70928 (E), Issue 3.0
