CHAPTER 2 INSTALLATION
Cable Running to MDF

Cable Running to External MDF

(1) When using the cable hole of the BASE, bring the MDF cable up to the Main Equipment
through the cable hole of the BASE.
(2) When using the cable hole of the PIM, make the cable hole on the right side of PIM. Then,
bring the MDF cable up to PIM 0 through the cable hole of the BASE, and bring the MDF
cable up to the other PIM through the cable hole (right side) of each PIM.
Page 116

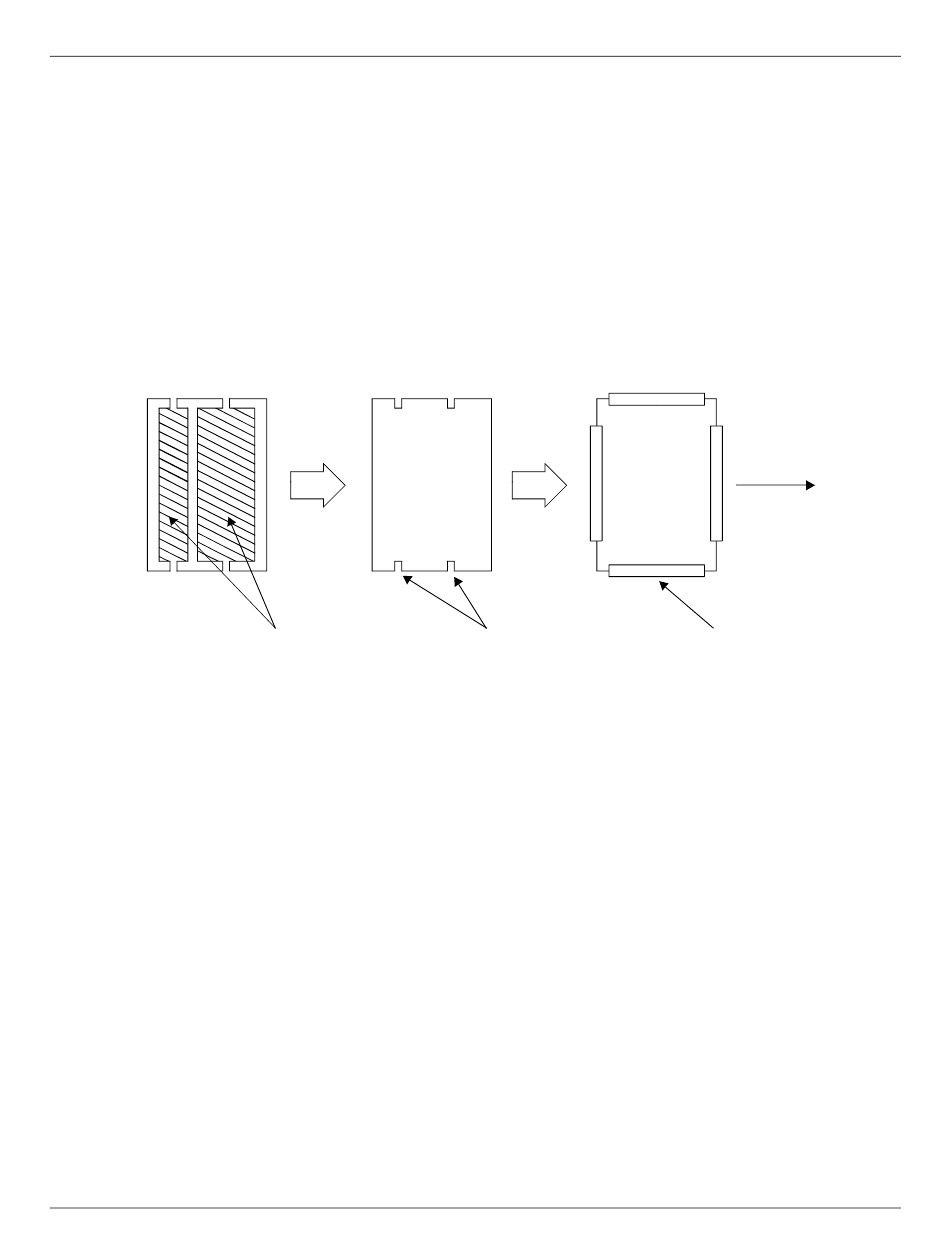

Figure 2-45 Making Cable Hole on PIM

CUT OFF THE PLATE. FILE THE PROJECTIONS.
NEAX2000 IVS
FRONT
PUT IN THE EDGINGS.
2
Installation Procedure Manual
