CHAPTER 2 INSTALLATION

SN610/708/709/712/741 ATTCON (DLC)

STEP 2: Set the switch located inside the console according to the type of headset/handset

connected. Refer to next page.

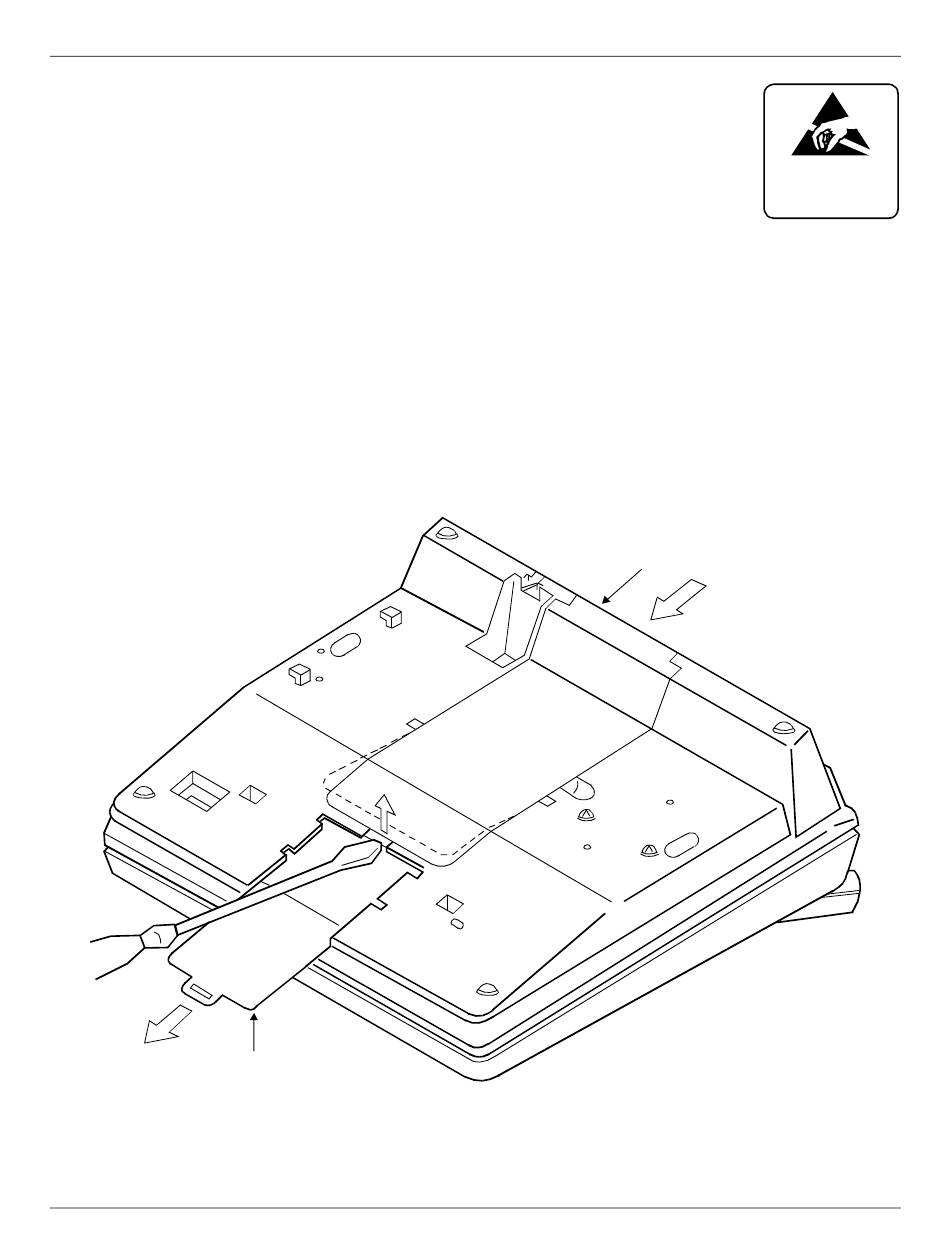

Figure 2-80 Switch Setting on the SN610/708/709/712/741 ATTCON (1 of 2)

• Slide the directory out of the way.

Then insert a flat screw driver's blade into the notched opening and apply light upward

pressure until the access panel is clear of the front lip. At the same time apply pressure

(toward you) at the rear of the pedestal to move the access panel.
