CHAPTER 2 INSTALLATION
Installation of Peripheral Equipment

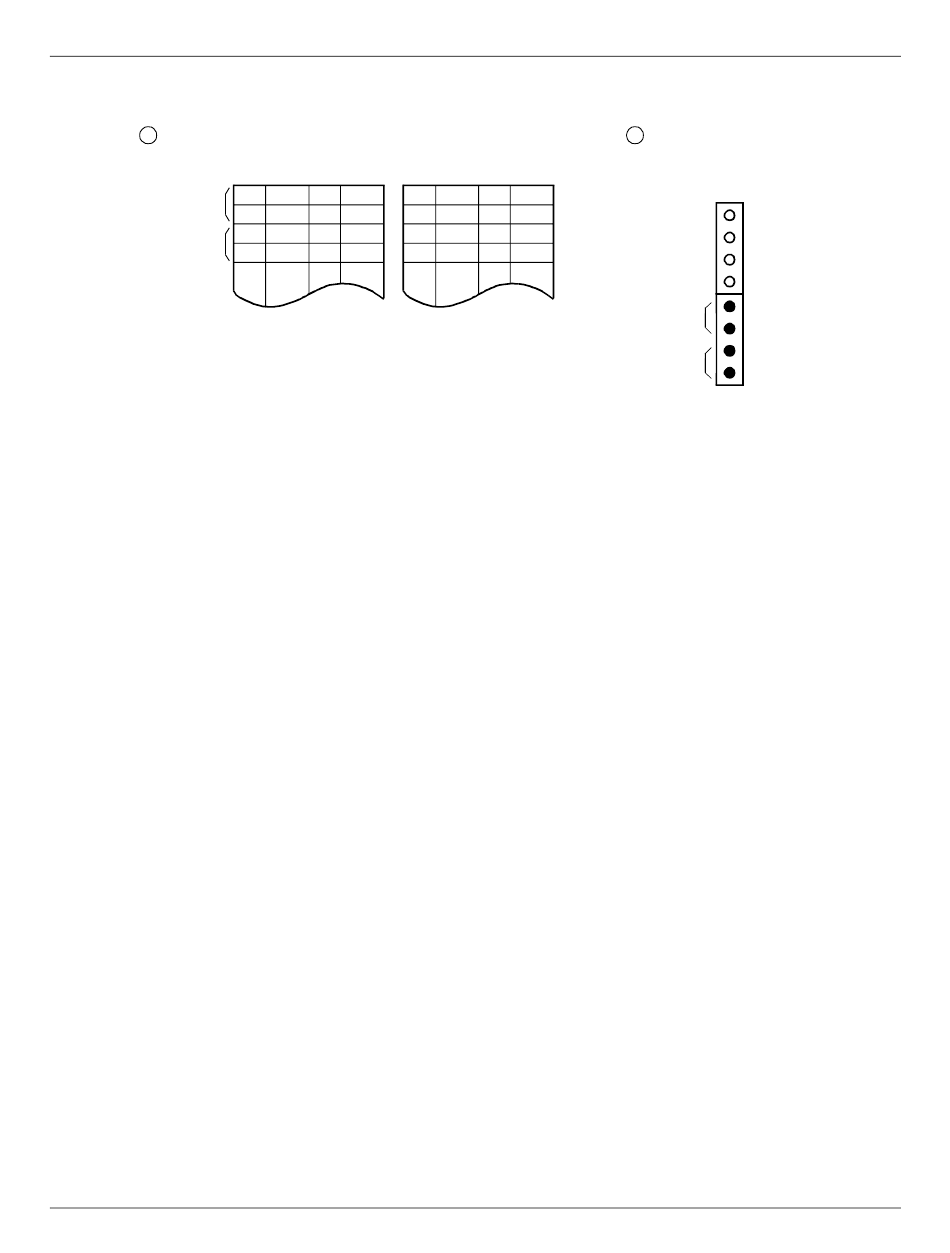

Figure 2-50 MDF Cross Connection for 4W E&M Trunk Card (2 of 2)
1 LTC CONNECTOR
LEN000
LEN001
Page 142
LTC0 (J)
1 TxR0 26 TxT0 26
2 RcvR0 27 RcvT0 27 RcvT0
3 TxR1 28 TxT1 28
4 RcvR1 29 RcvT1 29 RcvT1
LTC0 (P)
TxT0 1 TxR0
2 RcvR0
TxT1 3 TxR1
4 RcvR1
NEAX2000 IVS
2 CN1 CONNECTOR
(FRONT CONNECTOR)
CN1
M1
LEN001
E1
M0
LEN000
E0
2
