Goodrive3000 series medium voltage VFD
Function
Name
code
Dead time of
P01.13
FWD/REV rotation
Shifting between
P01.14
FWD/REV rotation
Set the shifting between FWD/REV rotation of the VFD.

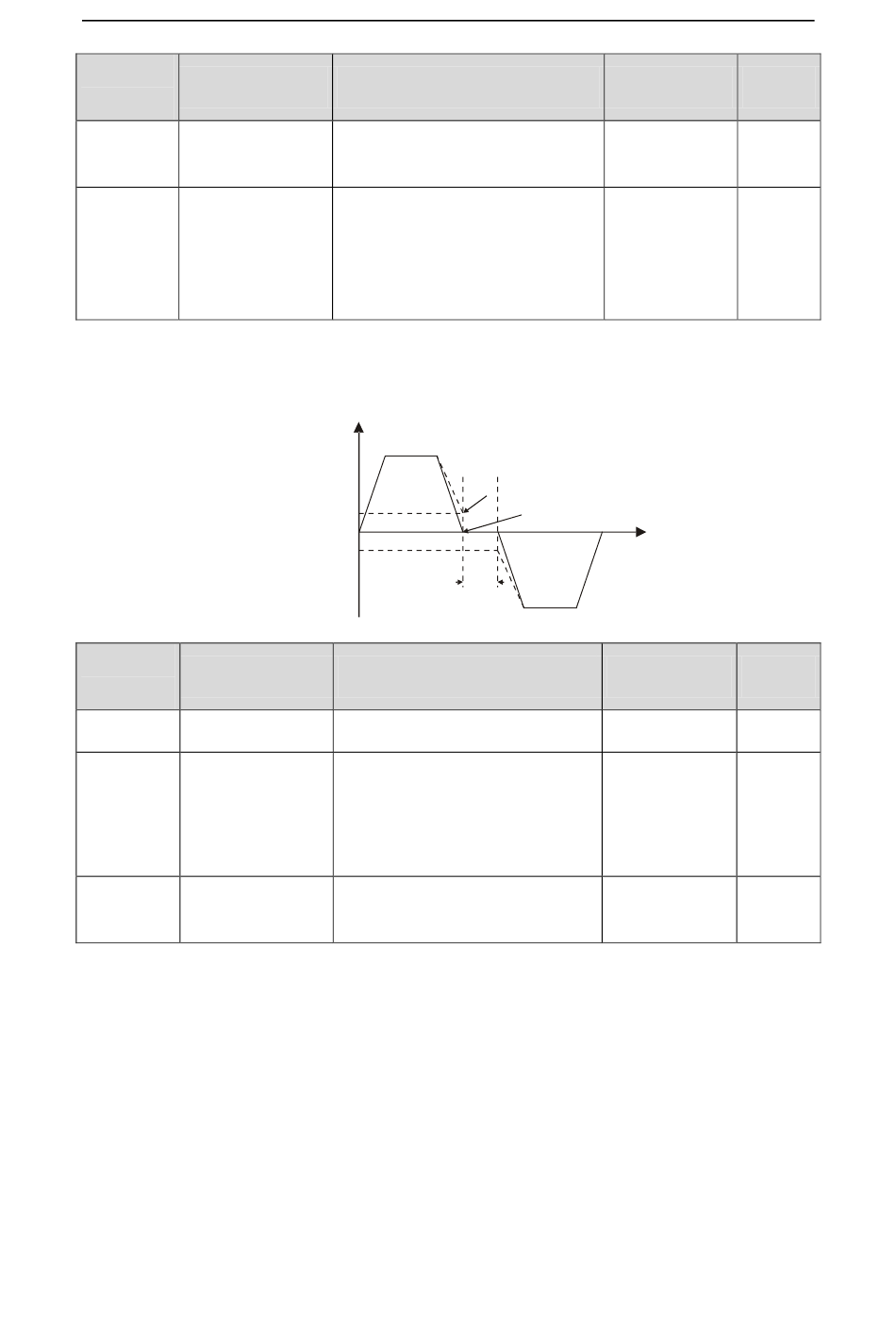

Set the transient time by P01.13 during the process of switching FWD/REV rotation, which is shown in
following figure:
Function
Name
code
P01.15 Stop speed
Detection of stop
P01.16
speed
Detection time of
P01.17
feedback speed
Set the detection of stopping speed of the VFD.
0: Speed set value (delay without stopping) (the only detection method in V/F control)
1: Speed detecting value (only valid under vector control)
In vector control or P01.16=0, when the ramp reference frequency is less than or equal to the set value of
P01.15 and passes delay time of stop speed P01.24, the VFD will coast to stop immediately.
In vector control or P01.16=1, when the actual frequency is less than or equal to the set value of P01.15,
the VFD will coast to stop immediately; when the frequency is larger than the set value, the VFD will stop
after the delay time of P01.17.
Description
0.0–3600.0s
0: Switch after 0 frequency
1: Switch after starting frequency
2: Switch after delay at stop speed
(Reserved)
Output frequency f
Forward
Starting
frequency
Deadzone
time
Description
0.00–100.00Hz
0: Speed set value (delay without
stopping)
1: Speed detecting value (only valid
under vector control)
0.0–100.0s (only valid for P01.16=1)
-87-
Goodrive3000 inverter
Setting range
0.0–3600.0
0–2
Switch over after
starting frequency
Switch over after
zero frequency
Time t
Reverse
Setting range
0.00–100.00
0–1
0.0–100.0
Default
0.0s
0
Default
0.50 Hz
1
0.5s
