Goodrive3000 series medium voltage VFD
P01 group––Start-up and stop control
Function
Name
code
P01.00 Start-up mode
0: Start-up directly: start from the starting frequency P01.01
1: Start-up after DC braking: start the motor from the starting frequency after DC braking (Set the
parameters P01.03 and P01.04). It is suitable in cases where reverse rotation may occur to the small
inertia load during starting.
2: Start-up after rotating speed tracking: automatically track the rotating speed and direction of the motor,
and start the rotating motor smoothly. It is suitable in cases where reverse rotation may occur to the large
inertia load during starting.
Function
Name
code
Starting frequency
P01.01
of direct start-up
The starting frequency of direct start-up refers to the original frequency during the VFD starting. See
detailed information in the function code P01.02 (Retention time of starting frequency).
Function
Name
code
Retention time of
P01.02
starting frequency
Set up proper starting frequency to increase the torque during the motor starting. In the retention time of
starting frequency, the output frequency of the VFD is the starting frequency. Then the VFD runs from the
starting frequency to the set frequency. If the set frequency is lower than the starting frequency, the VFD
will stop running and keep in the stand-by state. The starting frequency is not limited in the lower limit
value.
Description
0: Start-up directly
1: Start-up after DC braking
2: Start-up after rotating speed
tracking
Description
0.00–50.00Hz
Description
0.0–50.0s

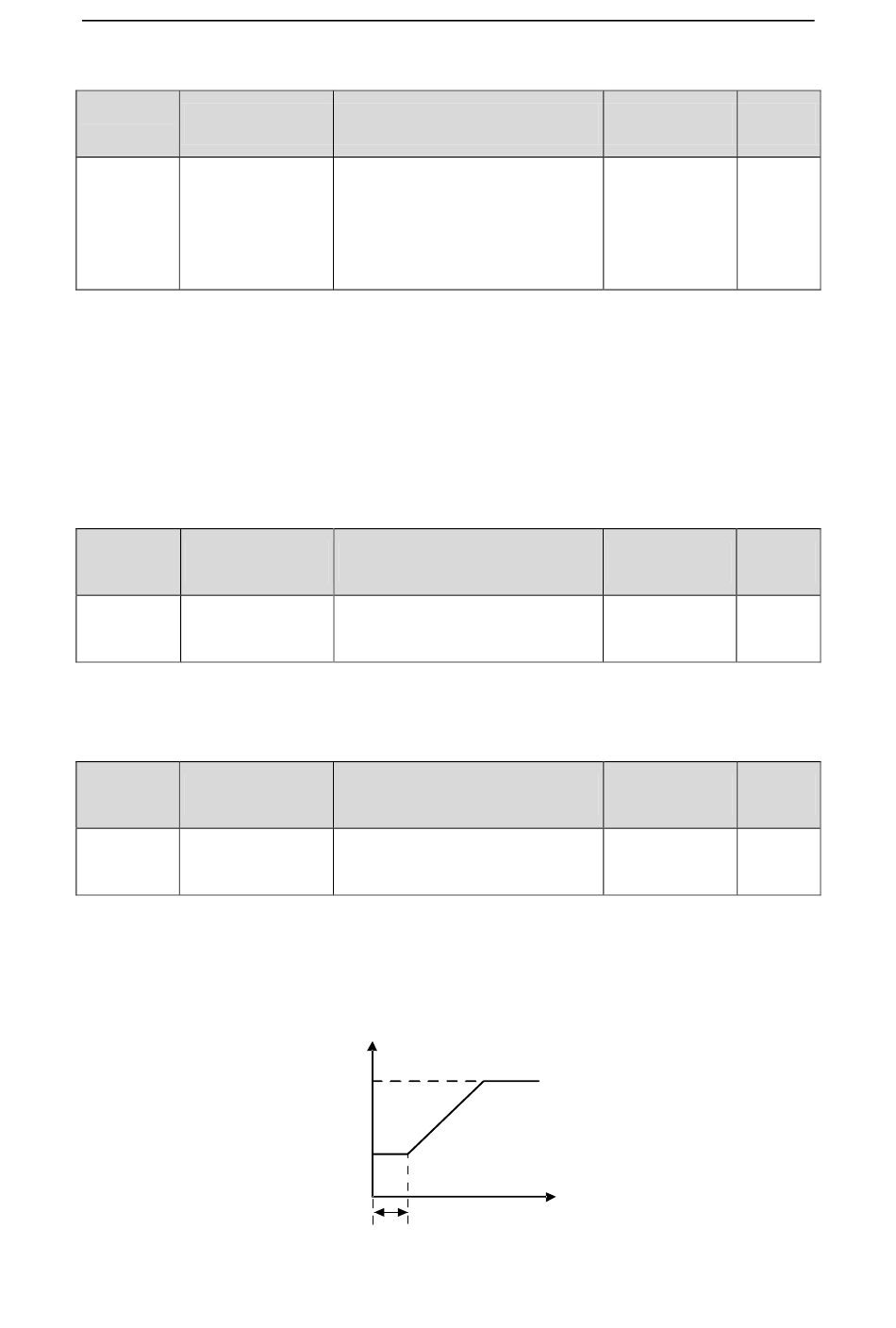

Output frequency
fmax
F1 set by P01.01
T1 set by P01.02
f1
t1
-84-
Goodrive3000 inverter
Setting range
0–2
Setting range
0.00–50.00
Setting range
0.0–50.0
T
Default
0
Default
0.50Hz
Default
0.0s
