During ACC running of the VFD, due to heavy load, the actual increasing ratio of the motor speed is lower
than the increasing ratio of output frequency. The trips of the VFD will be caused by the ACC overcurrent
fault if there are not any measures.
During the running of the VFD, this function will detect the output current and compare it with the limit
level defined in P11.06. If it exceeds the level, the VFD will run at stable frequency during ACC running,
while the VFD will derate to run during the constant running. If it exceeds the level continuously, the
output frequency will keep decreasing to the lower limit. If the detected output current is lower than the
limit level, the VFD will continue ACC running.

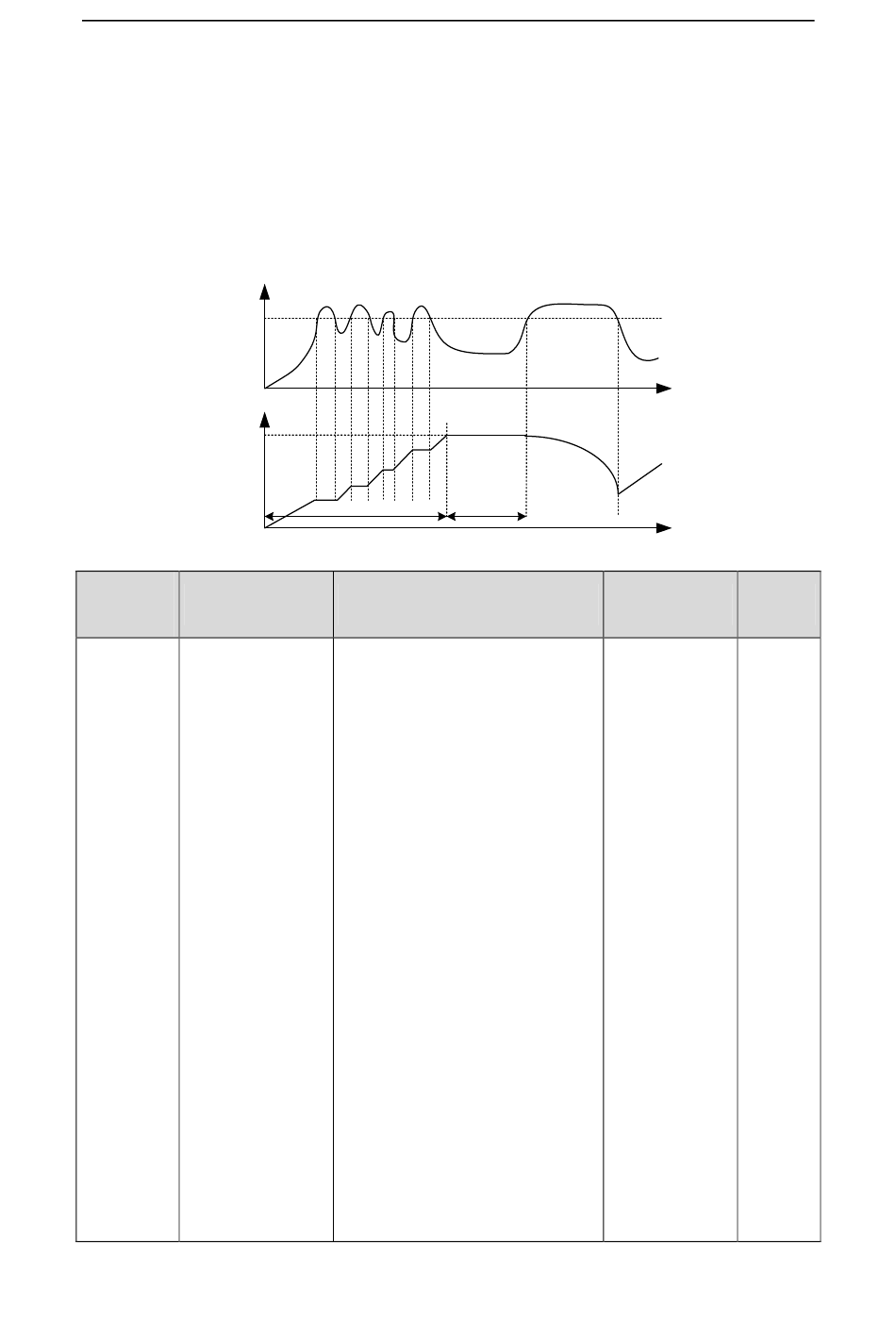

Current
limit point
Output frequency f
Set
frequency
Function
Name
code
VFD/Motor
P11.08 underload and
overload pre-alarm
Output current A
Constant speed
ACC
Description
0x000–0x131
LED ones:
0: Motor underload and overload
pre-alarm, relative to motor rated
current
1: VFD underload and overload
pre-alarm, relative to VFD rated
current
LED tens:
0: VFD continues running after
underload and overload pre-alarm
1: VFD continues running after
underload pre-alarm and stop
running after overload fault
2: VFD continues running after
overload pre-alarm and stop running
after underload fault
3: VFD stops running after underload
and overload alarm
LED hundreds:
0: Detect all the time
1: Detect in constant running
-157-
Goodrive3000 inverter
Time t
Time t
Setting range Default
000–131 0x000
