Brocade Communications Systems MLX Series Hardware Installation Manual page 127

1
2
FIGURE 76
1
2
2. Route cables from slots #3 and #4 up through comb A. Refer to
Brocade MLX Series and NetIron XMR Hardware Installation Guide
53-1003821-01
Upper left quadrant
Side combs (18)

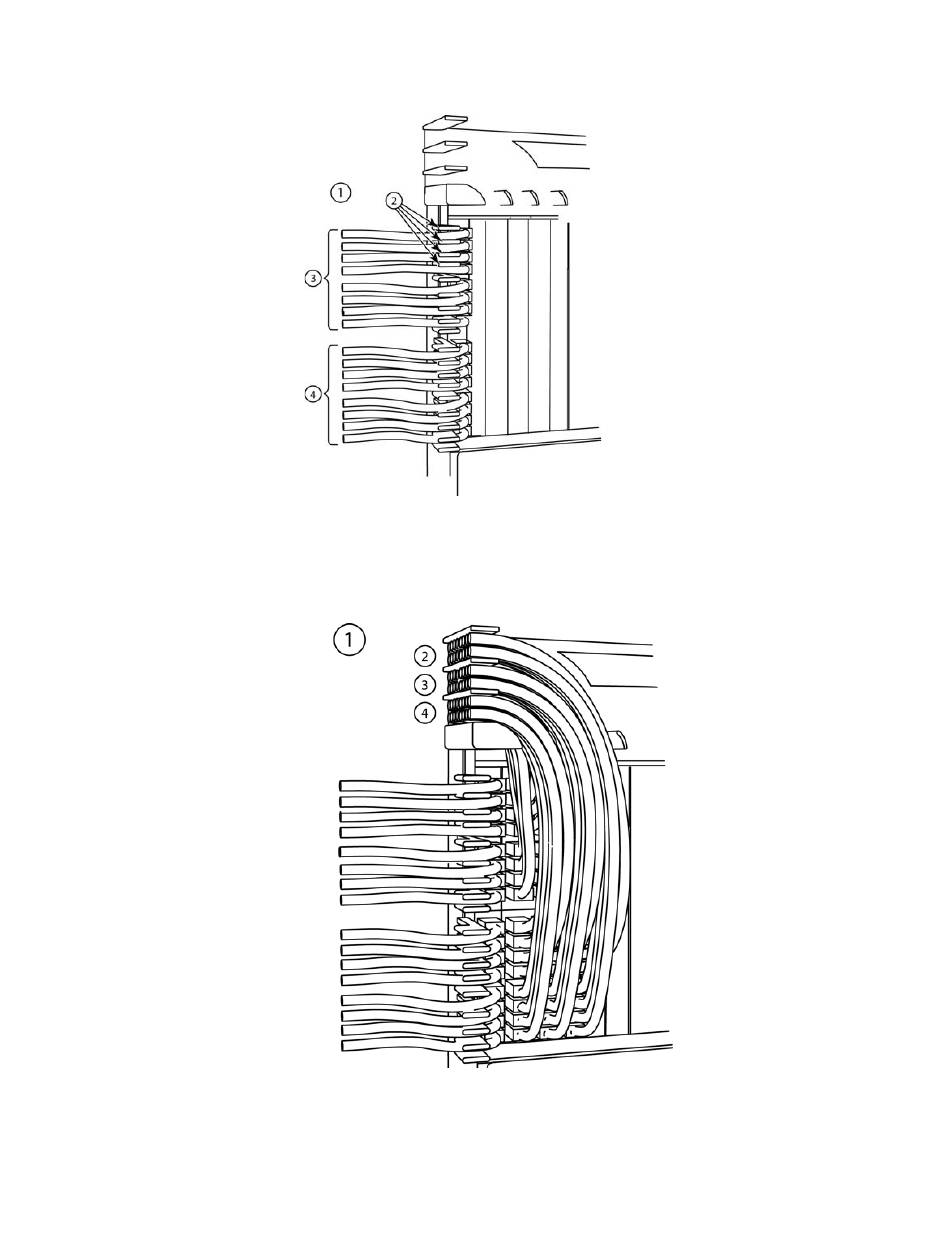

Routing upper-left quadrant cables up
Upper left quadrant
Comb C (slot #7 and #8 cables)
Installing a Brocade MLX-32 router
3 Cables from slot #1
4 Cables from slot #2
3 Comb B (slot #5 and #6 cables)
4 Comb A (slot #3 and #4 cables)
Figure 76.
2
