Programming

3 Programming

3.1 Local Control Panel Operations

®
VLT AutomationDrive FC 360 supports numerical local
control panel (NLCP) LCP 21, graphic local control panel
(GLCP) LCP 102, and blind cover. This chapter describes the
operations with LCP 21 and LCP 102.
NOTICE
The frequency converter can also be programmed from
the MCT-10 Set-up Software on PC via RS485 com-port.
This software can be ordered using code number
130B1000 or downloaded from the Danfoss website:
drives.danfoss.com/downloads/pctools/#/.
3.1.1 Numerical Local Control Panel
The numerical local control panel LCP 21 is divided into 4
functional sections.
A. Numeric display.
B. Menu key.
C. Navigation keys and indicator lights (LEDs).
D. Operation keys and indicator lights (LEDs).
1
A
Setup 1
2
Status
4
B
Menu
9
C
On
OK
6
Warn
Alarm
8
O
Hand
D
Reset
On
13

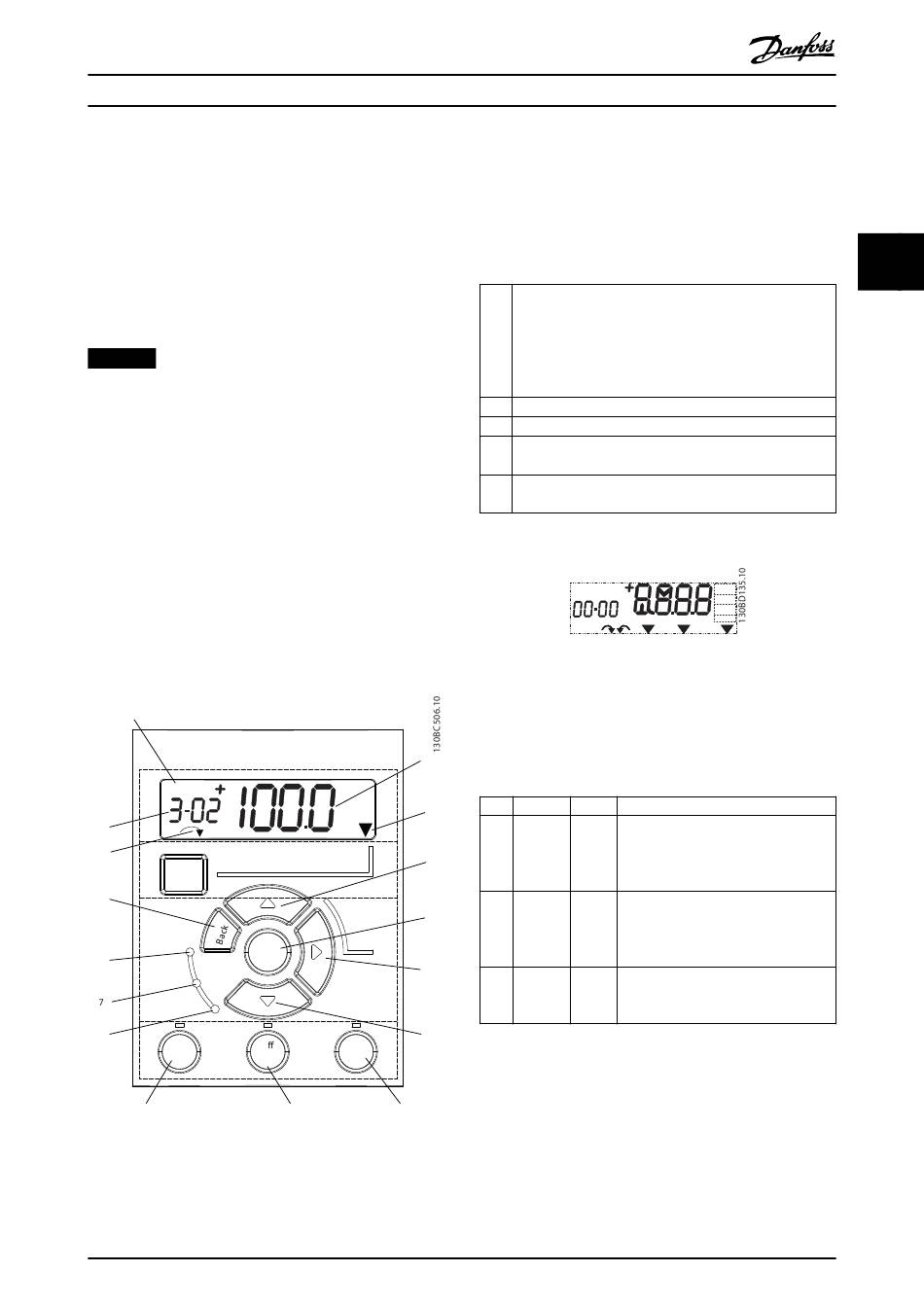

Illustration 3.1 View of the LCP 21
MG06C702
Programming Guide
3
5
Quick Main
10
Menu Menu
11
12
10
Auto
On
14 15
Danfoss A/S © 06/2017 All rights reserved.
A. Numeric display
The LCD display is backlit with 1 numeric line. All data is
shown in the LCP.
1 The set-up number shows the active set-up and the edit
set-up. If the same set-up acts as both active and edit set-
up, only that set-up number is shown (factory setting).
When active and edit set-ups differ, both numbers are
shown in the display (set-up 12). The number flashing
indicates the edit set-up.
2 Parameter number.
3 Parameter value.
4 Motor direction is shown at the bottom left of the display.
A small arrow indicates the direction.
5 The triangle indicates whether the LCP is in Status, Quick
Menu, or Main Menu.
Table 3.1 Legend to Illustration 3.1, Section A
Setup 1234
n1
p5 p4
INDEX
Illustration 3.2 Display Information
B. Menu key
To select between Status, Quick Menu, or Main Menu,
press [Menu].
C. Indicator lights (LEDs) and navigation keys
Indicator Light
ON turns on when the frequency
converter receives power from the
6 On Green
mains voltage, a DC bus terminal, or a
24 V external supply.
When warning conditions are met, the
yellow WARN LED turns on, and text
7 Warn Yellow
appears in the display area identifying
the problem.
A fault condition causes the red alarm
8 Alarm Red LED to flash and an alarm text is
shown.
Table 3.2 Legend to Illustration 3.1, Indicator Lights (LEDs)
AHP
VkW
srpm
Hz%
n2 n3
p3 p2 p1
Function
13
3 3
