Programming
Array parameters function as follows:
5 x
1
3 3 OK
2
OK
OK 4

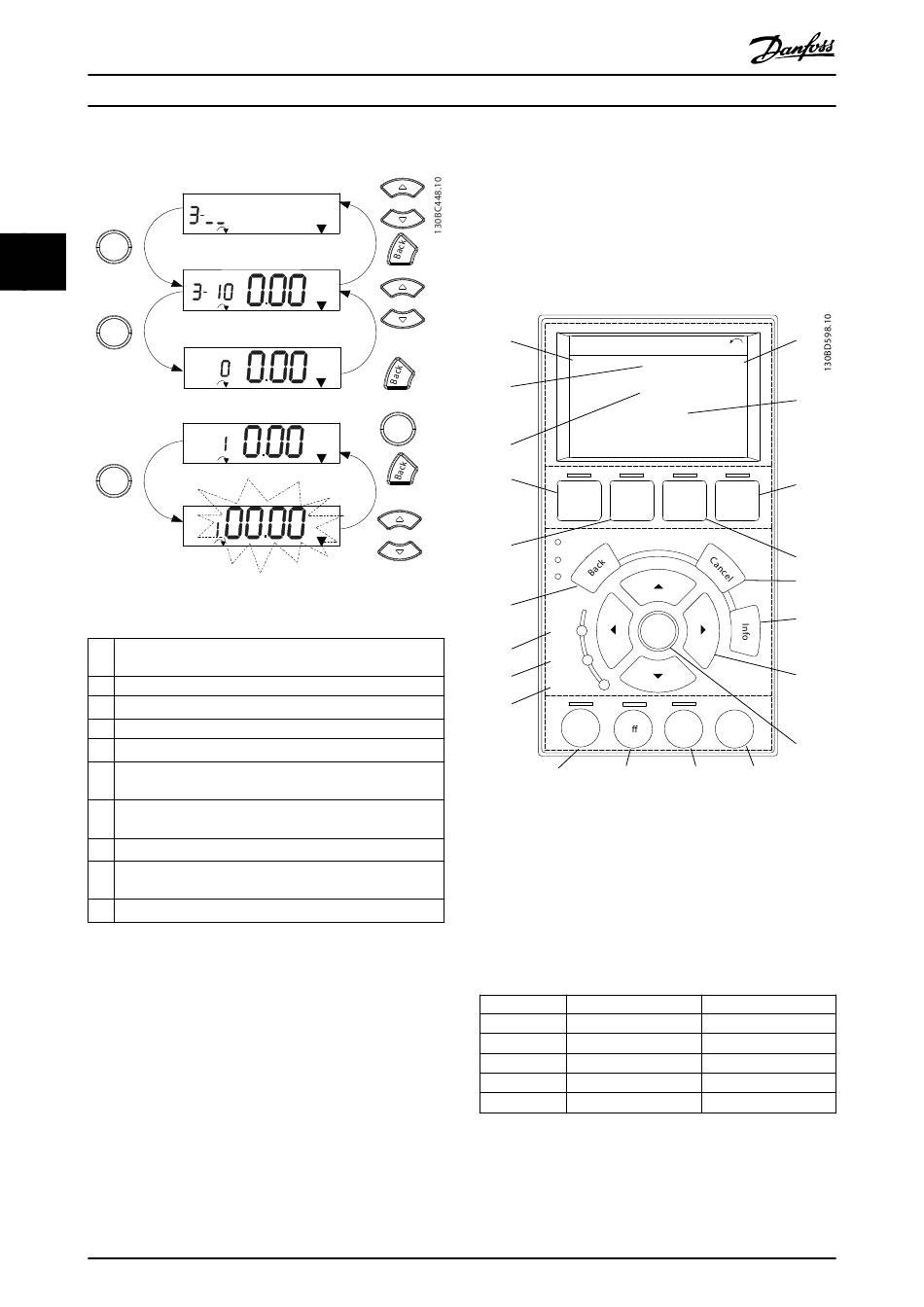

Illustration 3.8 Main Menu Interactions - Array Parameters
1 [OK]: Shows parameter numbers and the value in the first
index.
2 [OK]: Index can be selected.
▲ ▼
3
[ ][ ]: Select index.
4 [OK]: Value can be edited.
▲ ▼
5
[ ][ ]: Change parameter value (flashing).
6 [Back]: Cancels changes.
[OK]: Accepts changes.
7 [Back]: Cancels editing index, a new parameter can be
selected.
▲ ▼
8
[ ][ ]: Select parameter within the group.
9 [Back]: Removes parameter index value and shows the
parameter group.
▲ ▼
10
[ ][ ]: Select group.
Table 3.7 Changing Values in Array Parameters
3.1.6 Graphical Local Control Panel
The graphical local control panel LCP 102 has a larger
display area, which shows more information than LCP 21.
LCP 102 supports English, Chinese, and Portuguese
displays.
18
VLT
10
Setup 1
Setup 1
8
%
INDEX
Setup 1
% 7
INDEX
Setup 1
%
6
INDEX
Setup 1
%
5
INDEX
Danfoss A/S © 06/2017 All rights reserved.
®
AutomationDrive FC 360
The GLCP is divided into 4 functional groups (see
Illustration 3.9).
A. Display area.
B. Display menu keys.
9
C. Navigation keys and indicator lights (LEDs).
D. Operation keys and reset.
1
2
OK
4
6
7
10
15
16
17
18
Illustration 3.9 Graphic Local Control Panel (GLCP)
A. Display area
The display area is activated when the frequency converter
receives power from the mains voltage or a DC bus
terminal.
The information shown on the LCP can be customized for
user applications. Select options in the Quick Menu Q3-13
Display Settings.
Display
1
2
3
4
5
Table 3.8 Legend to Illustration 3.9, Display Area
Status
799 RPM 7.83 A 36.4 kW
0.000
A
53.2 %
Auto Remote Ramping
Quick Main
Status
B
Menu Menu
C
On OK
Warn.
Alarm
D Hand Auto
Reset
O
On On
19 20
Parameter number
0-20 [1602] Reference [%]
0-21 [1614] Motor Current
0-22 [1610] Power [kW]
0-23
[1502] kWh Counter
0-24
3
1(1)
5
9
Alarm
Log
8
11
12
13
14
21
Default setting
[1613] Frequency
MG06C702
