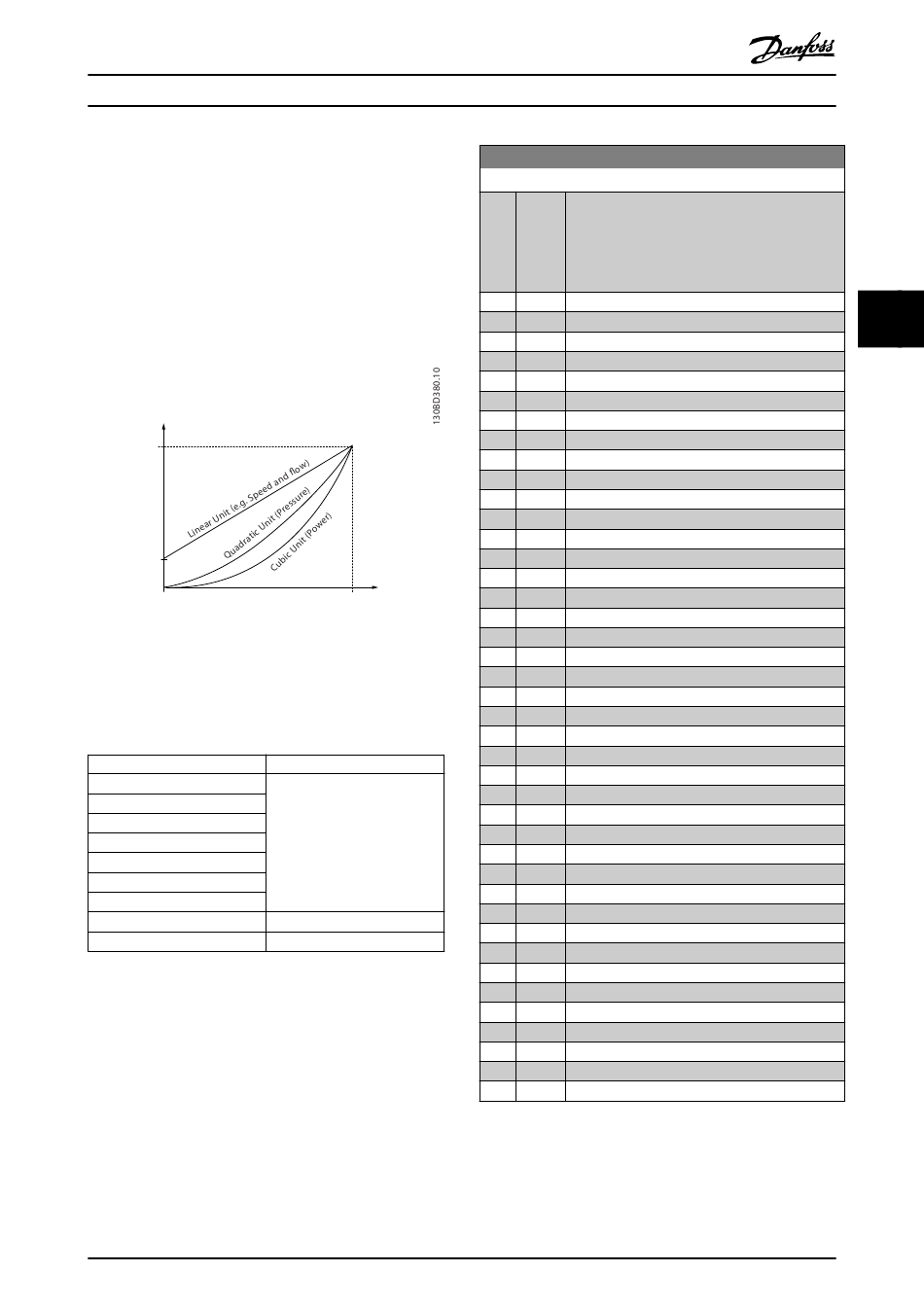

Danfoss VLT AutomationDrive FC 360 Programming Manual page 33

Parameter Descriptions
4.1.4 0-3* LCP Custom Readout
It is possible to customise the display elements in the LCP.
Custom readout
The calculated value to be shown is based on settings in
parameter 0-30 Custom Readout Unit,
parameter 0-31 Custom Readout Min Value (linear only),
parameter 0-32 Custom Readout Max Value,
parameter 4-14 Motor Speed High Limit [Hz], and actual
speed.
Custom Readout (Value)
P 16-09
Custom Readout
Unit P 0-30
Max value
P 0-32
Min value
Liniar
units only
P 0-31
0
Illustration 4.1 Custom Readout
The relation depends on the type of unit selected in
parameter 0-30 Custom Readout Unit:
Unit type
Dimensionless
Speed
Flow, volume
Flow, mass
Velocity
Length
Temperature
Pressure
Power
Table 4.1 Relation between Unit Type and Speed
MG06C702
Programming Guide
Motor Speed
Motor Speed
High limit
P 4-14 (Hz)
Speed relation
Linear
Quadratic
Cubic
Danfoss A/S © 06/2017 All rights reserved.
0-30 Custom Readout Unit
Option: Function:
Set a value to be shown in the LCP. The value has
a linear, squared, or cubed relation to speed. This
relation depends on the unit selected. See
Table 4.1. The actual calculated valued can be
read in parameter 16-09 Custom Readout.
[0] None
[1] %
*
[5] PPM
[10] 1/min
[11] RPM
[12] Pulse/s
[20] l/s
[21] l/min
[22] l/h
[23] m³/s
[24] m³/min
[25] m³/h
[30] kg/s
[31] kg/min
[32] kg/h
[33] t/min
[34] t/h
[40] m/s
[41] m/min
[45] m
[60] °C
[70] mbar
[71] bar
[72] Pa
[73] kPa
[74] m WG
[80] kW
[120] GPM
[121] gal/s
[122] gal/min
[123] gal/h
[124] CFM
[127] ft³/h
[140] ft/s
[141] ft/min
[160] °F
[170] psi
[171] lb/in2
[172] in WG
[173] ft WG
[180] HP
4 4
31
