Parameter Descriptions
12 18 19 27

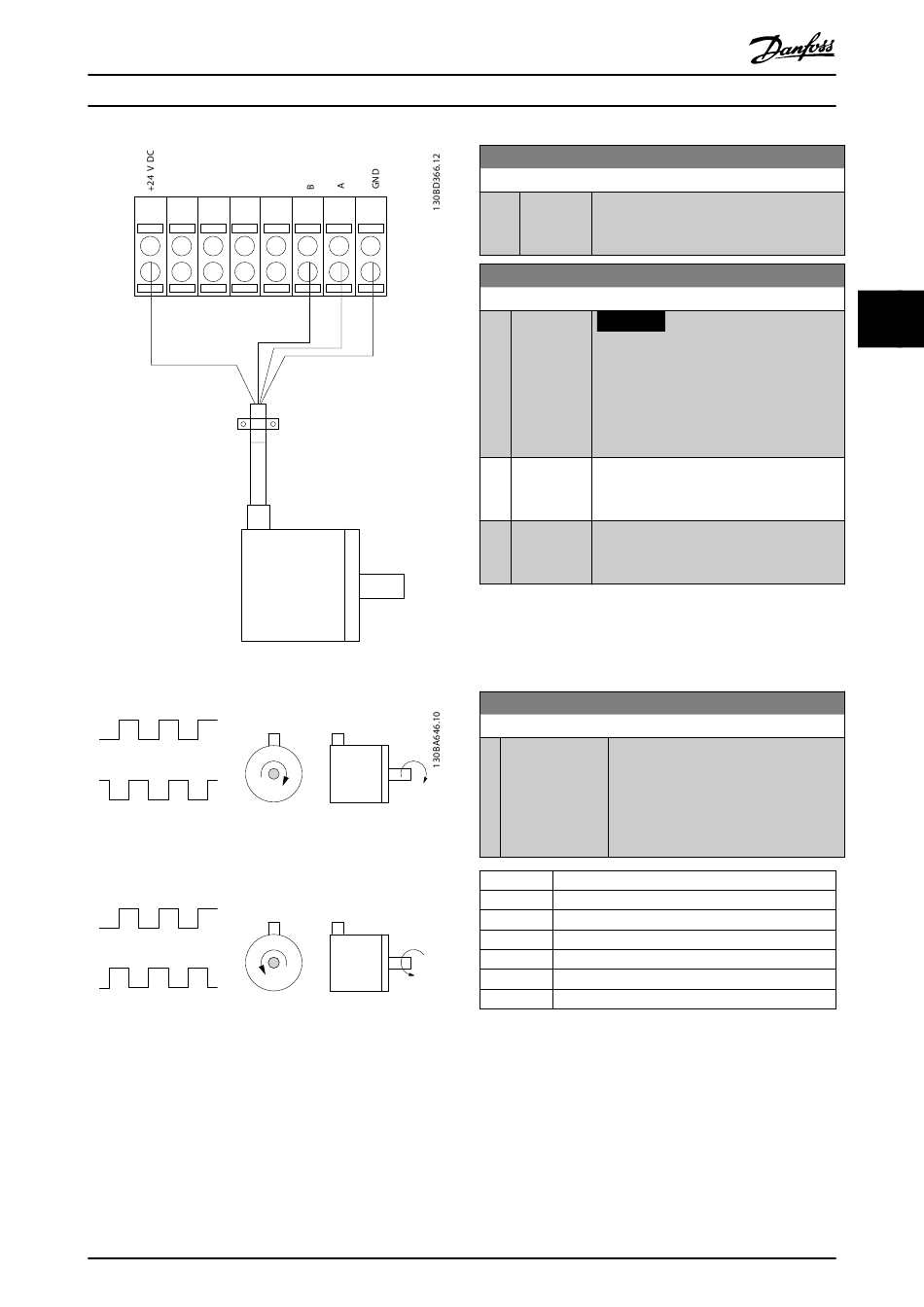

Illustration 4.19 24 V or 10–30 V Encoder Connection
A
B
A
B
Illustration 4.20 Encoder Rotation Direction
MG06C702
Programming Guide
29 32 33 20
CW
CCW
Danfoss A/S © 06/2017 All rights reserved.
5-70 Term 32/33 Pulses Per Revolution
Range: Function:
1024 [1 - 4096 ] Set the encoder pulses per revolution on the
*
motor shaft. Read the correct value from the
encoder.
5-71 Term 32/33 Encoder Direction
Option: Function:
NOTICE
This parameter cannot be adjusted
while the motor is running.
Change the detected encoder rotation
direction without changing the wiring to the
encoder.
[0] Clockwise
Set channel A 90° (electrical degrees) behind
*
channel B after clockwise rotation of the
encoder shaft.
[1] Counter Set channel A 90° (electrical degrees) ahead
clockwise of channel B after clockwise rotation of the
encoder shaft.
4.6.7 5-9* Bus Controlled
This parameter group selects digital and relay outputs via a
fieldbus setting.
5-90 Digital & Relay Bus Control
Range: Function:
0 [0 - 0xFFFFFFFF ] This parameter holds the state of the bus-
*
controlled digital outputs and relays.
A logical 1 indicates that the output is
high or active.
A logical 0 indicates that the output is
low or inactive.
Bit 0 Digital Output Terminal 27
Bit 1 Digital Output Terminal 29
Bit 2–3 Reserved
Bit 4 Relay 1 output terminal
Bit 6–23 Reserved
Bit 24 Terminal 42 digital output
Bit 26–31 Reserved
Table 4.7 Bit Functions
